SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Srm Gear Housing, Shield, Tools Parts Diagram

String Trimmer (Type 1/1E)

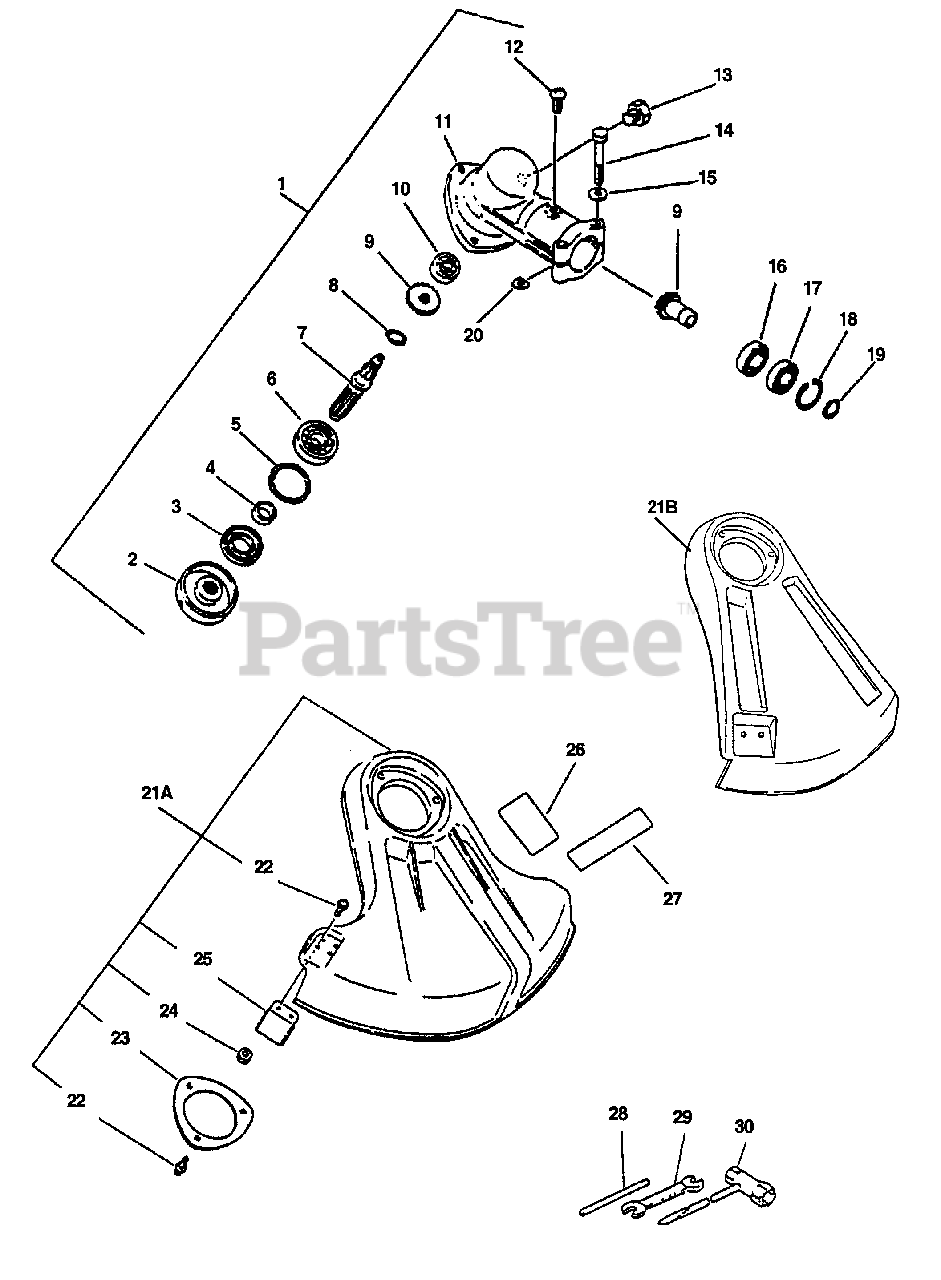

Srm Gear Housing, Shield, Tools Parts Diagram

  • Title

1

Echo 61040247731

Housing asy, gear
(Superseded to 61040247732)

Note: Includes items 2 - 20

$98.99

$

Usually ships in 2-4 days

0

2

Echo 61031347731

Plate, adapter (u)

$14.99

$

In Stock, only 2 left!

0

3

Echo 61041307130

Oilseal

$6.99

$

In Stock, only 2 left!

0

4

Echo 61031507130

Spacer

$4.49

$

In Stock, only 2 left!

0

5

Echo 90070200032

Circlip 32

$2.49

$

In Stock, only 2 left!

0

6

Echo 90081006201

Bearing, ball 6201

$8.49

$

In Stock, only 2 left!

0

7

Echo 61036008931

Shaft, p.t.o.
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

8

Echo 90070600010

Circlip 10

$1.49

$

In Stock, Qty 20+

0

9

Echo 61030044830

Gear set

$106.99

$

Usually ships in 2-4 days

0

10

Echo 90080000609

Bearing, ball 609

$11.99

$

In Stock, Qty 5

0

11

Echo 61046027430

Housing, gear
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

12

Echo 90024205010

Screw 5x10

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010008008

Bolt 8x8

$0.99

$

In Stock, Qty 10

0

14

Echo 90010005035

Bolt 5x35

$0.99

$

In Stock, Qty 7

0

15

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 90085506900

Bearing, ball 6900

$21.99

$

In Stock, only 2 left!

0

17

Echo 90085806900

Bearing, ball 6900z

$27.99

$

In Stock, only 2 left!

0

18

Echo 90070200022

Circlip22

$2.49

$

In Stock, Qty 13

0

19

Echo 90070600012

Circlip 12

$1.49

$

In Stock, Qty 20+

0

20

Echo 61023904130

Washer, shim

$0.99

$

In Stock, Qty 20+

0

21A

Echo 69900040931

Shield asy (s/n 001001 - 519600)
(Superseded to 69900440931)

Note: Includes items 22 - 25

$30.99

$

In Stock, only 3 left!

0

21B

Echo P021001260

Shield asy (s/n519601 & up)
(Superseded to P021001391)

Note: Includes items 22, 24 & 25

$17.99

$

In Stock, Qty 20+

0

22

Echo 90024205016

Screw 5x16

$0.99

$

In Stock, only 4 left!

0

23

Echo 69901840830

Bracket, shield
(Superseded to C552000110)

$2.99

$

In Stock, only 3 left!

0

24

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 69901644330

Cutter
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

26

Echo 89016844830

Label, caution

$3.99

$

Usually ships in 2-4 days

0

27

Echo 89011848830

Label, echo
(Superseded to X502000320)

$0.99

$

In Stock, Qty 6

0

28

Echo 89751801131

Locking tool

$

$

Not available

29

Echo 89511200330

Spanner 8x10

$0.99

$

In Stock, Qty 6

0

30

Echo 89541008030

Wrench, w/screwdriver
(Superseded to X602000020)

$4.49

$

In Stock, Qty 7

0
