SRM-2100 - Echo String Trimmer (Type 1E) Ignition, Fan Case Parts Diagram

String Trimmer (Type 1E)

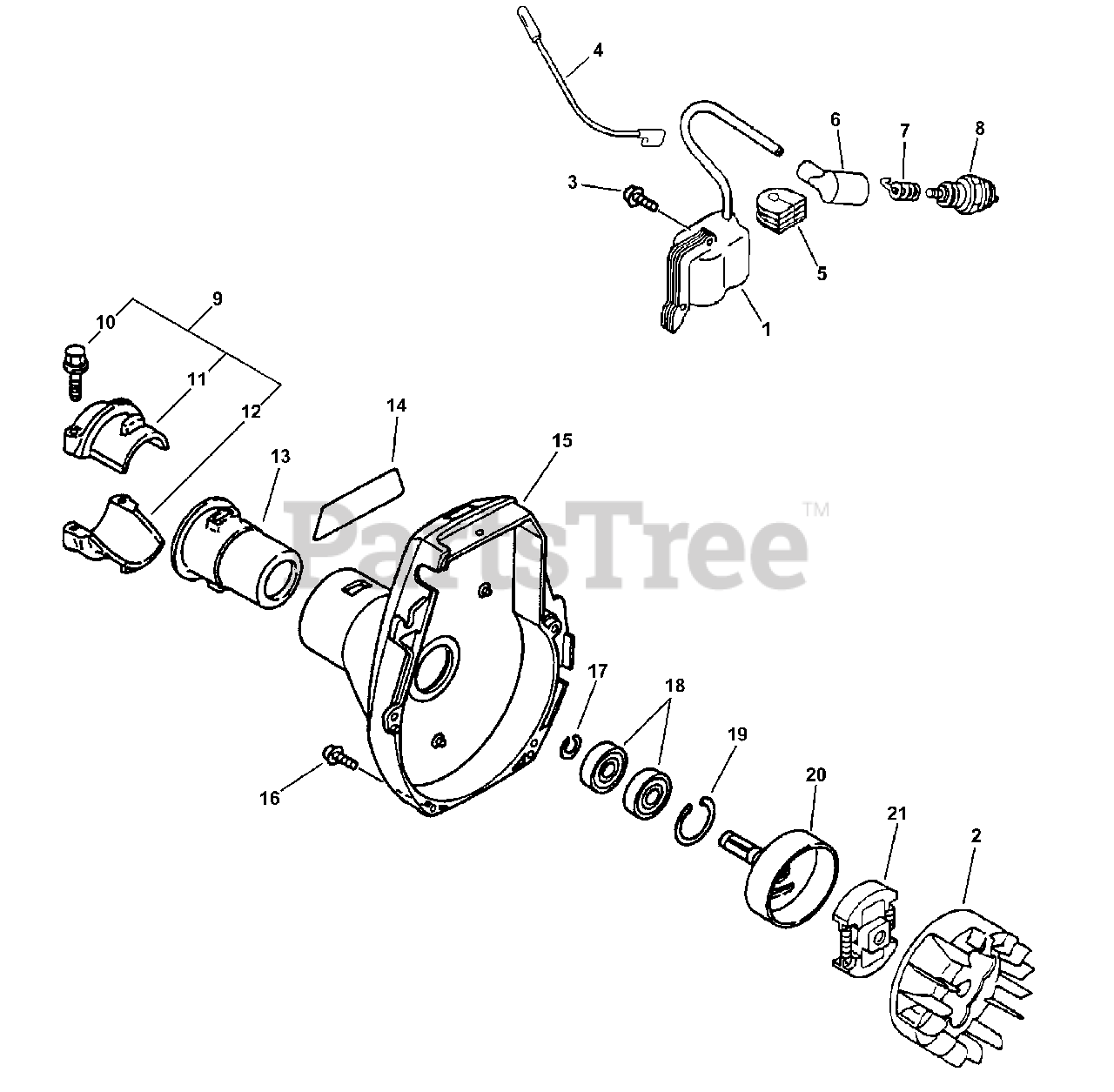

Ignition, Fan Case Parts Diagram

  • Title

1

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E - S/N 001001-008042

$133.99

$

In Stock, only 1 left!

0

2

Echo 15680144731

FLYWHEEL

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E - S/N 001001-008042

$105.99

$

Usually ships in 2-4 days

0

1

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

Note: SRM-2100 TYPE 1E - S/N 008043 & UP & SRM-2110 TYPE 1E - S/N 501001 & UP

$104.99

$

Usually ships in 2-4 days

0

2

Echo 15680109660

FLYWHEEL

Note: SRM-2100 TYPE 1E - S/N 008043 & UP & SRM-2110 TYPE 1E - S/N 501001 & UP

$75.99

$

Usually ships in 2-4 days

0

3

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$3.99

$

In Stock, Qty 7

0

5

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 3 left!

0

6

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

7

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

8

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

9

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: Includes ITEMS 10-12

$18.99

$

Usually ships in 2-4 days

0

10

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

11

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

12

Echo A575000100

CLAMP, MAIN PIPE - LOWER

$8.49

$

Usually ships in 2-4 days

0

13

Echo 61091055230

CUSHION

$7.49

$

In Stock, only 2 left!

0

14

Echo 89011554130

LABEL - MODEL SRM-2100

$3.49

$

Usually ships in 2-4 days

0

14

Echo 89011254130

LABEL - MODEL SRM-2110

$2.99

$

Usually ships in 2-4 days

0

15

Echo 10150352131

CASE, FAN

$65.99

$

In Stock, only 1 left!

0

16

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

17

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

18

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 14

0

19

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

20

Echo 17500548931

DRUM, CLUTCH

$13.99

$

In Stock, Qty 6

0

21

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

$27.99

$

In Stock, Qty 6

0
