SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Handle, Stop Switch, Throttle Cable, Driveshaft Parts Diagram

String Trimmer (Type 1)

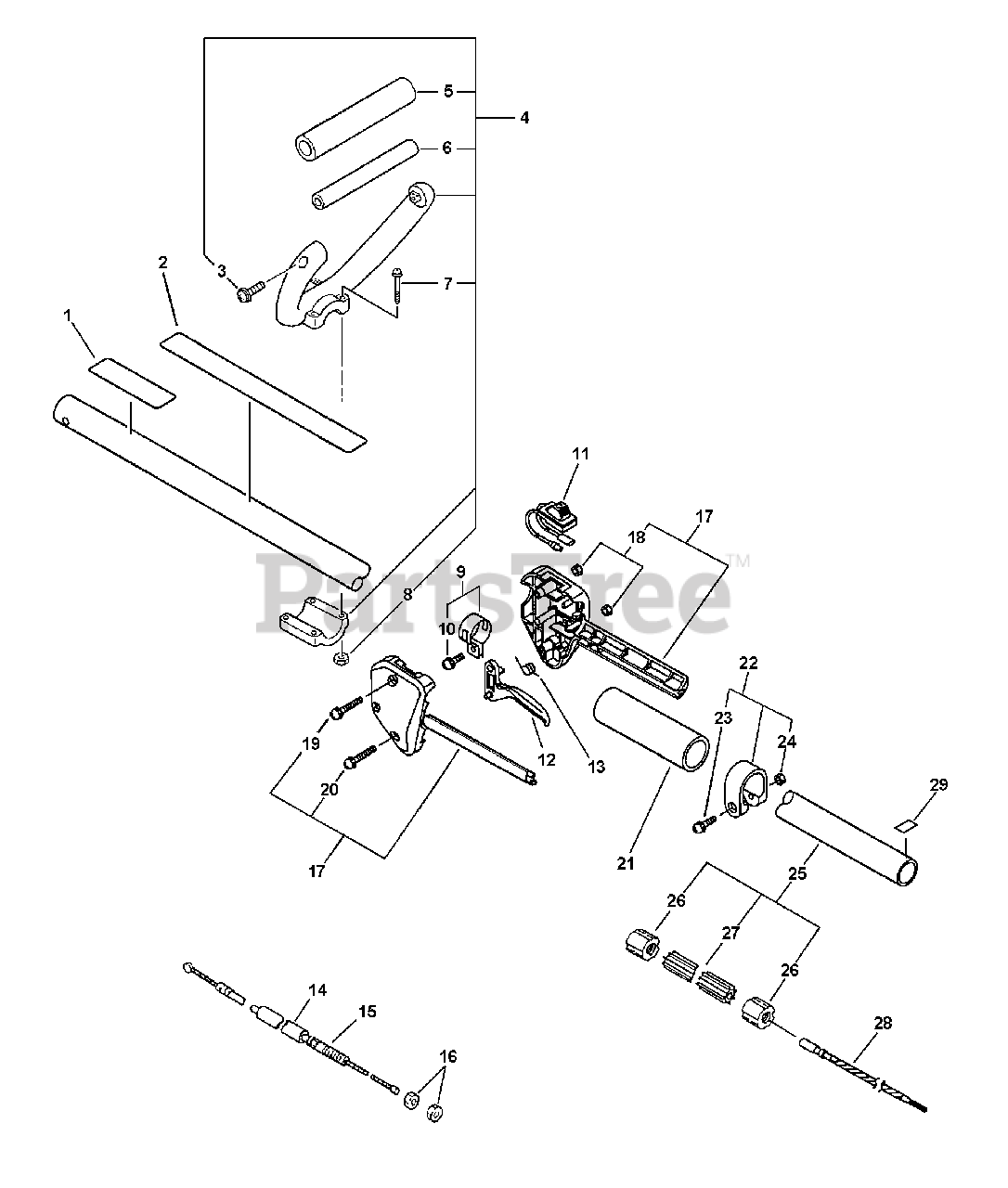

Handle, Stop Switch, Throttle Cable, Driveshaft Parts Diagram

  • Title

1

Echo 89016044430

Label, Caution
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days

0

2

Echo 89016047630

Label, Caution
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

3

Echo 90024605030

Screw 5x30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 35120152130

Loop Handle Asy

Note: Includes Items 5-8

$65.99

$

In Stock, only 1 left!

0

5

Echo 35121351730

Grip, Front Handle

$8.49

$

In Stock, Qty 6

0

6

Echo 35121051730

Handle, Front

$4.49

$

Usually ships in 2-4 days

0

7

Echo 90024205035

Screw 5x35

$0.99

$

In Stock, Qty 20+

0

8

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 30120029430

Band
(Superseded to 30120029431)

Note: Includes Item 10

$9.49

$

In Stock, only 1 left!

0

10

Echo 90024205014

Screw 5x14

$0.99

$

In Stock, Qty 20+

0

11

Echo 16340049230

Switch, Ignition
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 7

0

12

Echo 17801052130

Contorl, Throttle

$3.49

$

In Stock, Qty 20+

0

13

Echo 17804342230

Spring, Throttle Return

$0.99

$

In Stock, Qty 20+

0

14

Echo 17812706960

Tube

$2.49

$

In Stock, only 3 left!

0

15

Echo 17800144430

Cable, Throttle

$10.99

$

In Stock, only 1 left!

0

16

Echo 90050200006

Nut 6

$0.99

$

In Stock, only 3 left!

0

17

Echo 17800352130

Throttle Bracket Set

Note: Includes Items 18-20

$4.99

$

In Stock, only 1 left!

0

18

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205035

Screw 5x35

$0.99

$

In Stock, Qty 20+

0

20

Echo 90024205025

Screw 5x25

$0.99

$

In Stock, Qty 20+

0

21

Echo 35121352130

Grip, Front Handle

$9.49

$

In Stock, only 2 left!

0

22

Echo 61027252130

Band 25

Note: Includes Items 23-24

$9.99

$

In Stock, only 1 left!

0

23

Echo 90024205030

Screw 5x30

$0.99

$

In Stock, only 2 left!

0

24

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 61060944730

Driveshaft Housing Asy

Note: Includes Items 26-27

$51.99

$

Usually ships in 2-4 days

0

26

Echo 61024644730

Fixture, Liner

$1.49

$

In Stock, Qty 20+

0

27

Echo 61021744730

Liner, Flexible
(Superseded to C507000260)

$25.99

$

Usually ships in 2-4 days

0

28

Echo 61001344730

Shaft, Flexible
(Superseded to C506000390)

$16.99

$

In Stock, only 3 left!

0

29

Echo 89015204930

Label, Location

$0.99

$

In Stock, Qty 9

0
