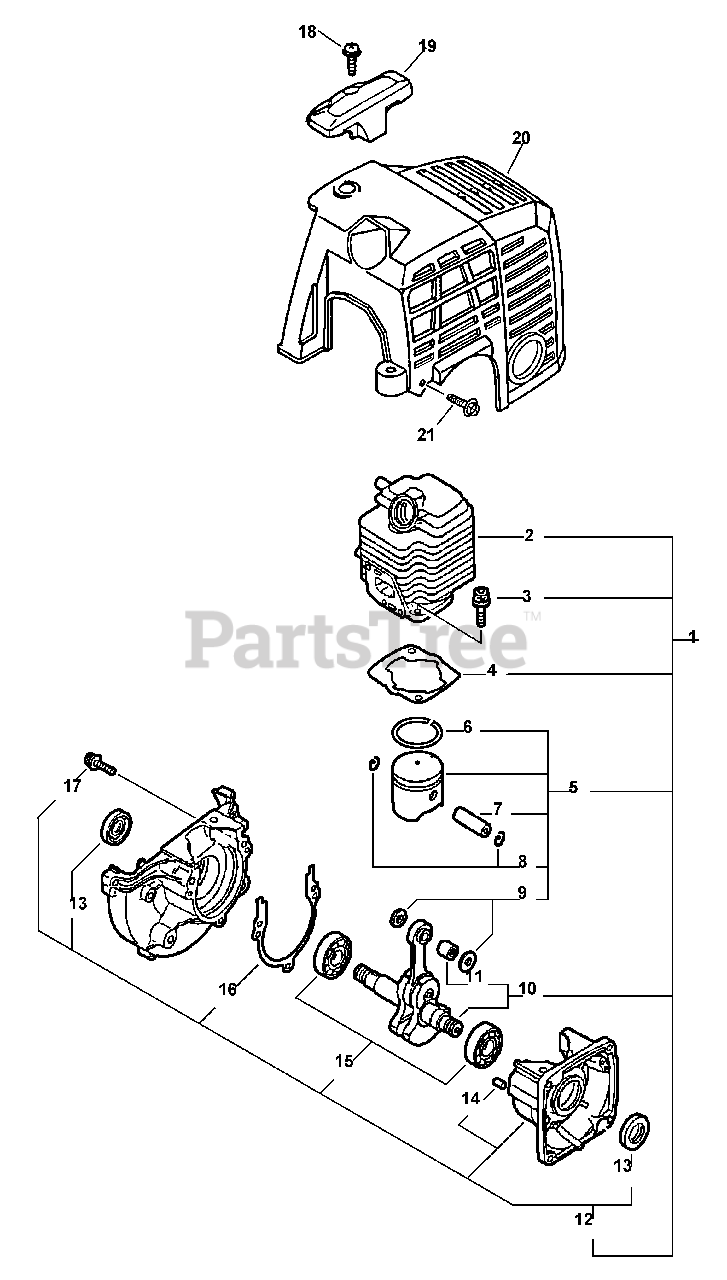

SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Engine, Crankcase, Cylinder Cover Parts Diagram

String Trimmer (Type 1)

Engine, Crankcase, Cylinder Cover Parts Diagram

  • Title

Optional Engine Cover

$

$

Not available

1

Echo SB1026

Short Block
(Superseded to Discontinued)

Note: Includes Items 2-17

$

$

Not available

2

Echo 10101147630

Cylinder
(Superseded to 10101148730)

$126.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

Bolt 5x22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101044332

Gasket, Cylinder Base

Note: Contained In Gasket Kit 88900042033

$3.99

$

In Stock, only 4 left!

0

5

Echo 10000044331

Piston Kit

Note: Includes Items

$65.99

$

Usually ships in 2-4 days

0

6

Echo A101000000

Ring, Piston

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001311520

Pin, Piston

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

Circlip, Piston Pin

$0.99

$

In Stock, Qty 7

0

9

Echo 10001411520

Spacer, Piston Pin

$3.49

$

In Stock, only 3 left!

0

10

Echo 10010044733

Crankshaft Asy
(Superseded to A011000101)

Note: Includes Item 11

$155.99

$

In Stock, only 1 left!

0

11

Echo 10001251230

Bearing, Needle
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

12

Echo 10020451030

Crankcase Kit
(Superseded to 10020451031)

Note: Includes Items 13-17

$131.99

$

Usually ships in 2-4 days

0

13

Echo 10021242030

Oilseal
(Superseded to 10021242031)

$6.49

$

In Stock, Qty 6

0

14

Echo 10021503930

Pin, Dowel
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

15

Echo 90081036201

Bearing, Ball 6201
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

16

Echo 10024242030

Gasket, Crankcase

Note: Contained In Gasket Kit 88900042033

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

Screw 5x28

$1.99

$

In Stock, Qty 19

0

18

Echo 90023805016

Screw 5x16

$0.99

$

In Stock, Qty 20+

0

19

Echo 15991254130

Guard, Top

$7.99

$

In Stock, Qty 7

0

20

Echo 10151448930

Cover, Cylinder

$11.99

$

In Stock, Qty 10

0

21

Echo 90016204016

Screw 4x16
(Superseded to 90016304016)

$1.49

$

In Stock, Qty 20+

0

Gasket Kit

$

$

Not available

Echo 88900042033

Gasket kit - contains The Following:
(Superseded to 88900042034)

$16.99

$

In Stock, only 1 left!

0

Echo 10101044332

Gasket, Cylinder Base

$3.99

$

In Stock, only 4 left!

0

Echo 10024242030

Gasket, Crankcase

$1.49

$

In Stock, Qty 20+

0

Echo V103000111

Gasket, Intake
(Superseded to 13001642031)

$1.49

$

In Stock, Qty 20+

0

Echo 13001042032

Gasket, Intake

$2.49

$

In Stock, Qty 15

0

Echo 14586642031

Gasket, Exhaust

$2.49

$

In Stock, Qty 5

0

Echo V104000160

Gasket, Exhaust

$0.99

$

In Stock, Qty 16

0
