SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Carburetor Parts Diagram

String Trimmer (Type 1)

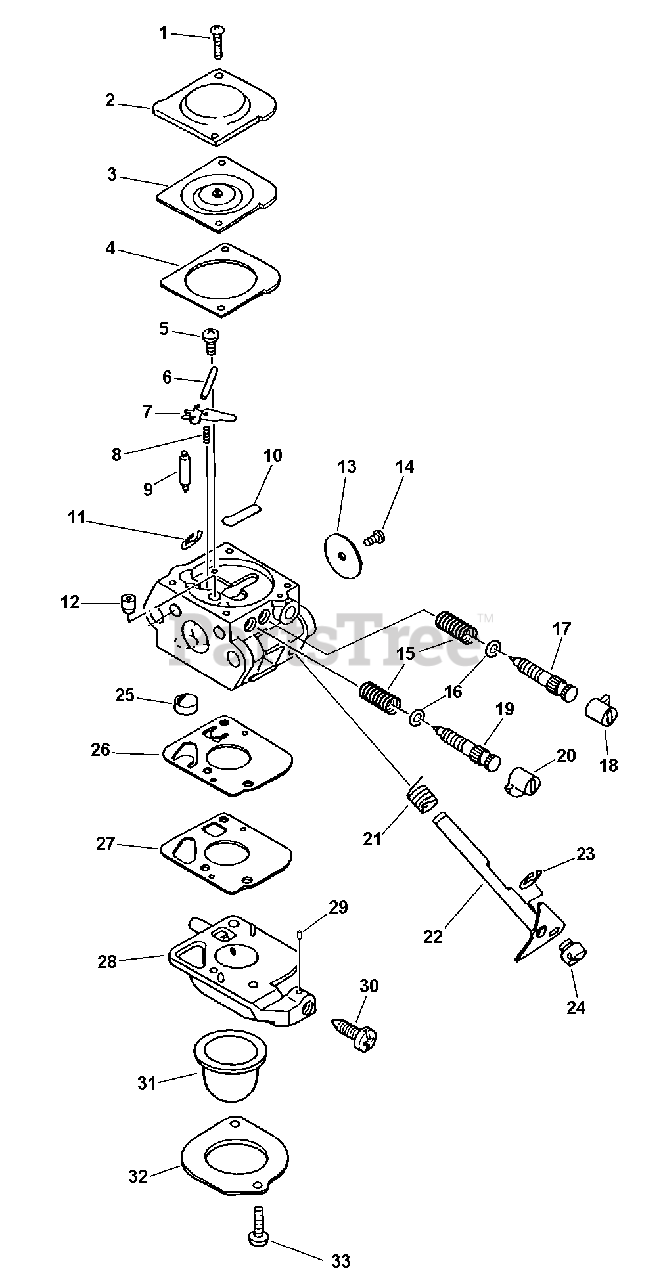

Carburetor Parts Diagram

  • Title

Echo 12520049030

Carburetor C1U-K47
(Superseded to 12520013311)

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534452130

Screw

$0.99

$

In Stock, Qty 8

0

2

Echo 12534213210

Cover, Metering Diaphragm
(Superseded to 12534252130)

$3.99

$

Usually ships in 2-4 days

0

3

Echo 12530049030

Diaphragm, Metering
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

3

Echo 12530349030

Diaphragm, Metering
(Superseded to 12530313310)

$8.99

$

In Stock, only 1 left!

0

4

Echo 12530049030

Gasket, Metering Diaphragm
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

4

Echo 12530349030

Gasket, Metering Diaphragm
(Superseded to 12530313310)

$8.99

$

In Stock, only 1 left!

0

5

Echo 12533942030

Screw

$0.99

$

In Stock, Qty 12

0

6

Echo 12530049030

Pin, Metering Arm
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

7

Echo 12530049030

Lever, Metering
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

8

Echo 12530049030

Spring, Metering Lever
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

9

Echo 12530049030

Valve, Inlet Needle
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

10

Echo 12530049030

Plug, Welch
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

11

Echo 12532715130

Clip

$0.99

$

In Stock, Qty 9

0

12

Echo 12537649030

Nozzle, Check Valve
(Superseded to Discontinued)

$

$

Not available

13

Echo 12531649030

Valve, Throttle

$2.49

$

Usually ships in 2-4 days

0

14

Echo 12531413930

Screw

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12531942030

Spring, Needle

$1.49

$

In Stock, only 1 left!

0

16

Echo 12535320560

Washer

$0.99

$

Usually ships in 2-4 days

0

17

Echo 12531807360

Needle, Lo Speed

$5.99

$

Usually ships in 2-4 days

0

18

Echo 12532909860

Cap, Limiter - Lo Speed

$1.99

$

In Stock, Qty 13

0

19

Echo 12532007360

Needle, High Speed
(Superseded to Discontinued)

$

$

Not available

20

Echo 12532939030

Cap, Limiter - High Speed

$1.99

$

In Stock, Qty 11

0

21

Echo 12531342030

Spring, Throttle Return

$1.49

$

In Stock, Qty 12

0

22

Echo 12531749030

Shaft, Throttle
(Superseded to Discontinued)

$

$

Not available

23

Echo 12532713930

Clip

$0.99

$

In Stock, Qty 9

0

24

Echo 12537242030

Swivel

$4.49

$

Usually ships in 2-4 days

0

25

Echo 12530049030

Strainer
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

26

Echo 12530049030

Diaphragm, Fuel Pump
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

26

Echo 12530349030

Diaphragm, Fuel Pump
(Superseded to 12530313310)

$8.99

$

In Stock, only 1 left!

0

27

Echo 12530049030

Gasket, Fuel Pump
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

27

Echo 12530349030

Gasket, Fuel Pump
(Superseded to 12530313310)

$8.99

$

In Stock, only 1 left!

0

28

Echo 12538313310

Base, Purge
(Superseded to P005000990)

$22.99

$

In Stock, only 4 left!

0

29

Echo 12537813930

Piece, Friction

$1.99

$

Usually ships in 2-4 days

0

30

Echo 12533413930

Screw, Idle Adjust

$1.49

$

In Stock, only 4 left!

0

31

Echo 12538108660

Pump, Purge
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

32

Echo 12536311610

Retainer, Purge Pump

$2.49

$

In Stock, Qty 8

0

33

Echo 12531011610

Screw

$1.49

$

In Stock, Qty 13

0
