SRM-2100 - Echo String Trimmer (Type 1) (SN: 001001 - 159490) U-Handle / Blade Conversion Kit Parts Diagram

String Trimmer (Type 1)

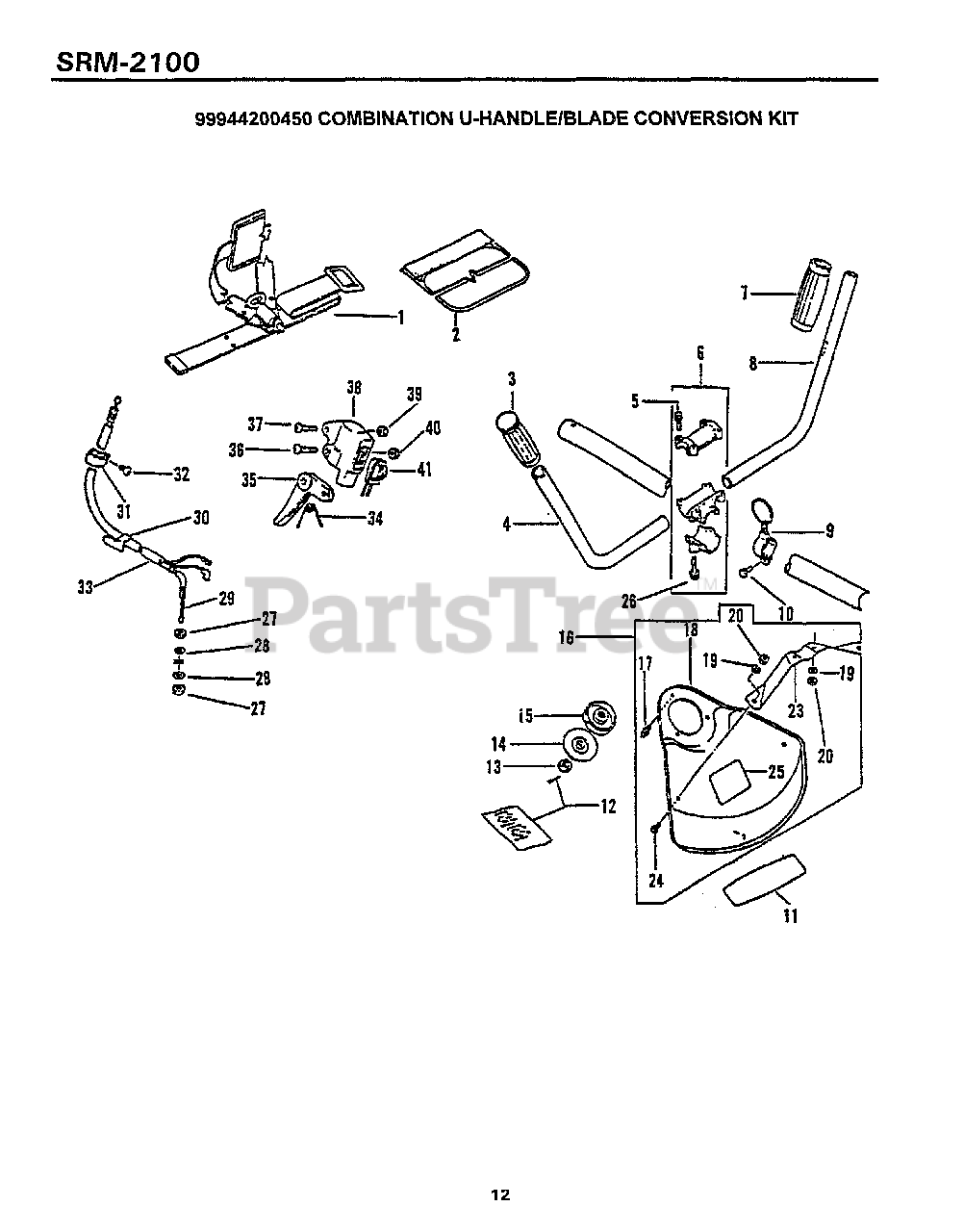

U-Handle / Blade Conversion Kit Parts Diagram

  • Title

Echo 35130444630

Blade Conversion Kit

Note: Includes 1-41

$

$

Not available

1

Echo 30100052131

Harness Asy
(Superseded to C062000070)

$21.99

$

In Stock, only 1 left!

0

2

Echo 30110541830

Pad, Waist
(Superseded to C652000000)

$24.99

$

Usually ships in 2-4 days

0

3

Echo 35131102330

Grip

$6.49

$

In Stock, only 3 left!

0

4

Echo 35121005530

Handle (Left)

$

$

Not available

5

Echo 90014205025

Bolt 5x25 (W/W SW)

$0.99

$

In Stock, only 4 left!

0

6

Echo 35130109230

Bracket Set
(Superseded to P021000460)

Note: Includes Items 5, 26

$28.99

$

Usually ships in 2-4 days

0

7

Echo 35131522130

Grip

$10.99

$

Usually ships in 2-4 days

0

8

Echo 35101005530

Handle (Right)

$27.99

$

Usually ships in 2-4 days

0

9

Echo 30120521330

Hook
(Superseded to 30120021330)

$3.49

$

In Stock, Qty 20+

0

10

Echo 90010005012

Bolt 5x12

$0.99

$

In Stock, Qty 5

0

11

Echo 89011848830

Lable, Echo
(Superseded to X502000320)

$0.99

$

In Stock, Qty 8

0

12

Echo 90030020022

Pin, Split

$0.99

$

In Stock, Qty 20+

0

13

Echo 90051100010

Nut 10, Left

$1.49

$

In Stock, only 2 left!

0

14

Echo 61031404131

Plate, Fitting (Lower)
(Superseded to C535000150)

$9.49

$

In Stock, only 2 left!

0

15

Echo 61033808930

Plate, Fitting (Upper)
(Superseded to C535000160)

$10.99

$

In Stock, Qty 18

0

16

Echo 69900023431

Shield Asy
(Superseded to 69900023432)

Note: Includes Items 17-20, 23-24

$23.99

$

In Stock, only 1 left!

0

17

Echo 90024205010

Screw 5x10

$0.99

$

In Stock, Qty 20+

0

18

Echo 69901023531

Shield
(Superseded to C550000200)

$14.99

$

In Stock, Qty 6

0

19

Echo 90060500005

Washer, Spring 5

$0.99

$

In Stock, Qty 10

0

20

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 69901523431

Bracket

$10.99

$

In Stock, only 2 left!

0

24

Echo 90022005008

Screw 5x16

$0.99

$

In Stock, Qty 12

0

25

Echo 89016841030

Lable, Caution
(Superseded to 89016841031)

$2.49

$

Usually ships in 2-4 days

0

26

Echo 90014206030

Bolt 6x30 (W/W, SW)

$0.99

$

Usually ships in 2-4 days

0

27

Echo 90050300006

Nut 6

$0.99

$

In Stock, Qty 6

0

28

Echo 90060000006

Washer 6

$0.99

$

In Stock, Qty 16

0

29

Echo 17800141330

Cable, Throttle
(Superseded to Discontinued)

$

$

Not available

30

Echo 17811104930

Clamp

$1.99

$

Usually ships in 2-4 days

0

31

Echo 17810605330

Band

$4.99

$

Usually ships in 2-4 days

0

32

Echo 90022005010

Screw 5x10

$0.99

$

In Stock, Qty 7

0

33

Echo 17812708030

Tube
(Superseded to V475002270)

$1.49

$

Usually ships in 2-4 days

0

34

Echo 17804305230

Spring, Return

$0.99

$

In Stock, Qty 7

0

35

Echo 17801006460

Trigger, Throttle

$4.99

$

In Stock, only 4 left!

0

36

Echo 90024205025

Screw 5x25

$0.99

$

In Stock, Qty 20+

0

37

Echo 17811005330

Screw

$0.99

$

In Stock, Qty 6

0

38

Echo 17802441830

Bracket, Throttle
(Superseded to 17802451830)

$7.49

$

In Stock, only 1 left!

0

39

Echo 90056000005

Locknut 5

$1.49

$

In Stock, Qty 20+

0

40

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

41

Echo 16340149230

Switch, Ignition
(Superseded to A440000340)

$11.99

$

In Stock, only 1 left!

0
