SRM-2100 - Echo String Trimmer (Type 1) (SN: 001001 - 159490) Fuel System, Main Pipe, Support Handle, Throttle Control Parts Diagram

String Trimmer (Type 1)

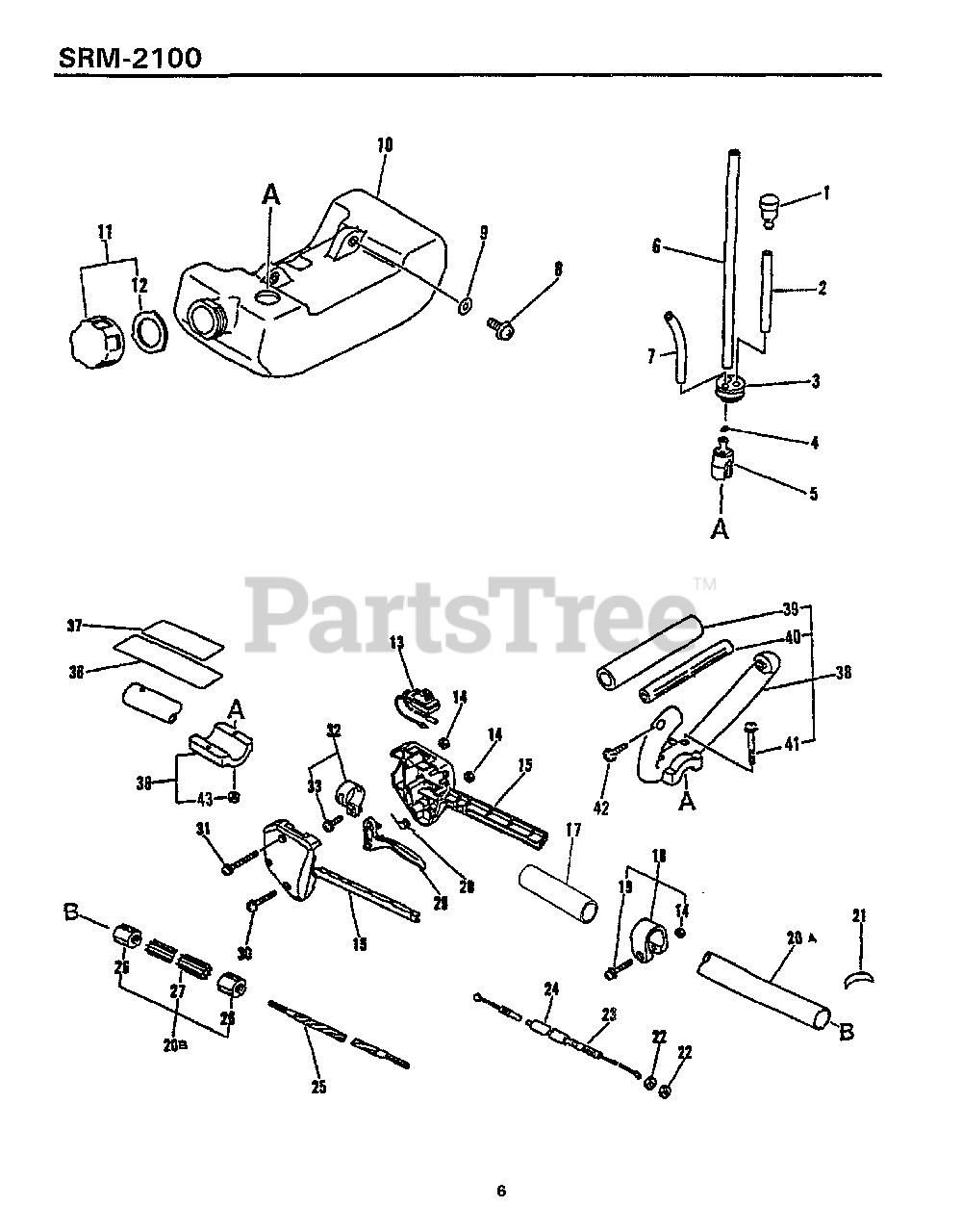

Fuel System, Main Pipe, Support Handle, Throttle Control Parts Diagram

  • Title

1

Echo 13130040630

Vent Asy
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

2

Echo 13131244330

Pipe 3x5x70
(Superseded to 13131239130)

$1.99

$

In Stock, Qty 20+

0

3

Echo 13211546730

Grommet, Fuel

$1.99

$

In Stock, Qty 20+

0

4

Echo 13201309820

Clip

$0.99

$

In Stock, Qty 20+

0

5

Echo 13120514930

Strainer, Fuel
(Superseded to 13120514931)

$8.99

$

In Stock, Qty 14

0

6

Echo 13201013930

Pipe, Fuel 3x5x180
(Superseded to V471001190)

$1.49

$

In Stock, Qty 20+

0

7

Echo 13201251030

Pipe 3x5x90
(Superseded to 13201056330)

$2.99

$

In Stock, Qty 20+

0

8

Echo 90023805016

Screw 5x16

$0.99

$

In Stock, Qty 20+

0

9

Echo 90060300005

Washer 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 13100544330

Tank, Fuel
(Superseded to 13100544331)

$20.99

$

In Stock, only 1 left!

0

11

Echo 13100448730

Cap Asy, Fuel
(Superseded to 13100455830)

Note: Includes Item 12

$4.49

$

In Stock, only 1 left!

0

12

Echo 13101640930

Gasket, Fuel Tank Cap

$2.99

$

In Stock, Qty 19

0

13

Echo 16340049230

Switch, Ignition
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 7

0

14

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 17800352130

Bracket Set, Throttle

Note: Includes Items 14, 30-31

$4.99

$

In Stock, only 1 left!

0

17

Echo 35121352130

Grip, Front handle

$9.49

$

In Stock, only 2 left!

0

18

Echo 61027252130

Band 25

Note: Includes Items 14, 19

$9.99

$

In Stock, only 1 left!

0

19

Echo 90024205030

Screw 5x30

$0.99

$

In Stock, only 2 left!

0

20

Echo 61060944730

Housing Asy, Driveshaft

Note: Includes Items 21, 26, 27, 36, 37

$51.99

$

Usually ships in 2-4 days

0

21

Echo 89015204930

Label, Caustion

$0.99

$

In Stock, Qty 9

0

22

Echo 90050200006

Nut 6 (3)

$0.99

$

In Stock, only 1 left!

0

23

Echo 17800144430

Wire, Throttle

$10.99

$

In Stock, only 1 left!

0

24

Echo 17812750330

Tube

$1.49

$

In Stock, Qty 5

0

25

Echo 61001344730

Shaft, Flexible
(Superseded to C506000390)

$16.99

$

In Stock, only 2 left!

0

26

Echo 61024644730

Fixture, Liner

$1.49

$

In Stock, Qty 20+

0

27

Echo 61021744730

Liner, Flexible
(Superseded to C507000260)

$25.99

$

Usually ships in 2-4 days

0

28

Echo 17804342230

Spring, Throttle Return

$0.99

$

In Stock, Qty 20+

0

29

Echo 17801052130

Control, Throttle

$3.49

$

In Stock, Qty 20+

0

30

Echo 90024205025

Screw 5x25

$0.99

$

In Stock, Qty 20+

0

31

Echo 90024205035

Screw 5x35

$0.99

$

In Stock, Qty 20+

0

32

Echo 30120029430

Band
(Superseded to 30120029431)

Note: Includes Item 33

$9.49

$

In Stock, only 1 left!

0

33

Echo 90024205014

Screw 5x14

$0.99

$

In Stock, Qty 20+

0

36

Echo 89016047630

Label, Caustion
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

37

Echo 89016044430

Label, Caustion
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days

0

38

Echo 35120152130

Handle Asy, Loop

Note: Includes Items 39-43

$65.99

$

In Stock, only 1 left!

0

39

Echo 35121351730

Grip, Front Handle

$8.49

$

In Stock, Qty 6

0

40

Echo 35121051730

Handle, Front

$4.49

$

Usually ships in 2-4 days

0

41

Echo 90024206035

Screw 6x35

$1.49

$

Usually ships in 2-4 days

0

42

Echo 90024605030

Screw 5x30

$0.99

$

Usually ships in 2-4 days

0

43

Echo 90050000006

Nut 6

$0.99

$

In Stock, Qty 20+

0
