SRM-210 SB - Echo String Trimmer (SN: 05001001 - 05999999) Starter - i-30 S/N: 05016332 - 05999999 Parts Diagram

String Trimmer

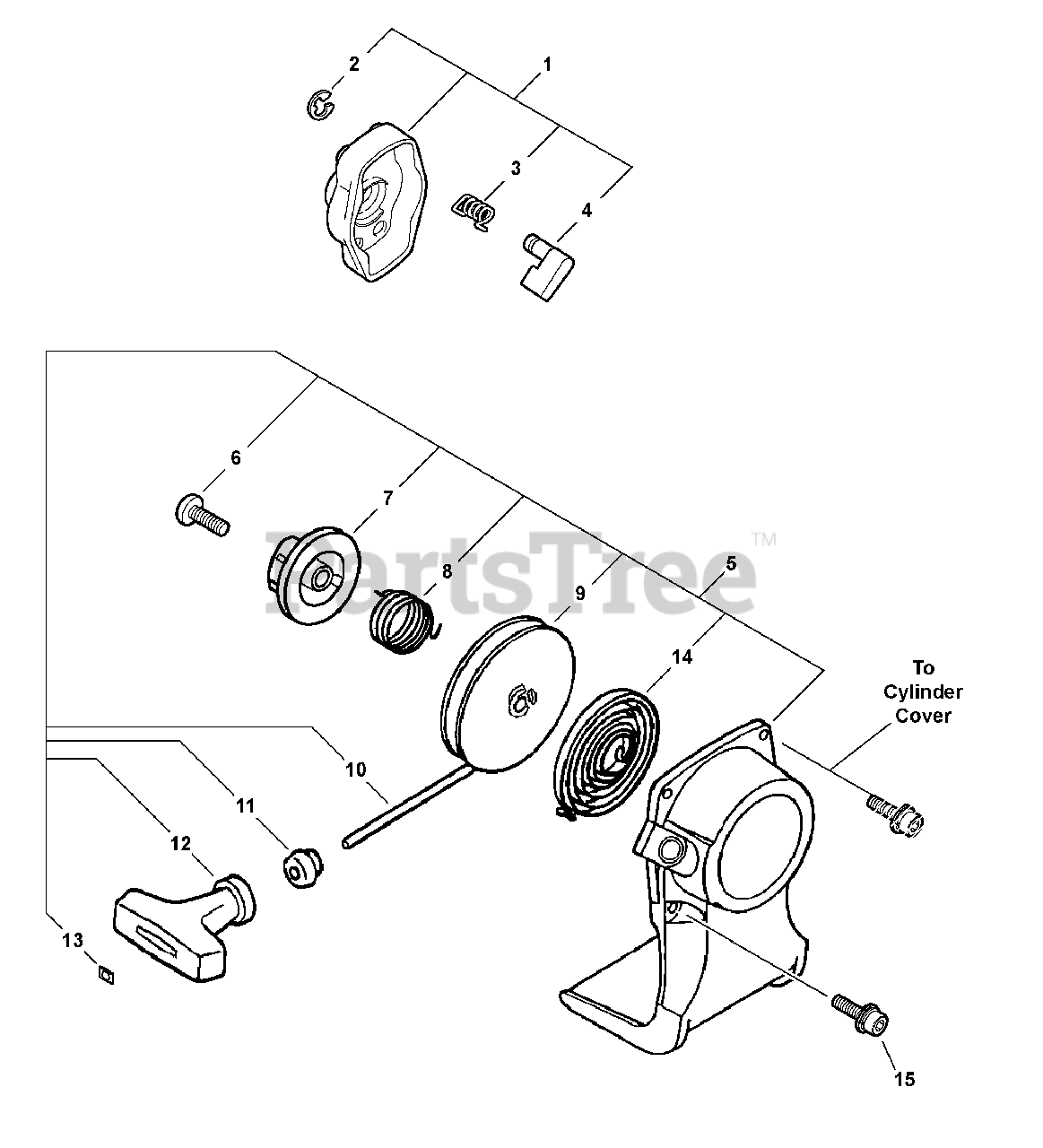

Starter - i-30 S/N: 05016332 - 05999999 Parts Diagram

  • Title

1

Echo A052000180

Starter Pawl Asy

Note: Includes Items 2-4

$8.99

$

In Stock, Qty 19

0

2

Echo P022002100

E-Ring

$0.99

$

In Stock, Qty 8

0

3

Echo P022006510

Spring, Pawl Return
(Superseded to 17723412220)

$3.99

$

In Stock, Qty 11

0

4

Echo P022006850

Pawl, Starter

$3.49

$

In Stock, only 2 left!

0

5

Echo A051000680

Starter Asy
(Superseded to A051000681)

Note: Includes Items 6-14

$42.99

$

In Stock, only 3 left!

0

6

Echo 17723661830

Screw
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

7

Echo P022008280

Plate, Cam
(Superseded to Discontinued)

$

$

Not available

8

Echo P022008270

Spring, Damper

$8.99

$

In Stock, Qty 20+

0

9

Echo P022006830

Drum
(Superseded to P050009900)

$17.99

$

In Stock, Qty 20+

0

10

Echo P022008260

Rope, Starter - 3x700mm

Note: Repower Bulk Option: 99944440000

$

$

Not available

11

Echo 17722742030

Guide, Rope

$2.49

$

In Stock, Qty 15

0

12

Echo 17722827030

Grip, Starter

$5.99

$

In Stock, Qty 20+

0

13

Echo 17724611120

Clip, Starter Rope
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

14

Echo 17722042030

Spring, Rewind
(Superseded to P022019680)

$9.99

$

In Stock, Qty 13

0

15

Echo 90016304016

Screw 4x16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0
