SRM-210 SB - Echo String Trimmer (SN: 05001001 - 05999999) Intake Parts Diagram

String Trimmer

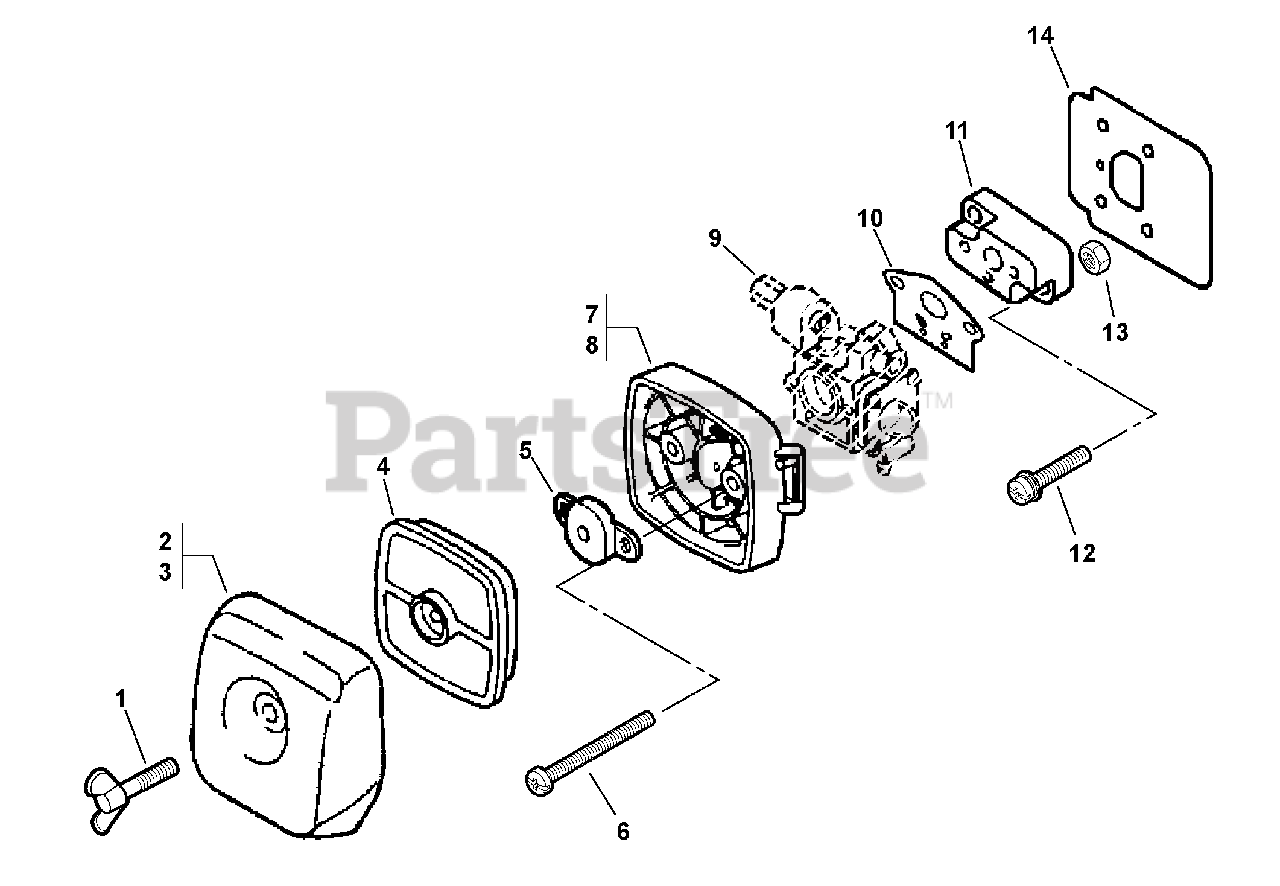

Intake Parts Diagram

  • Title

1

Echo 21041752730

Wing Bolt

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

Lid, Air Cleaner - Gray

$6.99

$

In Stock, Qty 20+

0

3

Echo 13031305863

Lid, Air Cleaner - Black

$6.49

$

In Stock, Qty 20+

0

4

Echo 13031054130

Filter, Air
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

5

Echo 12901152730

Plate, Prevent

$3.99

$

In Stock, Qty 20+

0

6

Echo 90022005065

Screw 5x65

$0.99

$

In Stock, Qty 20+

0

7

Echo P021000991

Case, Air Cleaner - Gray

$9.49

$

In Stock, Qty 20+

0

8

Echo P021004480

Case, Air Cleaner - Black
(Superseded to P021049750)

$9.99

$

In Stock, Qty 20+

0

9

Carburetor

Note: See Carburetor Diagram For Additional Information

$

$

Not available

10

Echo 13001013410

Gasket, Intake

$1.99

$

In Stock, Qty 20+

0

11

Echo 13001744330

Insulator, Intake
(Superseded to P021015350)

$4.49

$

In Stock, only 1 left!

0

12

Echo 90023805020

Screw 5x20

$0.99

$

In Stock, only 3 left!

0

13

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 13001042032

Shield, Intake

$2.49

$

In Stock, only 1 left!

0
