SRM-210 SB - Echo String Trimmer (SN: 05001001 - 05999999) Gear Case Parts Diagram

String Trimmer

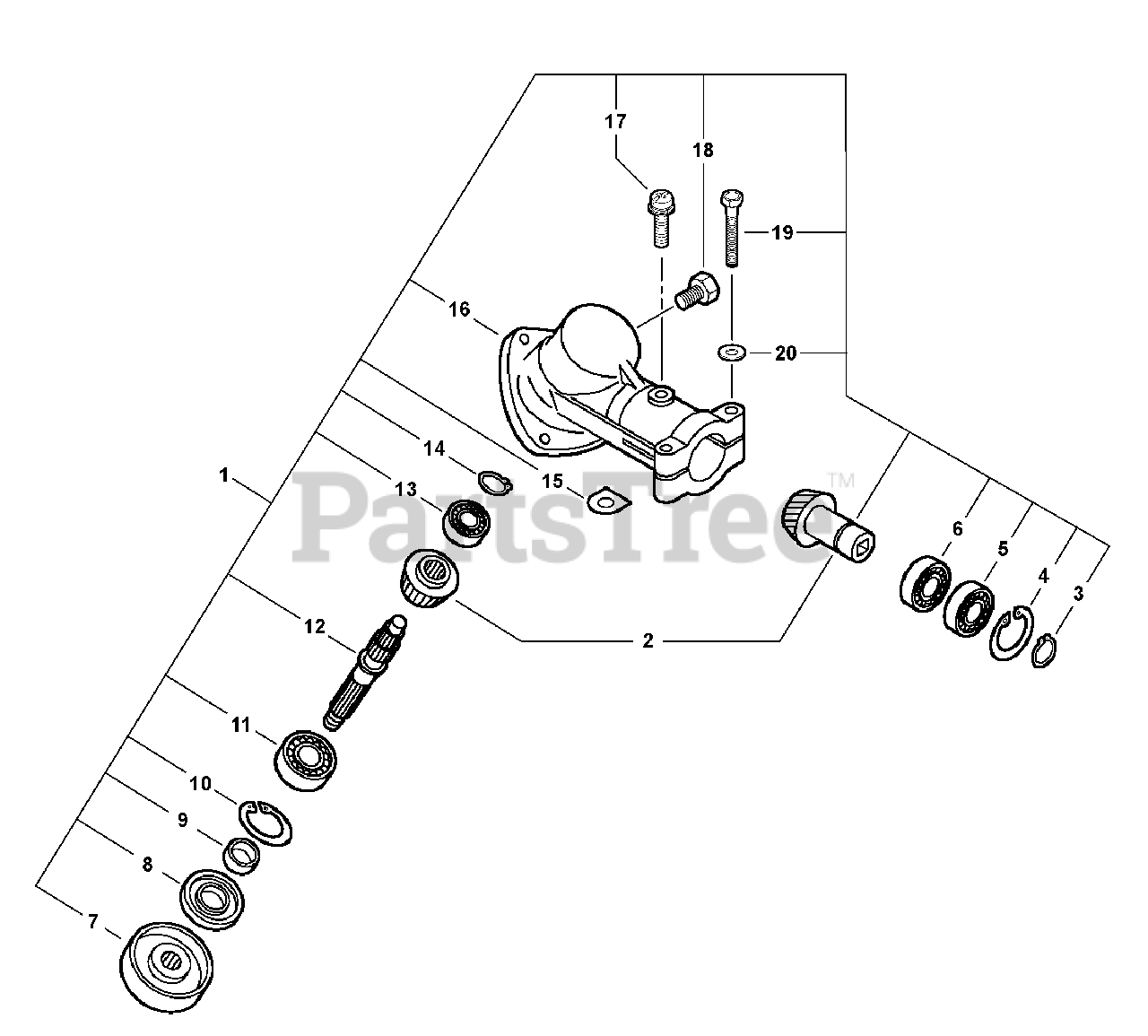

Gear Case Parts Diagram

  • Title

1

Echo 61040247732

Gear Case Asy
(Superseded to 61040247733)

Note: Includes Item 2-20

$98.99

$

Usually ships in 2-4 days

0

2

Echo 61030044830

Gear Set

$88.99

$

Usually ships in 2-4 days

0

3

Echo 90070600010

Circlip 10

$1.49

$

In Stock, Qty 20+

0

4

Echo 90070200022

Circlip 22

$1.99

$

In Stock, Qty 5

0

5

Echo 90085806900

Bearing, Ball - 6900z

$22.99

$

In Stock, Qty 6

0

6

Echo 90085506900

Bearing, Ball - 6900

$18.99

$

In Stock, Qty 5

0

7

Echo 61031347731

Plate, Adapter (Upper)

$12.99

$

In Stock, Qty 18

0

8

Echo 61041307130

Oil Seal

$5.99

$

In Stock, Qty 11

0

9

Echo 61031507130

Spacer

$3.99

$

In Stock, Qty 5

0

10

Echo 90070200032

Circlip 32

$1.99

$

In Stock, Qty 14

0

11

Echo 9403536201

Bearing, Ball - 6201

$7.99

$

In Stock, Qty 9

0

12

Echo 61036008931

Shaft, p.t.o.
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

13

Echo 90080000609

Bearing, Ball - 609

$9.99

$

In Stock, Qty 11

0

14

Echo 90070600012

Circlip 12

$1.49

$

In Stock, Qty 10

0

15

Echo 61023904130

Washer, Shim

$0.99

$

In Stock, Qty 10

0

16

Echo 61046027431

Housing, Gear
(Superseded to 61040247732)

$98.99

$

Usually ships in 2-4 days

0

17

Echo 90024205010

Screw 5x10

$0.99

$

In Stock, Qty 20+

0

18

Echo 61043450031

Bolt 8x8

$1.99

$

In Stock, Qty 6

0

19

Echo 90010005035

Bolt 5x35

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0
