SRM-210 SB - Echo String Trimmer (SN: 05001001 - 05999999) Carburetor - RB-K70A S/N: 05016346 - 05999999 Parts Diagram

String Trimmer

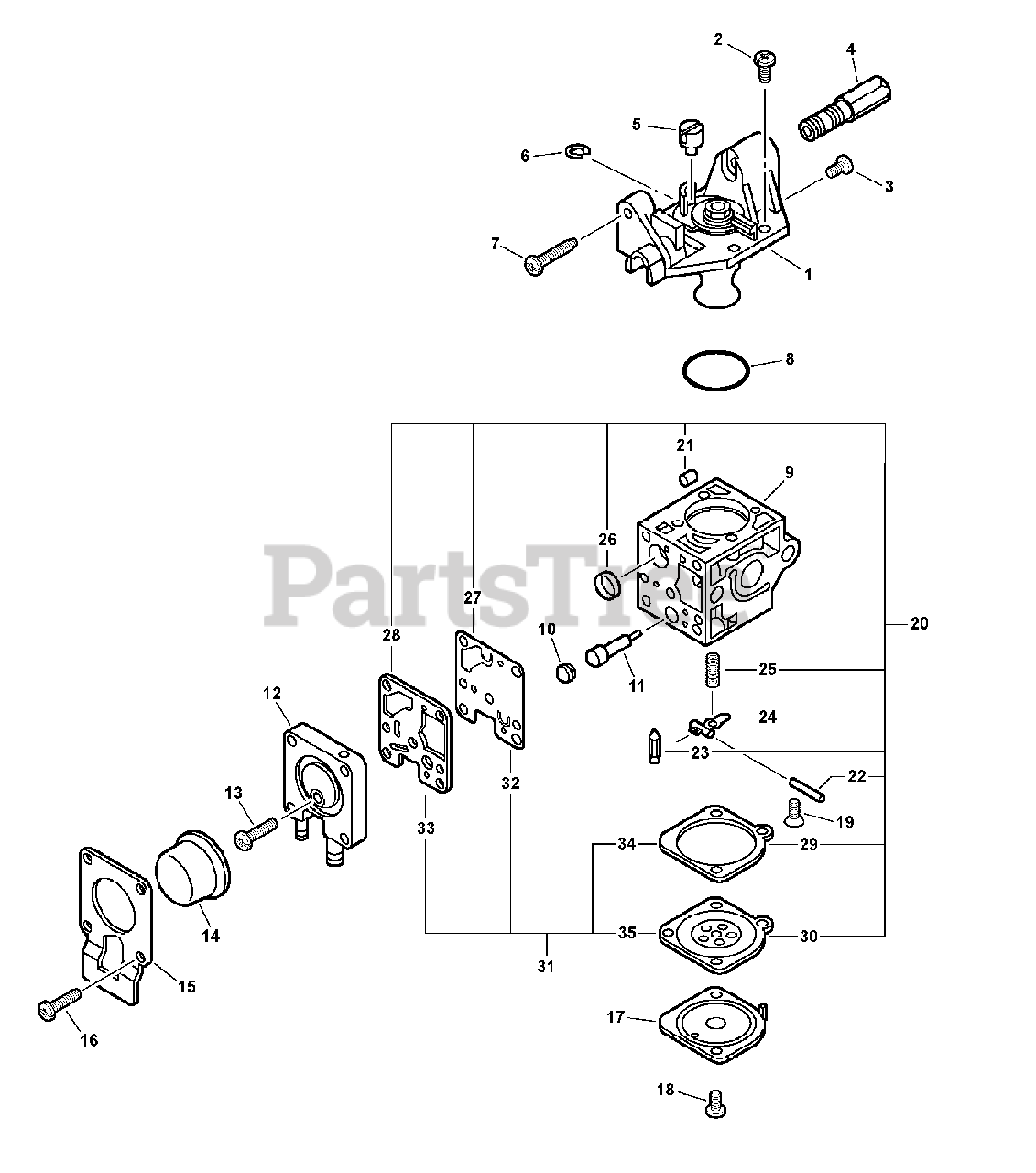

Carburetor - RB-K70A S/N: 05016346 - 05999999 Parts Diagram

  • Title

Echo A021000721

Carburetor - RB-K70A
(Superseded to A021000722)

$82.99

$

In Stock, only 1 left!

0

1

Echo P005001620

Rotor Cover Asy

$30.99

$

Usually ships in 2-4 days

0

2

Echo 12534413931

Screw, Rotor Cover Asy

$2.49

$

In Stock, Qty 12

0

3

Echo 12534452130

Screw, Rotor Cover

$0.99

$

In Stock, Qty 8

0

4

Echo P005001330

Screw, Cable Adjust

$3.99

$

In Stock, Qty 6

0

5

Echo P005001240

Swivel
(Superseded to P005002090)

$4.99

$

In Stock, only 1 left!

0

6

Echo P005000190

e-Ring

$0.99

$

In Stock, Qty 7

0

7

Echo P005000100

Screw, Throttle Adjust

$5.49

$

Usually ships in 2-4 days

0

8

Echo P005000280

o-Ring

$3.49

$

In Stock, only 4 left!

0

9

Body, Carburetor

$

$

Not available

10

Echo P005001270

Plug

$1.49

$

In Stock, Qty 20+

0

11

Echo P005001260

Needle - High Speed

$5.99

$

In Stock, only 1 left!

0

12

Echo P005000930

Purge Base Asy

$19.99

$

In Stock, Qty 20+

0

13

Echo P005000270

Screw, Purge Base Asy

$1.49

$

In Stock, Qty 20+

0

14

Echo 12538108660

Bulb, Purge
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

15

Echo P005000250

Retainer, Purge Bulb

$2.49

$

In Stock, Qty 20+

0

16

Echo 12531061830

Screw, Purge Bulb Retainer
(Superseded to P005001900)

$0.99

$

In Stock, Qty 20+

0

17

Echo 12534252130

Cover, Diaphragm

$3.99

$

Usually ships in 2-4 days

0

18

Echo 12534452130

Screw, Diaphragm Cover

$0.99

$

In Stock, Qty 8

0

19

Echo 12533942030

Screw, Metering Lever Pin

$0.99

$

In Stock, Qty 12

0

20

Echo P005000950

Repair Kit
(Superseded to P005002280)

Note: Includes Item 21-30

$16.99

$

In Stock, Qty 14

0

21

Echo P005001000

Roller, Guide

$1.99

$

In Stock, Qty 5

0

22

Pin, Metering Lever

$

$

Not available

23

Valve, Inlet Needle

$

$

Not available

24

Lever, Metering

$

$

Not available

25

Spring, Metering Lever

$

$

Not available

26

Strainer

$

$

Not available

27

Diaphragm, Pump

$

$

Not available

28

Gasket, Pump

$

$

Not available

29

Gasket, Metering

$

$

Not available

30

Diaphragm, Metering

$

$

Not available

31

Echo P005000550

Diaphragm/Gasket Kit

Note: Includes Item 32-35

$7.99

$

In Stock, Qty 20+

0

32

Diaphragm, Pump

$

$

Not available

33

Gasket, Pump

$

$

Not available

34

Gasket, Metering

$

$

Not available

35

Diaphragm, Metering

$

$

Not available
