SRM-210 E - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

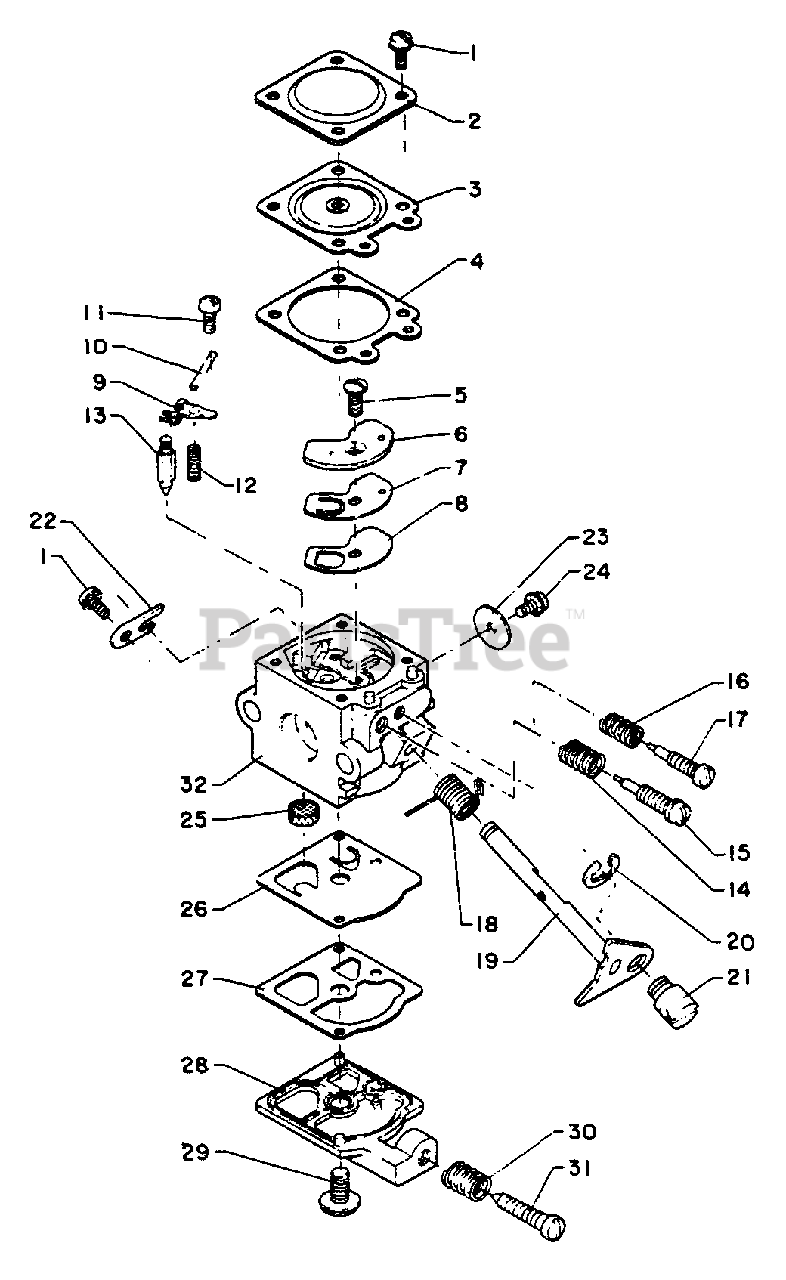

Carburetor Parts Diagram

  • Title

Echo 12300006520

CARBURETOR WA-81
(Superseded to 12300001262)

Note: Consists of 1 thru 32

$112.99

$

In Stock, only 1 left!

0

$0.99

$

In Stock, Qty 9

0

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

Echo 12314103930

DIAPHRAGM, METERING

$13.99

$

In Stock, Qty 6

0

4

Echo 12314003930

GASKET, METERING

$1.99

$

In Stock, Qty 6

0

5

Echo 12316705230

SCREW, CIRCUIT PLATE

$0.99

$

In Stock, only 1 left!

0

6

Echo 12316603930

PLATE, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

7

Echo 12316503930

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

8

Echo 12316403930

GASKET, CIRCUIT PLATE

$1.99

$

In Stock, only 4 left!

0

9

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

10

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

11

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

12

Echo 12312203930

SPRING, METERING LEVER

$

$

Not available

13

Echo 12313703930

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

14

$1.49

$

In Stock, only 4 left!

0

15

Echo 12312006530

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

16

Echo 12312103930

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 5

0

17

Echo 12311806520

NEEDLE - LOW SPEED

$4.49

$

Usually ships in 2-4 days

0

18

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

19

Echo 12311705020

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

20

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12311605230

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

24

$1.49

$

In Stock, Qty 13

0

25

Echo 12312603930

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

26

Echo 12311203930

DIAPHRAGM, PUMP

$3.49

$

In Stock, Qty 10

0

27

Echo 12312503930

GASKET, PUMP

$1.99

$

In Stock, Qty 20+

0

28

Echo 12312411130

COVER, PUMP

$5.49

$

Usually ships in 2-4 days

0

29

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

30

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

31

Echo 12313406530

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 2 left!

0

32

------------------

BODY, CARBURETOR

$

$

Not available
