SRM-210 AE - Echo String Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

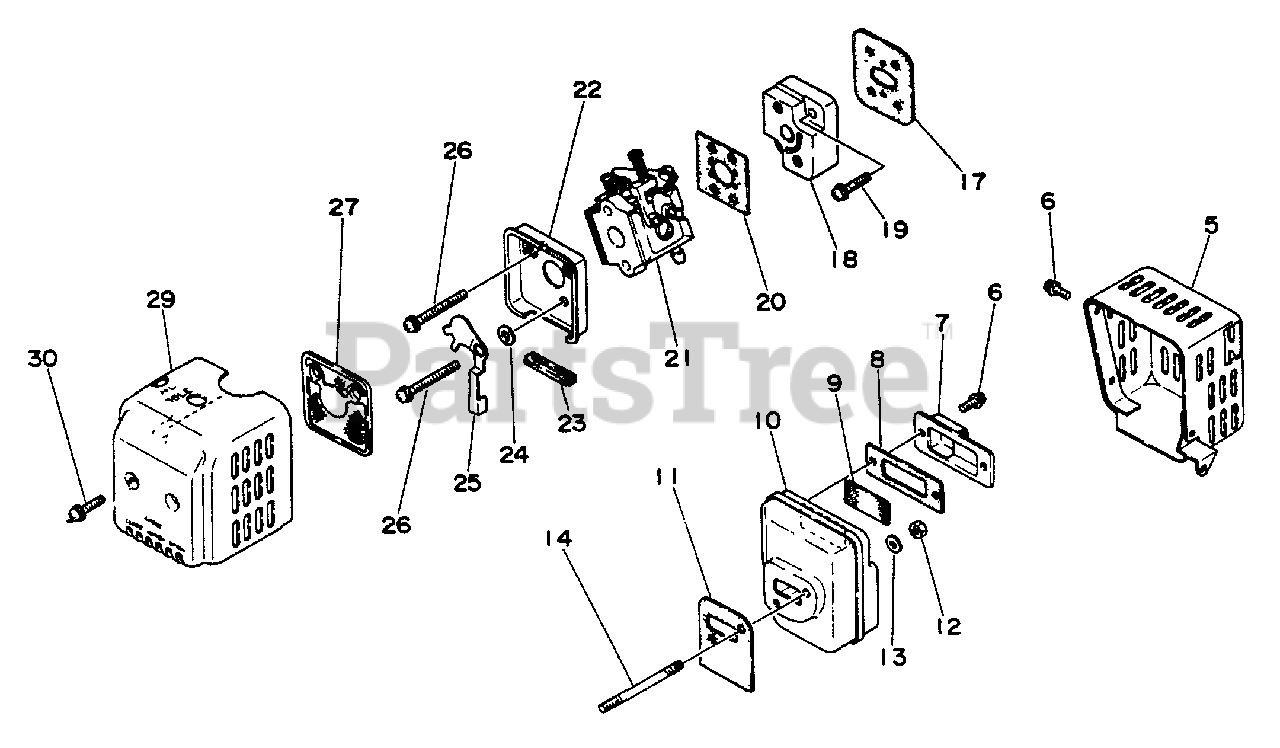

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

Echo 14580309220

MUFFLER ASSY
(Superseded to 14580309221)

Note: Consists of 5 thru 11

$

$

Not available

5

Echo 14587109220

COVER, EXHAUST
(Superseded to Discontinued)

$

$

Not available

6

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

7

Echo 14580906520

GUIDE, EXHAUST
(Superseded to 14580928430)

$

$

Not available

8

Echo 14586609220

GASKET, EXHAUST
(Superseded to 14586628430)

$

$

Not available

9

Echo 14586209220

SCREEN, SPARK ARRESTOR

$1.99

$

Usually ships in 2-4 days

0

10

Echo 14580609220

MUFFLER
(Superseded to Discontinued)

$

$

Not available

11

Echo 14551009220

GASKET, EXHAUST
(Superseded to 14551009221)

$

$

Not available

12

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

13

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 10101400560

STUD

$2.49

$

Usually ships in 2-4 days

0

17

Echo 13001009220

GASKET, INTAKE
(Superseded to 13001009221)

$

$

Not available

18

Echo 13000709320

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

19

Echo 90024305020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

20

Echo 13001609220

GASKET, INTAKE
(Superseded to 13001609221)

$

$

Not available

21

Echo 12300009320

CARBURETOR WA-143
(Superseded to Discontinued)

$

$

Not available

22

Echo 13030109220

CASE, AIR FILTER

Note: Includes 23

$6.49

$

Usually ships in 2-4 days

0

23

Echo 17881021630

GROMMET

$1.49

$

Usually ships in 2-4 days

0

24

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 17851509220

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

26

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 7

0

27

Echo 13031006530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

29

Echo 13030809220

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

30

Echo 90024204018

SCREW - 4X18

$0.99

$

In Stock, Qty 7

0
