SRM-202 FA - Echo String Trimmer Fuel System Parts Diagram

String Trimmer

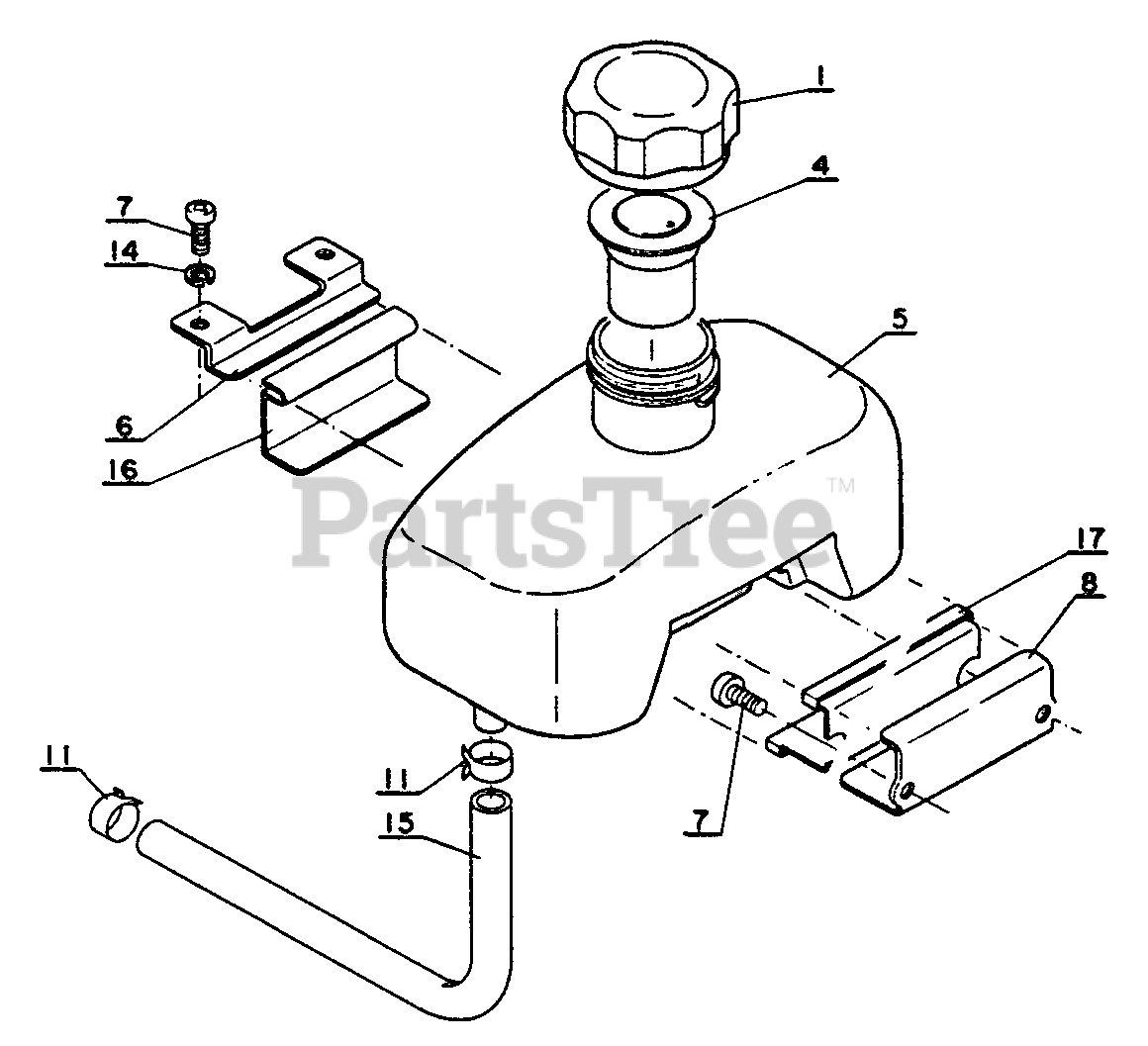

Fuel System Parts Diagram

  • Title

1

Echo 13101701110

CAP
(Superseded to Discontinued)

$

$

Not available

4

Echo 13100305330

VENT, CAP

$2.99

$

In Stock, only 1 left!

0

5

Echo 13101004730

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

6

Echo 13191005330

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

7

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, only 3 left!

0

8

Echo 13191804630

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

11

Echo 35701300210

CLAMP
(Superseded to 13201314010)

$3.49

$

Usually ships in 2-4 days

0

14

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

15

Echo 13201204731

PIPE - FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

16

Echo 13192005330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

17

Echo 13192405330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available
