SRM-202 F - Echo String Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

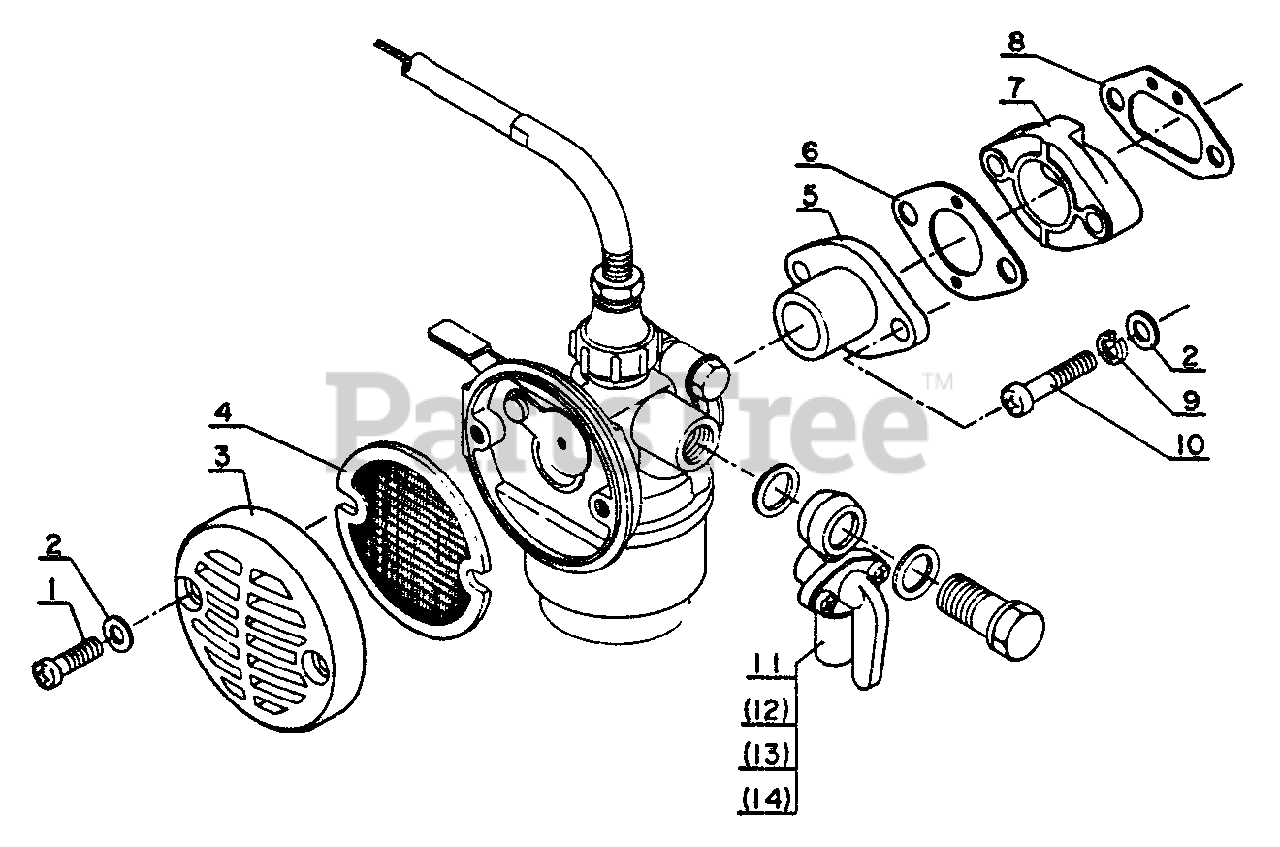

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 90021004012

SCREW - 4X12
(Superseded to 90022004012)

$0.99

$

Usually ships in 2-4 days

0

2

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

3

Echo 13031004730

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

4

Echo 13031304730

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

5

Echo 13051004730

ADAPTOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

6

Echo 13001604630

GASKET, INTAKE
(Superseded to 13001604631)

$0.99

$

In Stock, Qty 8

0

7

Echo 13001704730

INSULATOR, INTAKE
(Superseded to 13001704731)

$

$

Not available

8

Echo 13001004630

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

9

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

10

Echo 90021004025

SCREW - 4X25
(Superseded to 90022004025)

$0.99

$

In Stock, only 1 left!

0

11

Echo 13220000511

FUEL VALVE ASSY
(Superseded to 13220000512)

$12.99

$

Usually ships in 2-4 days

0

12

------------------

N/A

$

$

Not available

13

------------------

N/A

$

$

Not available

14

------------------

N/A

$

$

Not available
