SRM-202 F - Echo String Trimmer Ignition Parts Diagram

String Trimmer

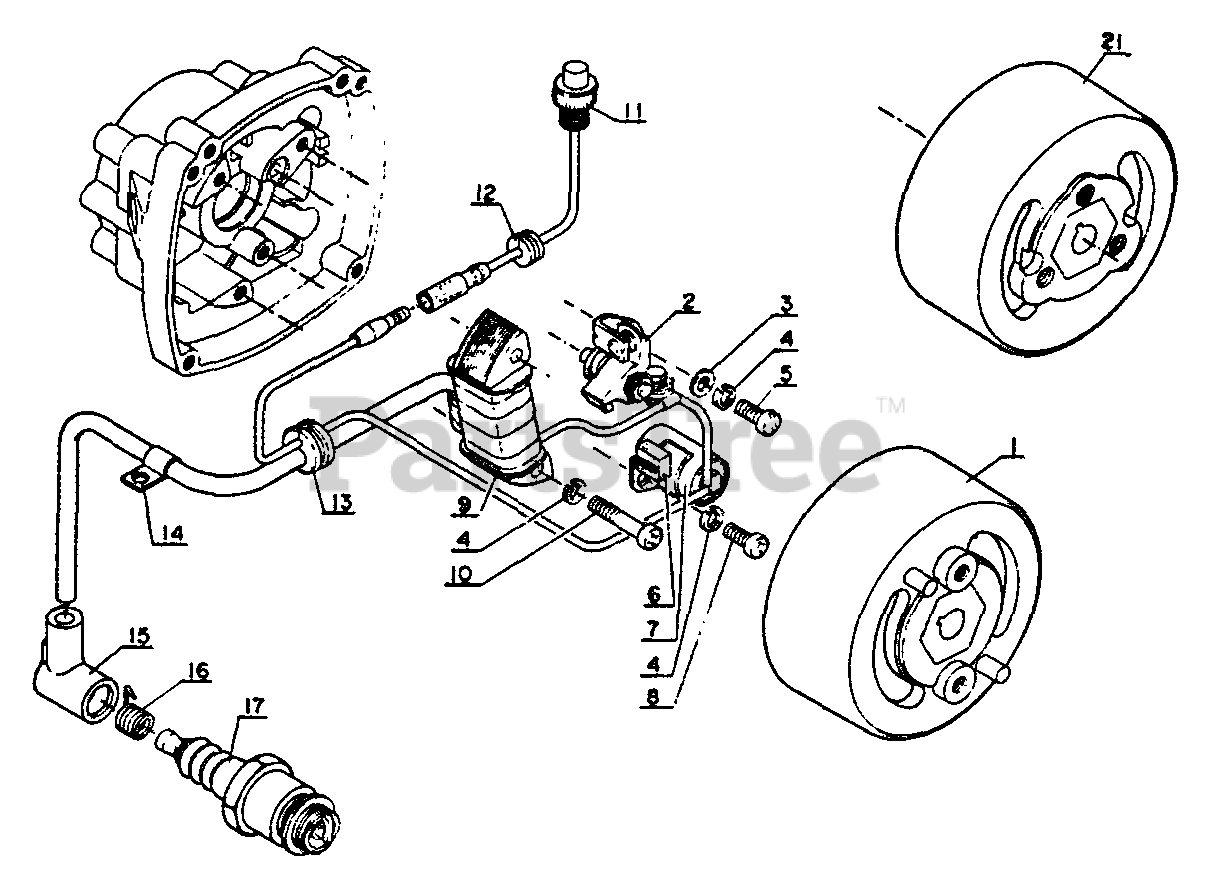

Ignition Parts Diagram

  • Title

1

Echo 15120004630

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 15210103331

CONTACT POINT SET
(Superseded to 15610104630)

$

$

Not available

3

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

4

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

5

Echo 90020004008

SCREW - 4X8
(Superseded to 90022004008)

$0.99

$

In Stock, only 3 left!

0

6

Echo 15214303330

OILER

$

$

Currently unavailable

7

Echo 15212703330

CONDENSER
(Superseded to 15612704630)

$

$

Not available

8

Echo 90021004008

SCREW - 4X8
(Superseded to 90022004008)

$0.99

$

In Stock, only 3 left!

0

9

Echo 15212603330

COIL, IGNITION
(Superseded to 15612604630)

$

$

Not available

10

Echo 90021004020

SCREW - 4X20
(Superseded to 90022004020)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 16610104630

BUTTON, STOP
(Superseded to 16610104131)

$

$

Not available

12

Echo 15111404630

GROMMET
(Superseded to Discontinued)

$

$

Not available

13

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

14

Echo 15911004630

CLAMP
(Superseded to Discontinued)

$

$

Not available

15

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

16

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 18

0

17

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

21

Echo 15220004630

FLYWHEEL

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable
