SRM-202 F - Echo String Trimmer Crankcase, Fan Housing Parts Diagram

String Trimmer

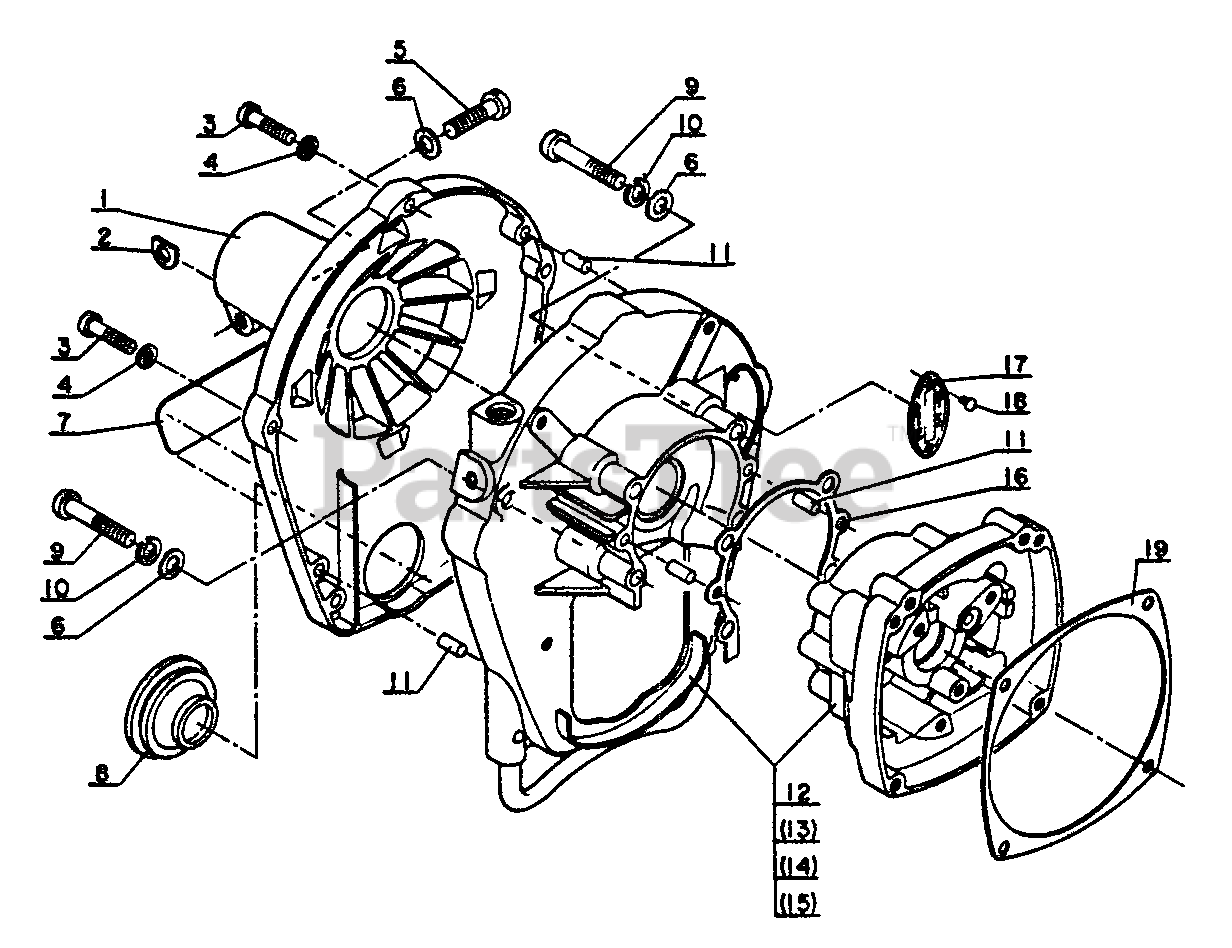

Crankcase, Fan Housing Parts Diagram

  • Title

1

Echo 10151104630

CASE, FAN
(Superseded to 10151104631)

$

$

Not available

2

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

3

Echo 90021004018

SCREW - 4X18
(Superseded to 90022004018)

$0.99

$

In Stock, only 3 left!

0

4

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

5

Echo 90010005020

BOLT - 5X20

$0.99

$

In Stock, Qty 8

0

6

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 89003404630

NAME PLATE
(Superseded to Discontinued)

$

$

Not available

8

Echo 15901504630

SEAL, DUST

$1.99

$

Usually ships in 2-4 days

0

9

Echo 90021005028

SCREW - 5X18
(Superseded to 90022005028)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

11

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

12

Echo 10020004630

CRANKCASE KIT
(Superseded to 10020004632)

$

$

Not available

13

------------------

N/A

$

$

Not available

14

Echo 30511004630

STAND
(Superseded to Discontinued)

$

$

Not available

15

------------------

N/A

$

$

Not available

16

Echo 10024204630

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

17

Echo 89001004630

PLATE, MODEL
(Superseded to Discontinued)

$

$

Not available

18

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

19

Echo 10061504630

GASKET, STARTER
(Superseded to 10061504631)

$1.49

$

Usually ships in 2-4 days

0
