SRM-202 DA - Echo String Trimmer Starter Parts Diagram

String Trimmer

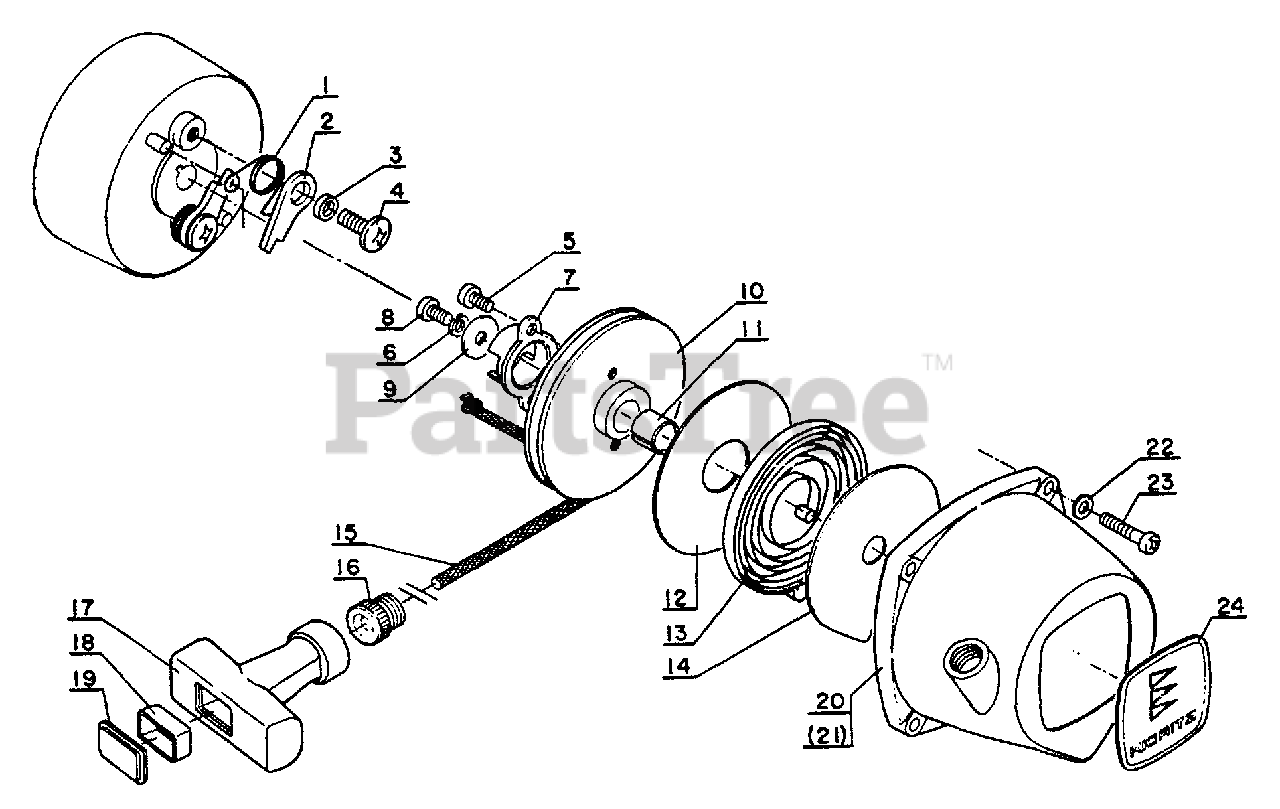

Starter Parts Diagram

  • Title

Echo 17720004630

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, only 3 left!

0

6

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

7

Echo 17724304630

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

8

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

9

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 8

0

10

Echo 17721504630

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

11

Echo 17721604630

BUSHING

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17724204630

PLATE, STARTER

$2.49

$

Usually ships in 2-4 days

0

13

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, only 3 left!

0

14

Echo 17722104630

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 7

0

16

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17722804630

GRIP, STARTER
(Superseded to 17722819830)

$4.99

$

Usually ships in 2-4 days

0

18

Echo 17722902830

RING, RETAINING

$1.99

$

Usually ships in 2-4 days

0

19

Echo 17724402830

CAP

$0.99

$

Usually ships in 2-4 days

0

20

Echo 17720904630

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

21

------------------

UNKNOWN

$

$

Not available

1

Echo 17723404631

SPRING, RETURN
(Superseded to 17723404632)

$1.49

$

In Stock, Qty 8

0

2

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 17724704630

SPACER

$1.99

$

In Stock, Qty 9

0

4

Echo 17721704630

SCREW
(Superseded to 90021605014)

$0.99

$

In Stock, Qty 20+

0

22

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

23

Echo 90022004020

SCREW - 4X20

$0.99

$

Usually ships in 2-4 days

0

24

Echo 89005306630

LABEL - KIORITZ
(Superseded to Discontinued)

$

$

Not available
