SRM-202 DA - Echo String Trimmer Gear Case Parts Diagram

String Trimmer

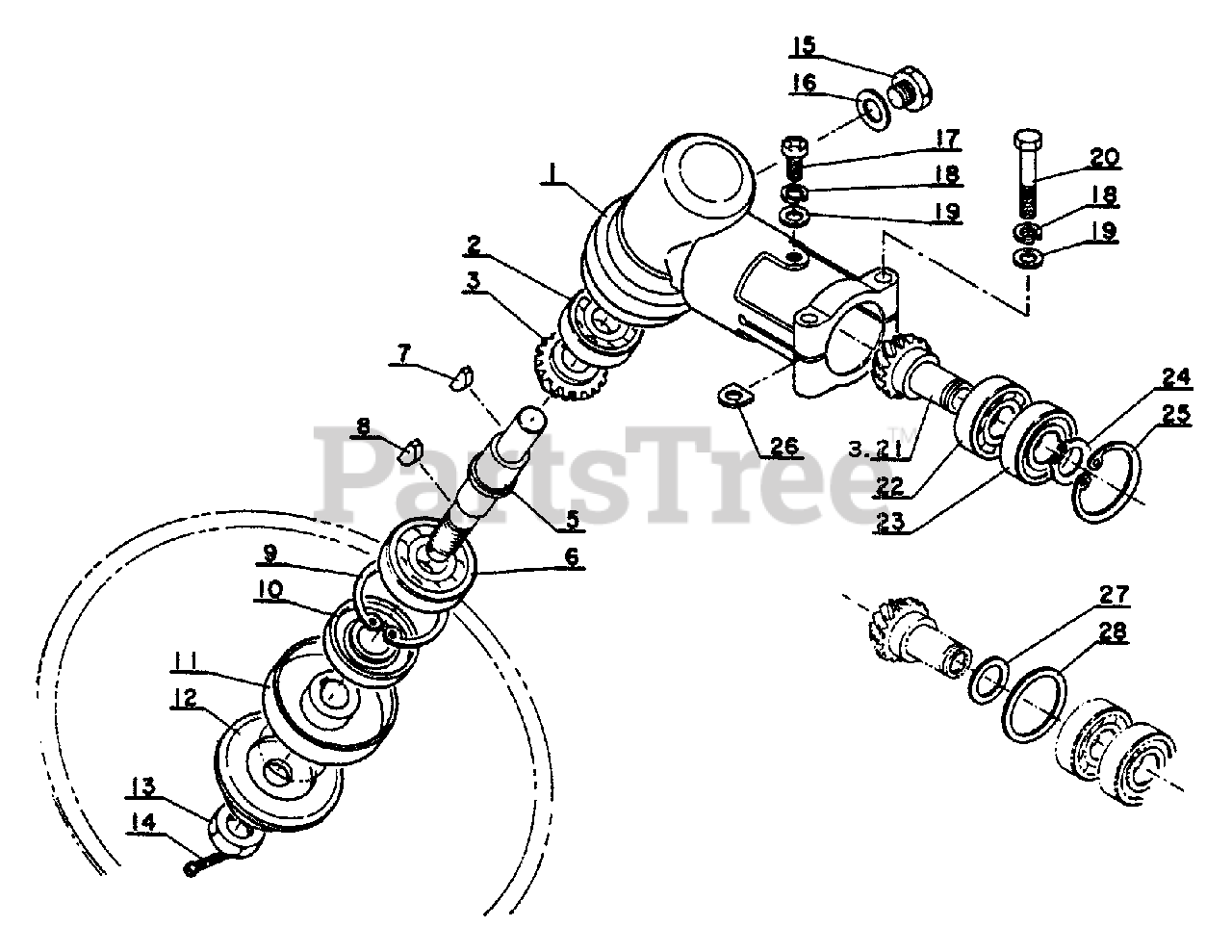

Gear Case Parts Diagram

  • Title

Echo 61040005331

GEAR CASE ASSY
(Superseded to 61040005332)

$

$

Not available

1

Echo 61041005331

CASE, GEAR
(Superseded to 61041005332)

$59.99

$

In Stock, only 1 left!

0

2

Echo 90080036000

BEARING, BALL - 6000

$11.99

$

Usually ships in 2-4 days

0

3

Echo 61030005331

GEAR SET
(Superseded to Discontinued)

$

$

Not available

21

Echo 61030005331

GEAR SET
(Superseded to Discontinued)

$

$

Not available

4

Echo 61031605330

WASHER
(Superseded to Discontinued)

$

$

Not available

5

Echo 61031005330

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

6

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

$2.99

$

Usually ships in 2-4 days

0

$1.49

$

Usually ships in 2-4 days

0

9

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 15

0

10

Echo 61041305330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

11

Echo 61031304130

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

12

Echo 61031404130

ADAPTOR, BLADE - LOWER
(Superseded to 61031404131)

$9.49

$

In Stock, only 2 left!

0

13

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 10

0

14

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010008006

BOLT - 8X6
(Superseded to Discontinued)

$

$

Not available

16

Echo 61051105330

GASKET
(Superseded to Discontinued)

$

$

Not available

22

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 6

0

23

Echo 90080106001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 4 left!

0

24

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

25

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

17

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 9

0

18

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

19

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

$0.99

$

In Stock, Qty 10

0

27

$0.99

$

Usually ships in 2-4 days

0

28

$0.99

$

Usually ships in 2-4 days

0
