SRM-202 DA - Echo String Trimmer Crankshaft Parts Diagram

String Trimmer

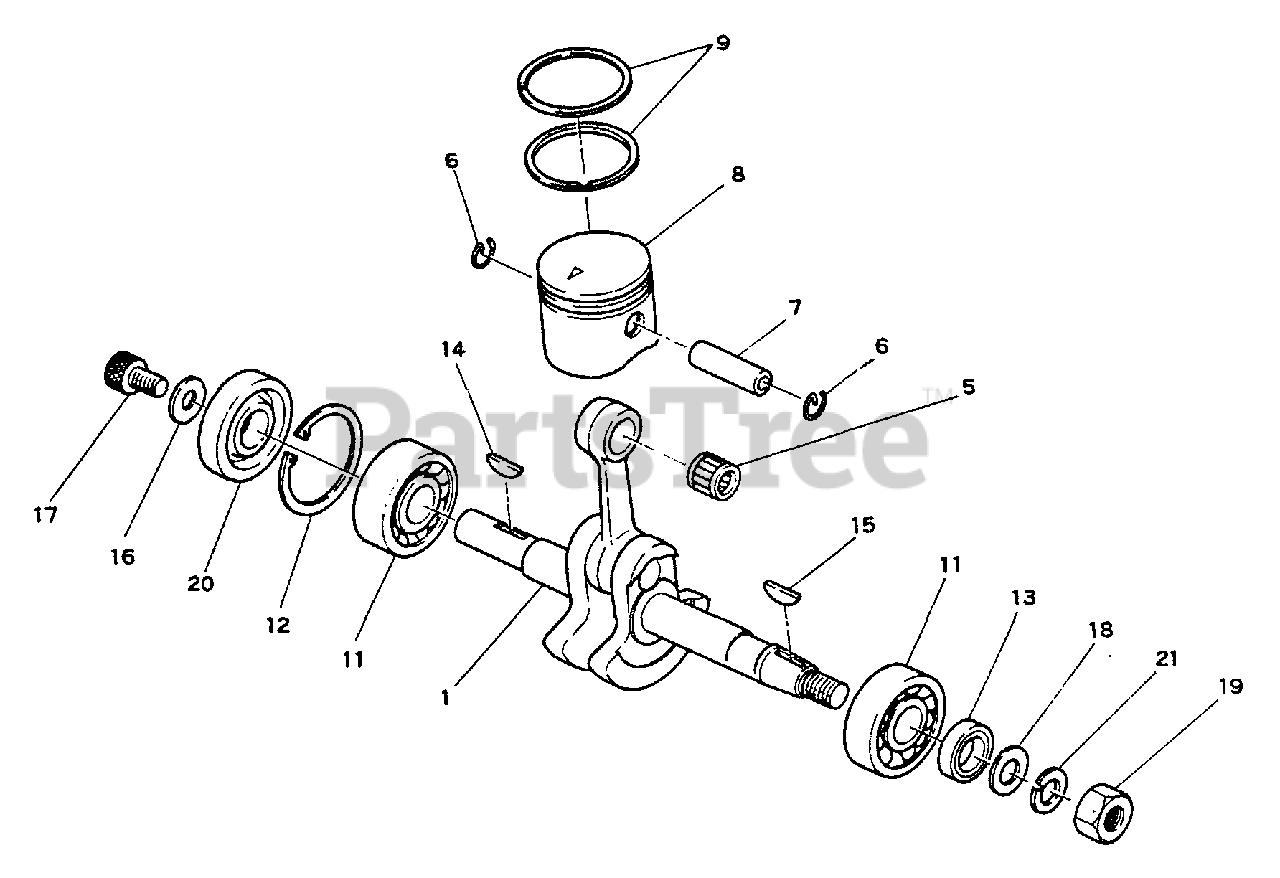

Crankshaft Parts Diagram

  • Title

1

Echo 10010005330

CRANKSHAFT ASSY
(Superseded to 10010005331)

$

$

Not available

5

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

6

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

7

Echo 10001304630

PIN, PISTON
(Superseded to 10001310210)

$6.99

$

Usually ships in 2-4 days

0

8

Echo 10001005330

PISTON
(Superseded to 10000005330)

$

$

Not available

9

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

11

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

12

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

13

Echo 10021204630

SEAL, OIL

$4.99

$

Usually ships in 2-4 days

0

14

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

15

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

16

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

17

Echo 90010506010

SCREW - 6X10

$1.49

$

In Stock, only 4 left!

0

18

Echo 10014304630

WASHER

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

20

Echo 10021203930

SEAL, OIL

$5.49

$

In Stock, only 2 left!

0

21

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0
