SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) L-Handle Parts Diagram

String Trimmer

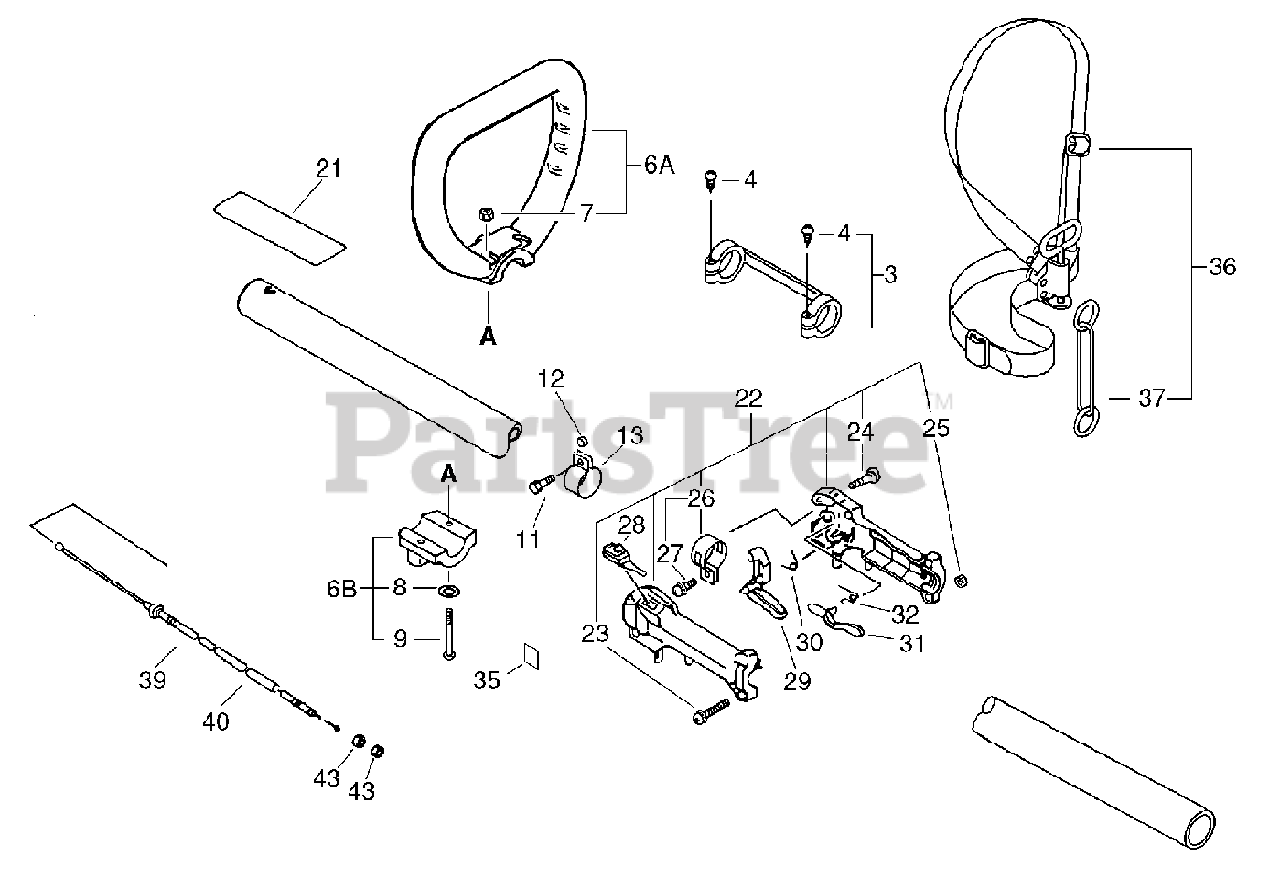

L-Handle Parts Diagram

  • Title

3

Echo 610281-46730

Coller

$

$

Not available

4

Echo 900253-04025

Screw 4*25

$0.99

$

In Stock, Qty 10

0

6

Echo 351201-08930

Handle Assy, Loop

$37.99

$

Usually ships in 2-4 days

0

7

Echo 900500-00005

Nut 5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 900600-00005

Washer 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 900220-05040

Screw 5*40

$0.99

$

In Stock, Qty 12

0

11

Echo 900100-05018

Bolt 5*18

$0.99

$

In Stock, Qty 10

0

12

Echo 699012-03330

Spacer

$1.49

$

In Stock, Qty 15

0

13

Echo 301207-08930

Hook

$4.99

$

In Stock, only 2 left!

0

21

Echo 890617-43130

Label,Caution

$22.99

$

Usually ships in 2-4 days

0

22

Echo 351102-29430

Grip Assy, F-Handle

$13.99

$

Usually ships in 2-4 days

0

23

Echo 900238-05025

Screw 5*25

$0.99

$

In Stock, Qty 20+

0

24

Echo 900253-04018

Screw Tapping 4*18

$

$

Currently unavailable

25

Echo 900500-00005

Nut 5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

26

Echo 301200-29430

Band Assy
(Superseded to 30120029431)

$9.49

$

In Stock, only 1 left!

0

27

Echo 900238-05012

Screw 5*12

$0.99

$

In Stock, Qty 8

0

28

Echo 163400-52130

Switch, Ignition

$

$

Currently unavailable

29

Echo 178010-42232

Control, Throttle

$5.49

$

In Stock, only 2 left!

0

30

Echo 178043-42230

Spring, Thr. Return

$0.99

$

In Stock, Qty 20+

0

31

Echo 178012-42230

Lockout, Throttle

$2.99

$

Usually ships in 2-4 days

0

32

Echo 178013-42230

Spring, Thr. Lockout

$1.99

$

Usually ships in 2-4 days

0

35

Echo 890157-39130

Label, Switch

$

$

Not available

36

Echo 301000-55231

Harness Asy,Shoulder

$

$

Currently unavailable

37

Echo 301305-24330

Link
(Superseded to 30130524330)

$10.99

$

Usually ships in 2-4 days

0

39

Echo 178001-52130

Wire, Throttle
(Superseded to Discontinued)

$

$

Not available

40

Echo 178127-24030

Tube

$0.99

$

In Stock, Qty 10

0

43

Echo 900502-00006

Nut 6 (3N)

$0.99

$

In Stock, only 3 left!

0
