SRM-201 F - Echo String Trimmer Starter Parts Diagram

String Trimmer

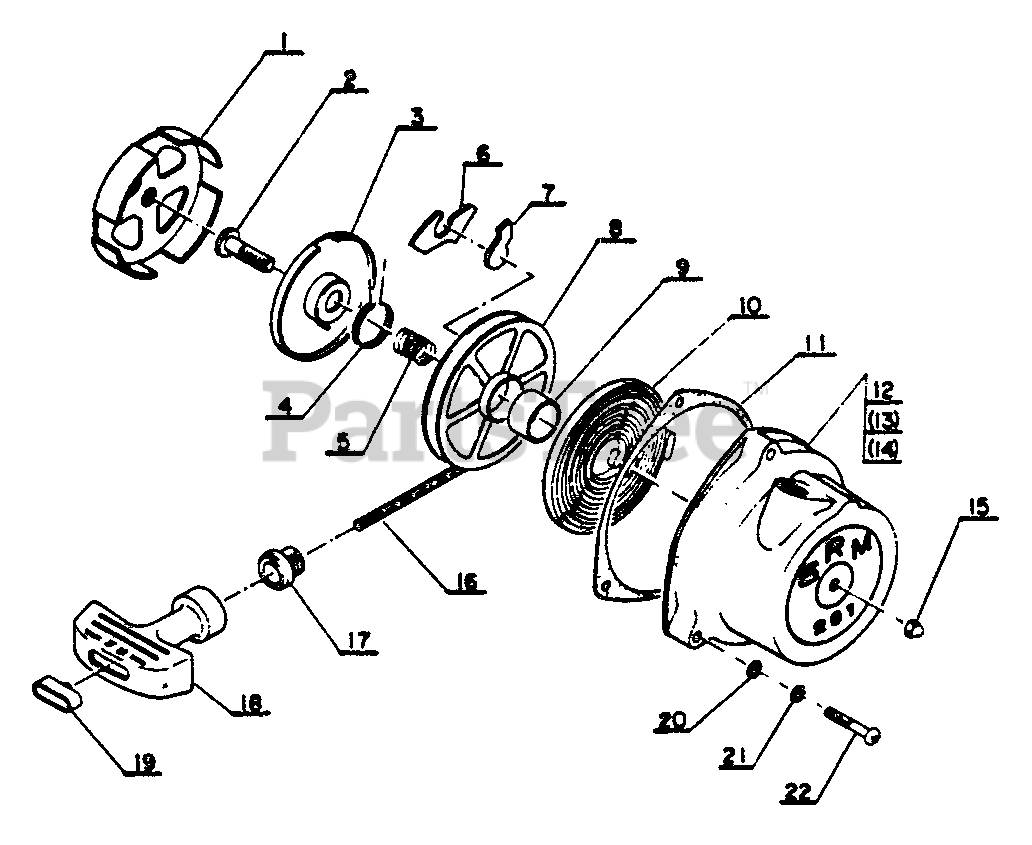

Starter Parts Diagram

  • Title

Echo HK1772000

STARTER ASSY

$

$

Currently unavailable

2

Echo CQ1772360

SCREW - SET

$

$

Currently unavailable

3

Echo HK1772110

RETAINER

$

$

Currently unavailable

4

Echo HK1772340

SPRING, REWIND

$

$

Currently unavailable

5

Echo HK1772330

SPRING

$

$

Currently unavailable

6

Echo HK1772390

CAM, RECOIL

$

$

Currently unavailable

7

Echo CN1772180

RATCHET

$

$

Currently unavailable

8

Echo HK1772154

REEL, ROPE

$

$

Currently unavailable

9

Echo HK1772400

SPACER

$

$

Currently unavailable

10

Echo HK1772200

SPRING, REWIND

$

$

Currently unavailable

12

Echo HK1772090

CASE, STARTER

$

$

Currently unavailable

13

------------------

N/A

$

$

Not available

14

------------------

N/A

$

$

Not available

15

Echo CQ1772370

NUT

$

$

Currently unavailable

16

Echo HK1772260

ROPE, STARTER

$

$

Currently unavailable

17

Echo HG1772270

GUIDE, ROPE

$

$

Currently unavailable

18

Echo CR1772280

GRIP, STARTER

$

$

Currently unavailable

19

Echo JC1772290

RETAINER, ROPE

$

$

Currently unavailable

1

Echo HK1772100

CATCHER, PAWL

$

$

Currently unavailable

11

Echo HK1006150

CASE, STARTER

$

$

Currently unavailable

20

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

21

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

22

Echo 90022004025

SCREW - 4X25

$0.99

$

In Stock, only 1 left!

0
