SRM-201 F - Echo String Trimmer Gear Case Parts Diagram

String Trimmer

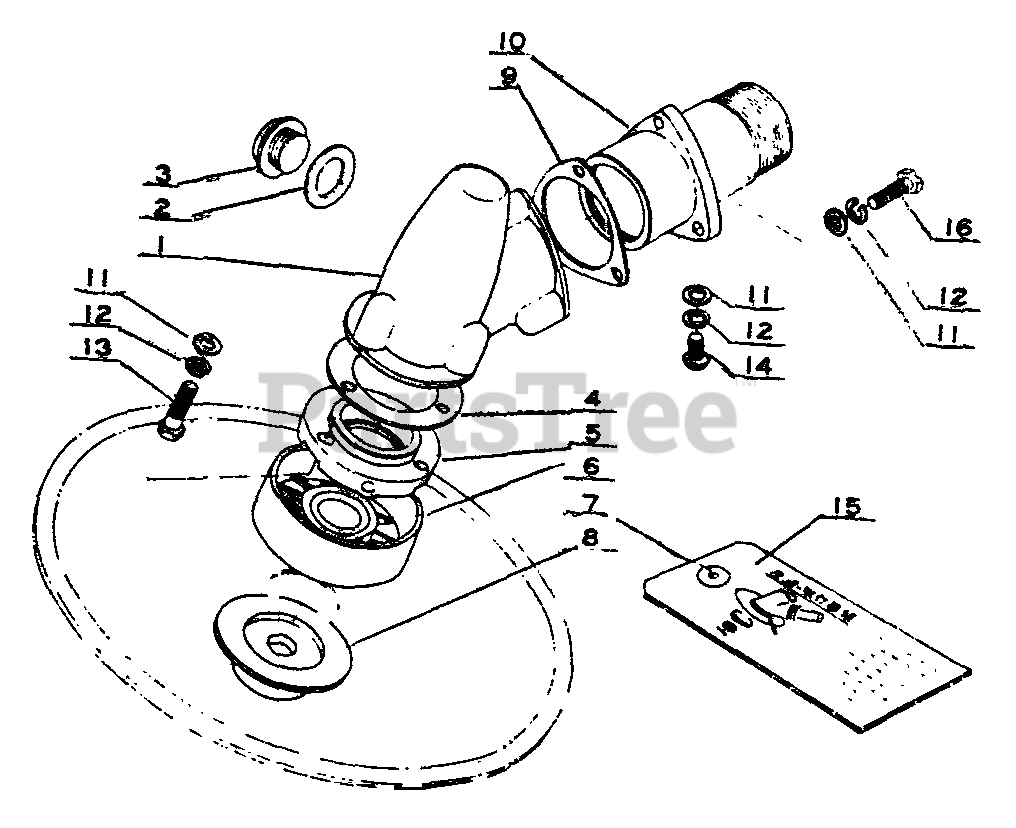

Gear Case Parts Diagram

  • Title

Echo EK6104000

GEAR CASE ASSY

$

$

Currently unavailable

1

Echo EK6104100

CASE, GEAR

$

$

Currently unavailable

2

Echo DC6105110

SEAL

$

$

Currently unavailable

3

Echo EA6105100

PLUG

$

$

Currently unavailable

4

Echo EN6104140

GASKET, GEAR CASE

$

$

Currently unavailable

5

Echo EN6104110

HOLDER, BEARING - B

$

$

Currently unavailable

6

Echo EN6103050

Fitting plate (A)

$

$

Currently unavailable

7

------------------

UNKNOWN

$

$

Not available

8

Echo EN6103140

Fitting plate (B)

$

$

Currently unavailable

9

Echo EN6104150

GASKET, GEAR CASE

$

$

Currently unavailable

10

Echo EN6104120

HOLDER, BEARING - A

$

$

Currently unavailable

11

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

13

Echo 90010005016

BOLT - 5X16

$0.99

$

Usually ships in 2-4 days

0

14

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

15

------------------

UNKNOWN

$

$

Not available

16

Echo 90022005018

SCREW - 5X18

$0.99

$

In Stock, Qty 5

0
