SRM-201 F - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

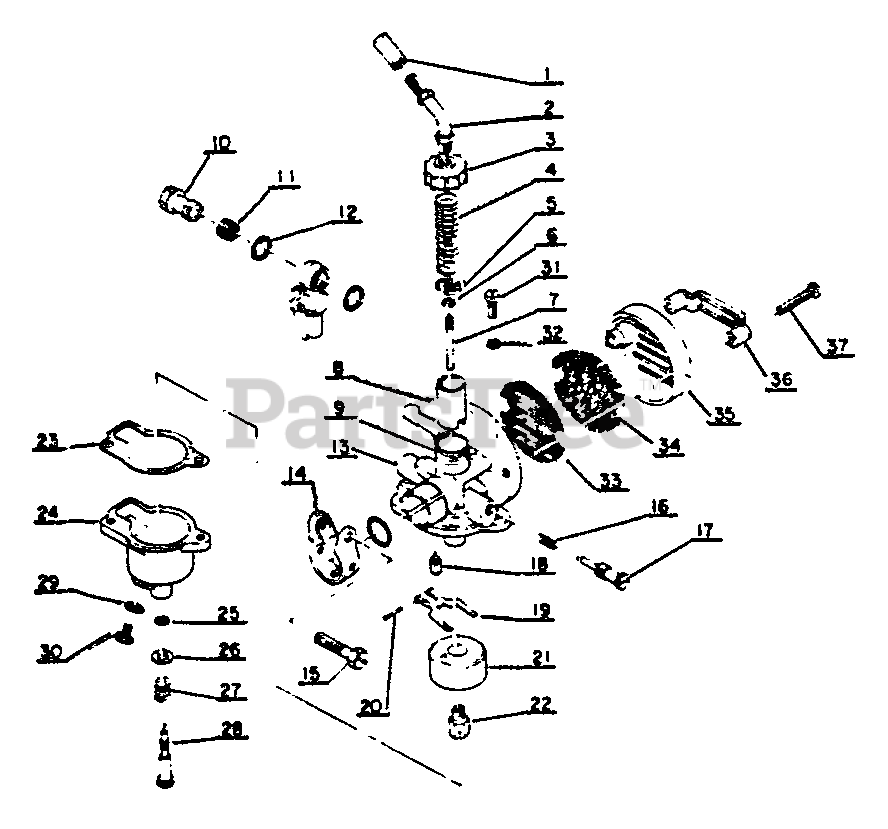

Carburetor Parts Diagram

  • Title

Echo HK1210000

CARBURETOR

$

$

Currently unavailable

1

Echo HK1211580

NUT, CABLE ADJUST

$

$

Currently unavailable

2

Echo HK1211680

GUIDE, CABLE

$

$

Currently unavailable

3

Echo HK1211130

COVER - TOP

$

$

Currently unavailable

4

Echo HK1211140

SPRING, THROTTLE

$

$

Currently unavailable

5

Echo HK1211150

SEAT, SPRING

$

$

Currently unavailable

6

Echo JD1211160

RING, RETAINING

$

$

Currently unavailable

7

Echo HK1211170

NEEDLE, JET

$

$

Currently unavailable

8

Echo HK1211180

VALVE, THROTTLE

$

$

Currently unavailable

9

------------------

UNKNOWN

$

$

Not available

10

Echo HK1211310

BOLT, BANJO

$

$

Currently unavailable

11

------------------

UNKNOWN

$

$

Not available

12

Echo JJ1211540

Packing, banjo bolt

$

$

Currently unavailable

13

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Echo HK1211470

Screw, outlet clip

$

$

Currently unavailable

16

Echo HK1211600

Spring, throttle stop screw

$

$

Currently unavailable

17

Echo HK1211590

Throttle stop screw

$

$

Currently unavailable

18

------------------

UNKNOWN

$

$

Not available

19

Echo JD1211210

Float arm

$

$

Currently unavailable

20

Echo JD1211320

Float pin

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Echo HK1211220

JET, MAIN

$

$

Currently unavailable

23

Echo JD1211230

Packing, float chumber

$

$

Currently unavailable

24

Echo CS1211240

Float chumber body

$

$

Currently unavailable

25

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Echo JD1211270

SPRING, METERING LEVER

$

$

Currently unavailable

28

Echo JD1211280

SPRING, METERING LEVER

$

$

Currently unavailable

29

$

$

Currently unavailable

30

Echo CR1211370

BOLT, DRAIN

$

$

Currently unavailable

31

$

$

Currently unavailable

32

------------------

UNKNOWN

$

$

Not available

33

Echo JD1303110

Net, cleaner

$

$

Currently unavailable

34

Echo JD1303100

Steel wool

$

$

Currently unavailable

35

Echo JD1303130

CASE, AIR FILTER

$

$

Currently unavailable

36

Echo HK1303210

PROTECTOR

$

$

Currently unavailable

37

Echo 90022004025

SCREW - 4X25

$0.99

$

In Stock, only 1 left!

0
