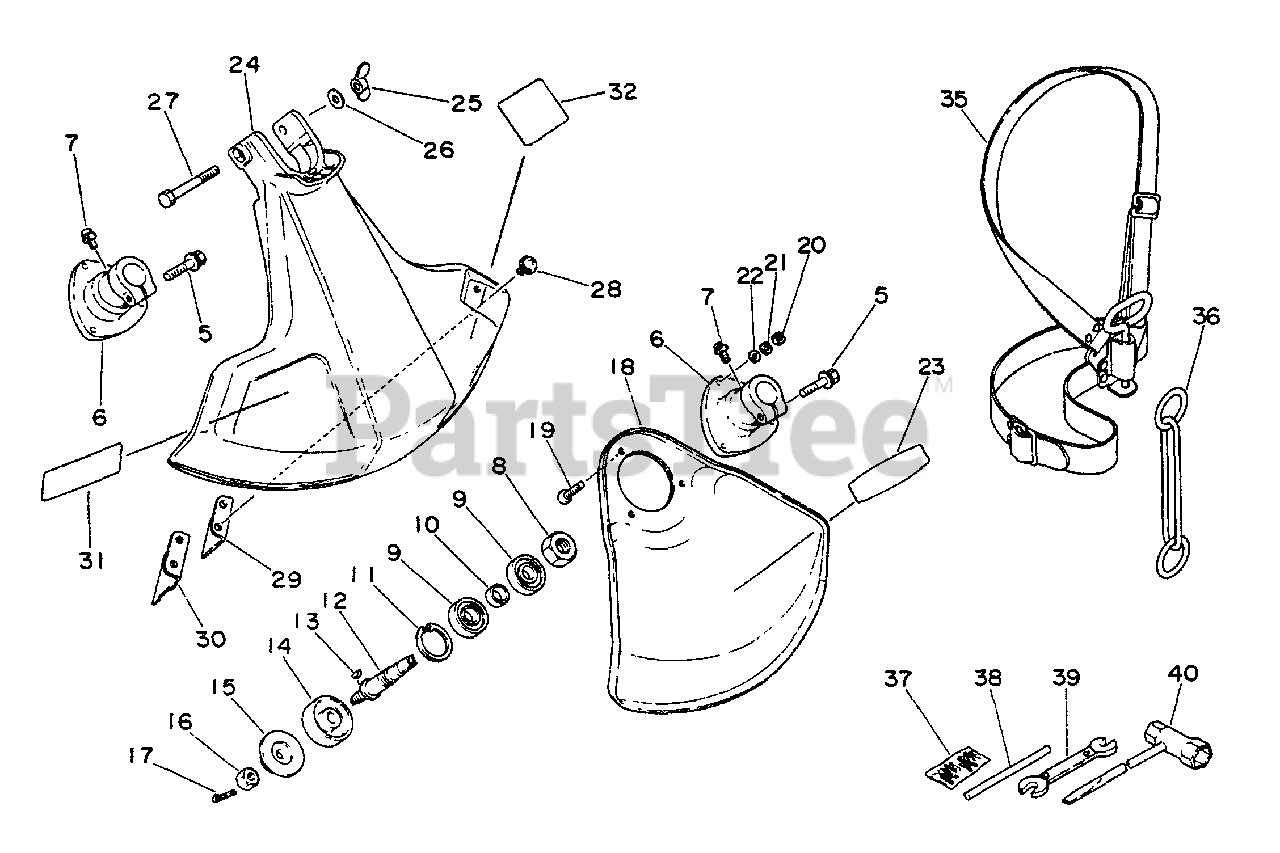

SRM-2000 - Echo String Trimmer Shield, Gear Case, Harness, Tools Parts Diagram

String Trimmer

Shield, Gear Case, Harness, Tools Parts Diagram

  • Title
6

Echo 61040023330

GEAR CASE ASSY

$168.99

$

Usually ships in 2-4 days

0

5

Echo 90015205025

BOLT - 5X25

$1.49

$

In Stock, Qty 9

0

6

Echo 61041023330

CASE, BEARING
(Superseded to Discontinued)

$

$

Not available

7

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

8

Echo 90051300012

NUT - 12 -- LEFT HAND

$2.49

$

Usually ships in 2-4 days

0

9

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 4 left!

0

10

$1.49

$

Usually ships in 2-4 days

0

11

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

12

Echo 61031023330

GEAR - SHAFT
(Superseded to Discontinued)

$

$

Not available

$1.49

$

Usually ships in 2-4 days

0

14

Echo 61031306530

ADAPTOR, BLADE - UPPER

$15.99

$

Usually ships in 2-4 days

0

15

Echo 61031406030

ADAPTOR, BLADE - LOWER
(Superseded to Discontinued)

$

$

Not available

16

Echo 61032023330

NUT - 3/8-24

$2.49

$

Usually ships in 2-4 days

0

17

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

18

Echo 69901007330

SHIELD, DEBRIS
(Superseded to Discontinued)

$

$

Not available

19

Echo 90022004018

SCREW - 4X18

$0.99

$

In Stock, only 3 left!

0

20

$0.99

$

In Stock, Qty 20+

0

21

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

22

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

23

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 8

0

24

Echo 69900040630

SHIELD, DEBRIS - PLASTIC
(Superseded to 69900440630)

$19.99

$

In Stock, only 1 left!

0

25

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

26

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

27

Echo 90010006050

BOLT - 6X50

$0.99

$

In Stock, Qty 5

0

28

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

29

Echo 69901623230

KNIFE, TRIMMER LINE
(Superseded to 69901623231)

$1.99

$

In Stock, only 3 left!

0

30

Echo 69921223230

GUARD
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

31

Echo 89013840630

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 8

0

32

Echo 89017740730

LABEL - CAUTION

$1.49

$

In Stock, only 1 left!

0

35

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

$82.99

$

Usually ships in 2-4 days

0

$10.99

$

Usually ships in 2-4 days

0

37

Echo 89850201130

PIN, SPLIT - 2X22

Note: 10pcs.

$1.99

$

In Stock, only 2 left!

0

38

Echo 89751801131

LOCKING TOOL

$

$

Not available

39

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

40

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0
