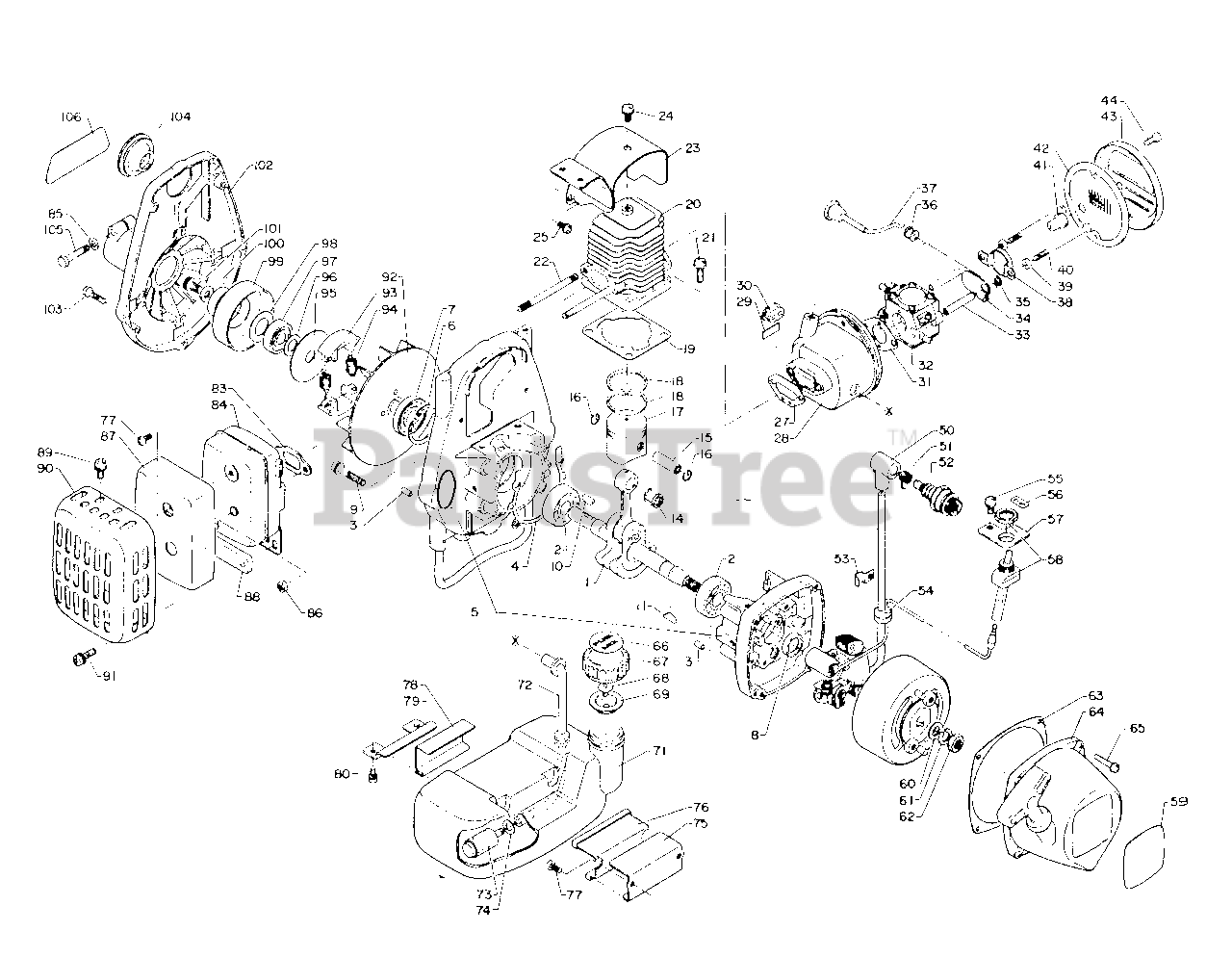

SRM-200 D - Echo String Trimmer Engine, Crankcase, Stop Switch Parts Diagram

String Trimmer

Engine, Crankcase, Stop Switch Parts Diagram

  • Title

1

Echo 10010005331

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

3

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

4

Echo 10024204630

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10020006130

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

6

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

7

Echo 10021203930

SEAL, OIL

$5.49

$

In Stock, only 2 left!

0

8

Echo 10021204630

SEAL, OIL

$4.99

$

Usually ships in 2-4 days

0

9

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

10

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

11

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

15

Echo 10001310210

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

16

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

17

Echo 10001005330

PISTON
(Superseded to 10000005330)

$

$

Not available

18

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

19

Echo 10101004630

GASKET, CYLINDER
(Superseded to 10101004631)

$

$

Not available

20

Echo 10101105330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90024005016

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

22

Echo 10101404930

STUD

$2.49

$

Usually ships in 2-4 days

0

23

Echo 10151405230

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

24

Echo 90024005010

SCREW - 5X10

$0.99

$

Usually ships in 2-4 days

0

25

Echo 90024004008

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

27

Echo 13001005330

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

28

Echo 13030605230

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

29

Echo 89004104320

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

30

Echo 12901005230

GROMMET

$1.49

$

Usually ships in 2-4 days

0

31

Echo 13001604630

GASKET, INTAKE
(Superseded to 13001604631)

$0.99

$

In Stock, Qty 8

0

32

12300005230

CARBURETOR WA-21

$

$

Not available

33

Echo 13001903930

SPACER
(Superseded to Discontinued)

$

$

Not available

34

Echo 17851504630

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

35

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

36

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 8

0

37

Echo 17851005230

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

38

Echo 12901104630

PLATE, PREVENT

$2.99

$

In Stock, only 1 left!

0

39

Echo 13002903930

SPACER

$

$

Not available

40

Echo 13002103930

BOLT

$1.49

$

In Stock, Qty 6

0

41

Echo 12901504320

GROMMET
(Superseded to Discontinued)

$

$

Not available

42

Echo 13031004320

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

43

Echo 13031304320

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

44

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

50

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

51

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 18

0

52

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

53

Echo 15911004630

CLAMP
(Superseded to Discontinued)

$

$

Not available

54

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

55

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, only 4 left!

0

56

Echo 89015711130

LABEL - STOP

$0.99

$

In Stock, Qty 7

0

57

Echo 16381006130

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

58

Echo 16340006130

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

59

Echo 89001200601

LABEL - ECHO

$

$

Currently unavailable

60

Echo 10014304630

WASHER

$0.99

$

Usually ships in 2-4 days

0

61

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

62

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

63

Echo 10061504630

GASKET, STARTER
(Superseded to 10061504631)

$1.49

$

Usually ships in 2-4 days

0

64

Echo 17720004630

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

65

Echo 90024004020

SCREW - 4X20

$0.99

$

Usually ships in 2-4 days

0

66

Echo 89015403930

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

Echo 13100404931

CAP ASSY
(Superseded to 13160022130)

Note: Includes ITEMS 67 - 69

$

$

Not available

67

Echo 13101704930

CAP
(Superseded to Discontinued)

$

$

Not available

68

Echo 13131400330

VENT

$11.99

$

In Stock, only 1 left!

0

69

Echo 13101504931

HOLDER, VENT
(Superseded to Discontinued)

$

$

Not available

71

Echo 13101005230

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

72

Echo 13201005230

PIPE - FUEL
(Superseded to 13201005231)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

73

Echo 13120500830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0

74

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

75

Echo 13191804630

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

76

Echo 13192405330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

77

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, only 3 left!

0

78

Echo 13192005330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

79

Echo 13191005330

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

80

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

83

Echo 14551004630

GASKET, EXHAUST

$2.49

$

Usually ships in 2-4 days

0

84

Echo 14561005230

MUFFLER
(Superseded to Discontinued)

$

$

Not available

85

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

86

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

87

Echo 14566705230

INSULATOR
(Superseded to Discontinued)

$

$

Not available

88

Echo 14571405230

SPACER
(Superseded to Discontinued)

$

$

Not available

89

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

90

Echo 14562105231

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

91

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

92

Echo 10150004630

FAN
(Superseded to Discontinued)

$

$

Not available

93

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$21.99

$

In Stock, only 2 left!

0

94

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

95

Echo 17501904630

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

96

Echo 17501504630

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

97

Echo 90080806000

BEARING, BALL - 6000
(Superseded to Discontinued)

$

$

Not available

98

Echo 17504404630

WASHER, CLUTCH

$1.49

$

Usually ships in 2-4 days

0

99

Echo 17501004632

DRUM, CLUTCH
(Superseded to 17501004633)

$30.99

$

Usually ships in 2-4 days

0

100

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

101

Echo 90010506010

SCREW - 6X10

$1.49

$

In Stock, only 4 left!

0

102

Echo 10151104631

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

103

Echo 90024004018

SCREW - 4X18
(Superseded to 90024204018)

$0.99

$

In Stock, Qty 7

0

104

Echo 15901504630

SEAL, DUST

$1.99

$

Usually ships in 2-4 days

0

105

Echo 90010005025

BOLT - 5X25

$2.99

$

Usually ships in 2-4 days

0

106

Echo 89013506830

LABEL - NAME
(Superseded to Discontinued)

$

$

Not available
