SRM-200 D - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

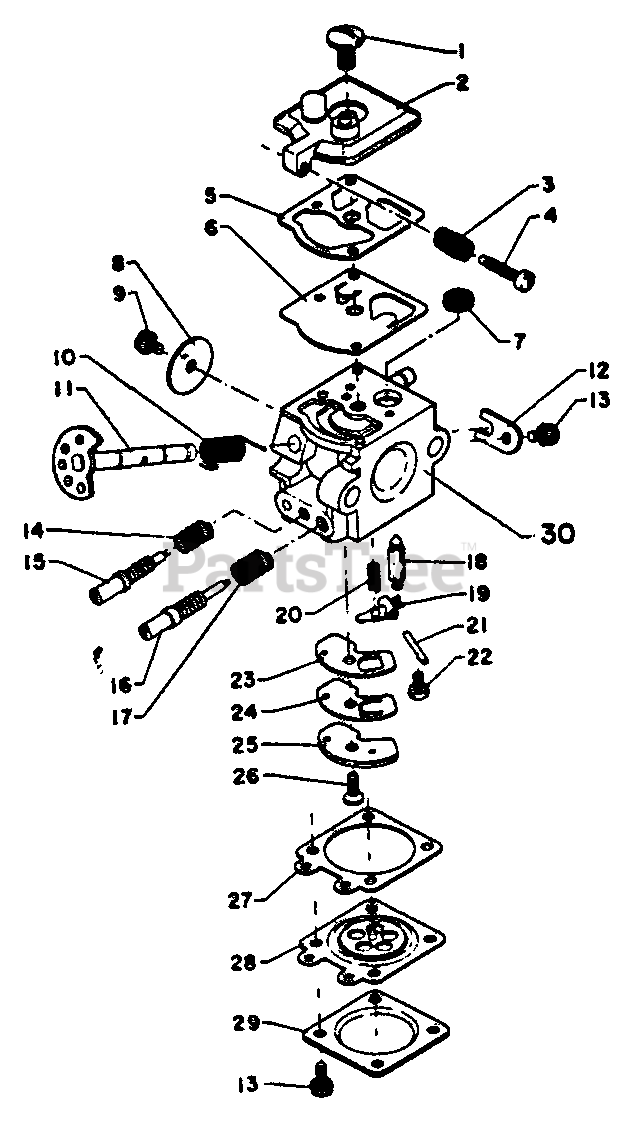

  • Title

12300005230

CARBURETOR WA-21

Note: Includes ITEMS 1-30

$

$

Not available

1

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

2

Echo 12312403930

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

3

Echo 12313303930

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

4

Echo 12313403930

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

5

Echo 12312503930

GASKET, PUMP

$1.99

$

In Stock, Qty 20+

0

6

Echo 12311203930

DIAPHRAGM, PUMP

$3.49

$

In Stock, Qty 10

0

7

Echo 12312603930

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

8

Echo 12311605230

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

$1.49

$

In Stock, Qty 13

0

10

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

11

Echo 12311703930

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

12

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

13

$0.99

$

In Stock, Qty 9

0

14

Echo 12312103930

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 5

0

15

Echo 12311806230

NEEDLE - LOW SPEED

$4.49

$

Usually ships in 2-4 days

0

16

Echo 12312005230

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

17

$1.49

$

In Stock, only 4 left!

0

18

Echo 12313703930

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

19

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

20

Echo 12312203930

SPRING, METERING LEVER

$

$

Not available

21

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

22

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

23

Echo 12316403930

GASKET, CIRCUIT PLATE

$1.99

$

In Stock, only 4 left!

0

24

Echo 12316503930

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

25

Echo 12316603930

PLATE, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

26

Echo 12316705230

SCREW, CIRCUIT PLATE

$0.99

$

In Stock, only 1 left!

0

27

Echo 12314003930

GASKET, METERING

$1.99

$

In Stock, Qty 6

0

28

Echo 12314103930

DIAPHRAGM, METERING

$13.99

$

In Stock, Qty 6

0

29

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

30

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
