SRM-200 CE - Echo String Trimmer Fuel System Parts Diagram

String Trimmer

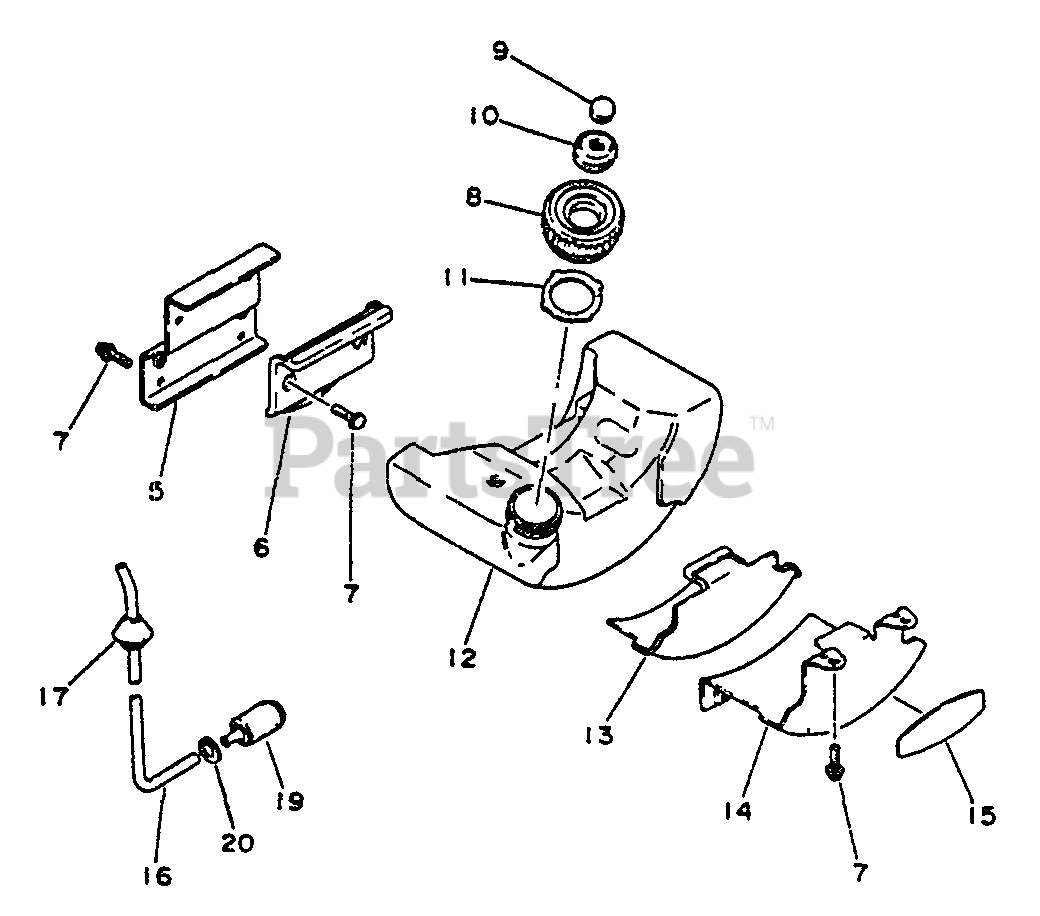

Fuel System Parts Diagram

  • Title

5

Echo 13191009220

BRACKET, FUEL TANK

$7.49

$

Usually ships in 2-4 days

0

6

Echo 13192009220

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

7

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

8

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

Note: Includes items 9, 10 and 11

$

$

Not available

9

Echo 13131505020

FILTER

$0.99

$

In Stock, Qty 7

0

10

Echo 13131406320

VENT

$5.49

$

In Stock, only 4 left!

0

11

Echo 13101604920

GASKET, CAP

$

$

Not available

12

Echo 13101009220

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

13

Echo 13192409220

CUSHION

$4.49

$

Usually ships in 2-4 days

0

14

Echo 13191841230

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

15

Echo 89011824030

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

16

Echo 13200709220

PIPE, FUEL - 3X6X135
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

17

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

19

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

20

Echo 43741119830

CLIP - 6.6

$0.99

$

Usually ships in 2-4 days

0
