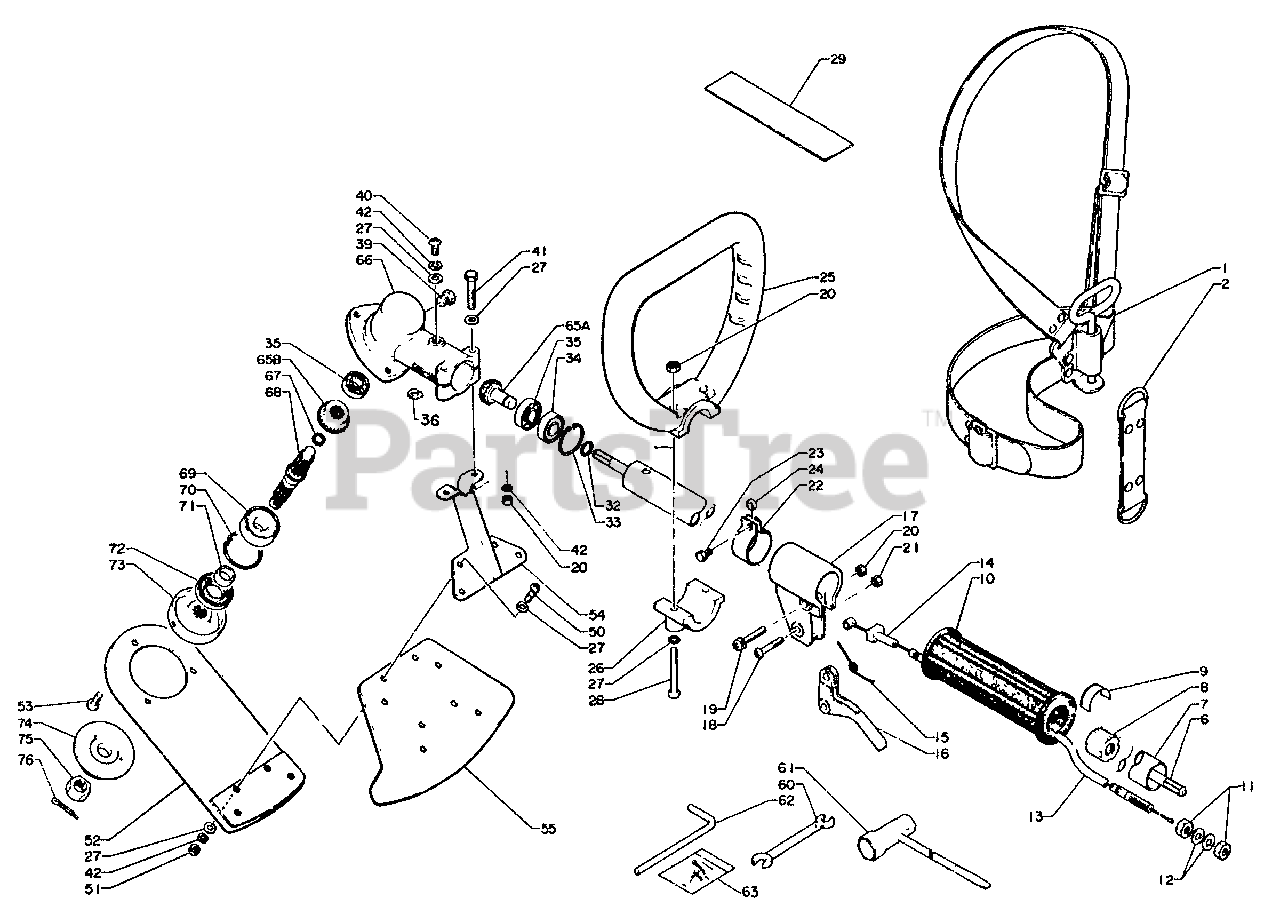

SRM-200 AE - Echo String Trimmer Driveshaft, Handles, Harness, Throttle, Gear Case, Shield, Tools Parts Diagram

String Trimmer

Driveshaft, Handles, Harness, Throttle, Gear Case, Shield, Tools Parts Diagram

  • Title

1

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

$82.99

$

Usually ships in 2-4 days

0

2

Echo 30130507530

STRAP
(Superseded to Discontinued)

$

$

Not available

6

Echo 61001108930

DRIVESHAFT

$50.99

$

Usually ships in 2-4 days

0

7

Echo 61020608930

MAIN PIPE ASSY
(Superseded to 61020622830)

$

$

Not available

8

Echo 61010508930

STOPPER
(Superseded to Discontinued)

$

$

Not available

9

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

10

Echo 35101208930

GRIP
(Superseded to Discontinued)

$

$

Not available

11

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

12

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

13

Echo 17800108930

CABLE, THROTTLE
(Superseded to 17800108931)

$

$

Not available

14

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 15

0

15

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

16

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.49

$

In Stock, Qty 20+

0

17

Echo 17802408930

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

18

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

19

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

20

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

22

Echo 30120708930

CLAMP

$4.99

$

In Stock, only 2 left!

0

23

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

24

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0

25

Echo 35120108930

LOOP HANDLE ASSY

$37.99

$

Usually ships in 2-4 days

0

26

Echo 35120108930

LOOP HANDLE ASSY

$37.99

$

Usually ships in 2-4 days

0

20

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

27

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

28

Echo 90022005040

SCREW - 5X40

$0.99

$

In Stock, Qty 12

0

29

Echo 89016020330

LABEL - CAUTION
(Superseded to 89016024230)

$3.99

$

Usually ships in 2-4 days

0

Echo 69900020230

SHIELD ASSY
(Superseded to Discontinued)

$

$

Not available

27

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

42

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

50

Echo 90022005014

SCREW - 5X14

$0.99

$

In Stock, Qty 7

0

51

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.49

$

Usually ships in 2-4 days

0

52

Echo 69900620230

BRACKET

$13.99

$

Usually ships in 2-4 days

0

54

Echo 69901520230

BRACKET, SHIELD

$10.99

$

Usually ships in 2-4 days

0

53

------------------

UNKNOWN

$

$

Not available

55

Echo 69901020230

SHIELD, DEBRIS
(Superseded to Discontinued)

$

$

Not available

Echo 61040208932

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

20

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

27

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

32

Echo 61033708930

RING, RETAINING
(Superseded to 90070600009)

$1.49

$

In Stock, Qty 17

0

33

Echo 90070200025

RING, RETAINING - 25

$1.99

$

In Stock, Qty 5

0

34

Echo 90080300609

BEARING, BALL - 609

$15.99

$

Usually ships in 2-4 days

0

35

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 11

0

36

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

39

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

40

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

41

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

42

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

65

Echo 61030108930

GEAR SET

$129.99

$

Usually ships in 2-4 days

0

65A

Echo 61030108930

GEAR SET

Note: See Ref No. 65, Gear set, P/N 61030108930

$129.99

$

Usually ships in 2-4 days

0

65B

Echo 61030108930

GEAR SET

Note: See Ref No. 65, Gear set, P/N 61030108930

$129.99

$

Usually ships in 2-4 days

0

66

Echo 61046008930

CASE, GEAR
(Superseded to 61046008931)

$

$

Not available

67

Echo 61033507130

RING, RETAINING - 12
(Superseded to 90070600012)

$1.49

$

In Stock, Qty 10

0

68

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

69

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

70

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

71

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 5

0

72

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

73

Echo 61033808930

ADAPTOR, BLADE - UPPER
(Superseded to C535000160)

$10.99

$

In Stock, Qty 18

0

74

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, only 2 left!

0

75

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 6

0

76

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

60

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

61

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

62

Echo 89751801131

LOCKING TOOL

$

$

Not available

63

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 2 left!
