SRM-1501 - Echo String Trimmer (SN: 0135001 - 9999999) Gear Case, Debris Shield, Tools Parts Diagram

String Trimmer

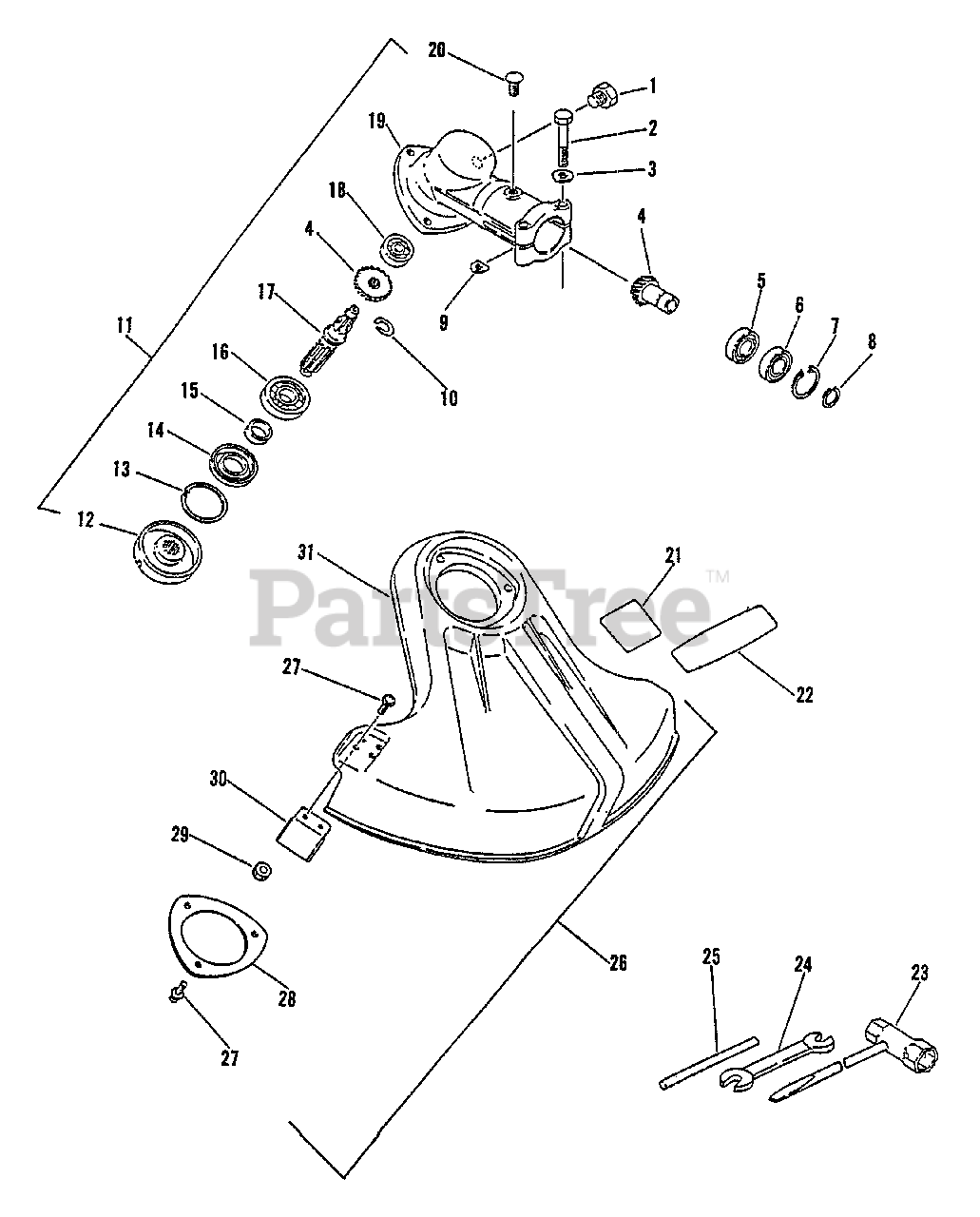

Gear Case, Debris Shield, Tools Parts Diagram

  • Title
1

Echo 90010008008

Bolt 8X8

$0.99

$

In Stock, Qty 11

0

2

Echo 90010005035

Bolt 5X35

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 61030044830

Gear Set, Bevel

$88.99

$

Usually ships in 2-4 days

0

5

Echo 90085506900

Bearing, Ball 6900

$18.99

$

In Stock, Qty 5

0

6

Echo 90085806900

Bearing, Ball 6900

$22.99

$

In Stock, Qty 6

0

7

Echo 90070200022

Circlip 22

$1.99

$

In Stock, Qty 5

0

8

Echo 90070600012

Circlip 12

$1.49

$

In Stock, Qty 6

0

9

Echo 61023904130

Washer Shim

$0.99

$

In Stock, Qty 10

0

10

Echo 90070600010

Circlip 10

$1.49

$

In Stock, Qty 20+

0

11

Echo 61040247731

Housing Asy, Gear
(Superseded to 61040247732)

Note: Includes Items 1-10, 12-20

$98.99

$

Usually ships in 2-4 days

0

12

Echo 61031347731

Plate, Adapter (U)

$12.99

$

In Stock, Qty 18

0

13

Echo 90070200032

Circlip 32

$1.99

$

In Stock, Qty 13

0

14

$5.99

$

In Stock, Qty 11

0

15

$3.99

$

In Stock, Qty 5

0

16

Echo 90081006201

Bearing, Ball 6201

$6.99

$

Usually ships in 2-4 days

0

17

Echo 61036008931

Shaft, P.T.O.
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

18

Echo 90080000609

Bearing, Ball 609

$9.99

$

In Stock, Qty 11

0

19

Echo 61046027430

Housing, Gear
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

20

Echo 90024205010

Screw 5X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 89016844830

Label, Caution

$3.49

$

Usually ships in 2-4 days

0

22

Echo 89011848830

Label, Echo
(Superseded to X502000320)

$0.99

$

In Stock, Qty 8

0

23

Echo 89541008030

Wrench, W\Screwdriver
(Superseded to X602000020)

$3.49

$

In Stock, Qty 20+

0

24

Echo 89511200330

Spanner 8X10

$0.99

$

In Stock, only 3 left!

0

25

Echo 89751801131

Locking Tool

$

$

Not available

26

Echo 69900440931

Shield Asy

Note: Includes Items 27-31

$25.99

$

In Stock, only 4 left!

0

27

Echo 90024205016

Screw 5X16

$0.99

$

In Stock, Qty 20+

0

28

Echo 69901840830

Brakcet, Shield
(Superseded to C552000110)

$2.49

$

In Stock, Qty 13

0

29

$0.99

$

In Stock, Qty 20+

0

30

Echo 69901644330

Knife, Cord
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

31

Echo 69901027231

Shield, Blade

$7.99

$

Usually ships in 2-4 days

0
