SRM-1501 - Echo String Trimmer (SN: 0135001 - 9999999) Fuel System, Main Pipe, Support Handle, Throttle Control Parts Diagram

String Trimmer

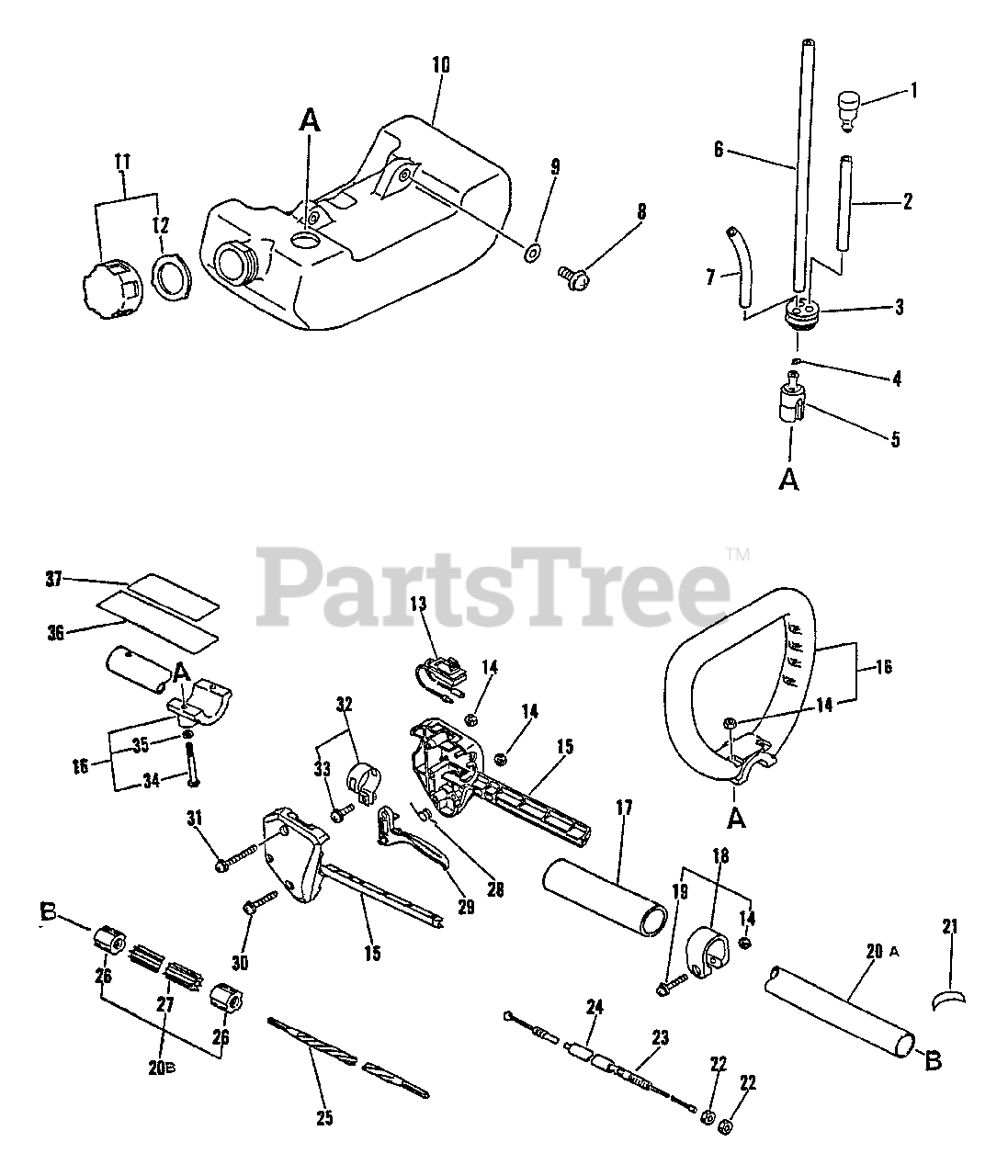

Fuel System, Main Pipe, Support Handle, Throttle Control Parts Diagram

  • Title

1

Echo 13130040630

Vent Asy
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 9

0

2

Echo 13131244330

Pipe 3X5X70
(Superseded to 13131239130)

$1.99

$

In Stock, Qty 20+

0

3

Echo 13211546730

Grommet, Fuel

$1.99

$

In Stock, Qty 20+

0

4

Echo 13201309820

Clip

$0.99

$

In Stock, Qty 20+

0

5

Echo 13120507320

Strainer, Fuel
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

6

Echo 13201013930

Pipe, Fuel
(Superseded to V471001190)

$1.49

$

In Stock, Qty 20+

0

7

Echo 13201251030

Pipe 3X5X90
(Superseded to 13201056330)

$2.99

$

In Stock, Qty 20+

0

8

Echo 90023805016

Screw 5X16

$0.99

$

In Stock, Qty 20+

0

9

Echo 13100544330

Washer 5
(Superseded to 13100544331)

$20.99

$

In Stock, only 1 left!

0

10

Echo 13100448730

Tank, Fuel
(Superseded to 13100455830)

$4.49

$

In Stock, only 1 left!

0

11

Echo 13100448730

Cap Asy, Fuel
(Superseded to 13100455830)

Note: Includes Item 12

$4.49

$

In Stock, only 1 left!

0

12

Echo 13101640930

Gasket, Fuel Tank Cap

$2.99

$

In Stock, Qty 19

0

13

Echo 16340049230

Switch, Igniton
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 7

0

14

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 17800352130

Bracket Set, Throttle

Note: Includes Items 14, 30-31

$4.99

$

In Stock, only 1 left!

0

16

Echo 35120108930

Handle Asy, Loop

Note: Includes Items 14, 34-35

$37.99

$

Usually ships in 2-4 days

0

17

Echo 35121352130

Grip, Front Handle

$9.49

$

In Stock, only 2 left!

0

18

Echo 61027252130

Band 25

Note: Includes Items 14, 19

$9.99

$

In Stock, only 1 left!

0

19

Echo 90024205030

Screw 5X16

$0.99

$

In Stock, only 2 left!

0

20

Echo 61060944730

Housing Asy, Driveshaft

Note: Includes Items 25-27

$51.99

$

Usually ships in 2-4 days

0

21

Echo 89015204930

Label, Caution

$0.99

$

In Stock, Qty 9

0

22

Echo 90050200006

Nut 6(3)

$0.99

$

In Stock, only 3 left!

0

23

Echo 17800144430

Wire, Throttle

$10.99

$

In Stock, only 1 left!

0

24

Echo 17812750330

Tube

$1.49

$

In Stock, Qty 5

0

25

Echo 61001344730

Shaft, Flexible
(Superseded to C506000390)

$16.99

$

In Stock, only 3 left!

0

26

Echo 61024644730

Fixture, Liner

$1.49

$

In Stock, Qty 20+

0

27

Echo 61021744730

Liner, Flexible
(Superseded to C507000260)

$25.99

$

Usually ships in 2-4 days

0

28

Echo 17804342230

Spring, Throttle Return

$0.99

$

In Stock, Qty 20+

0

29

Echo 17801052130

Contorl, Throttle

$3.49

$

In Stock, Qty 20+

0

30

Echo 90024205025

Screw 5X25

$0.99

$

In Stock, Qty 20+

0

31

Echo 90024205035

Screw 5X35

$0.99

$

In Stock, Qty 20+

0

32

Echo 30120029430

Band
(Superseded to 30120029431)

Note: Includes Item 33

$9.49

$

In Stock, only 1 left!

0

33

Echo 90024205014

Screw 5X14

$0.99

$

In Stock, Qty 20+

0

34

Echo 90022005040

Screw 5X140

$0.99

$

In Stock, Qty 12

0

35

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

36

Echo 89016047630

Label, Caution
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

37

Echo 89016044430

Label, Caution
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days
