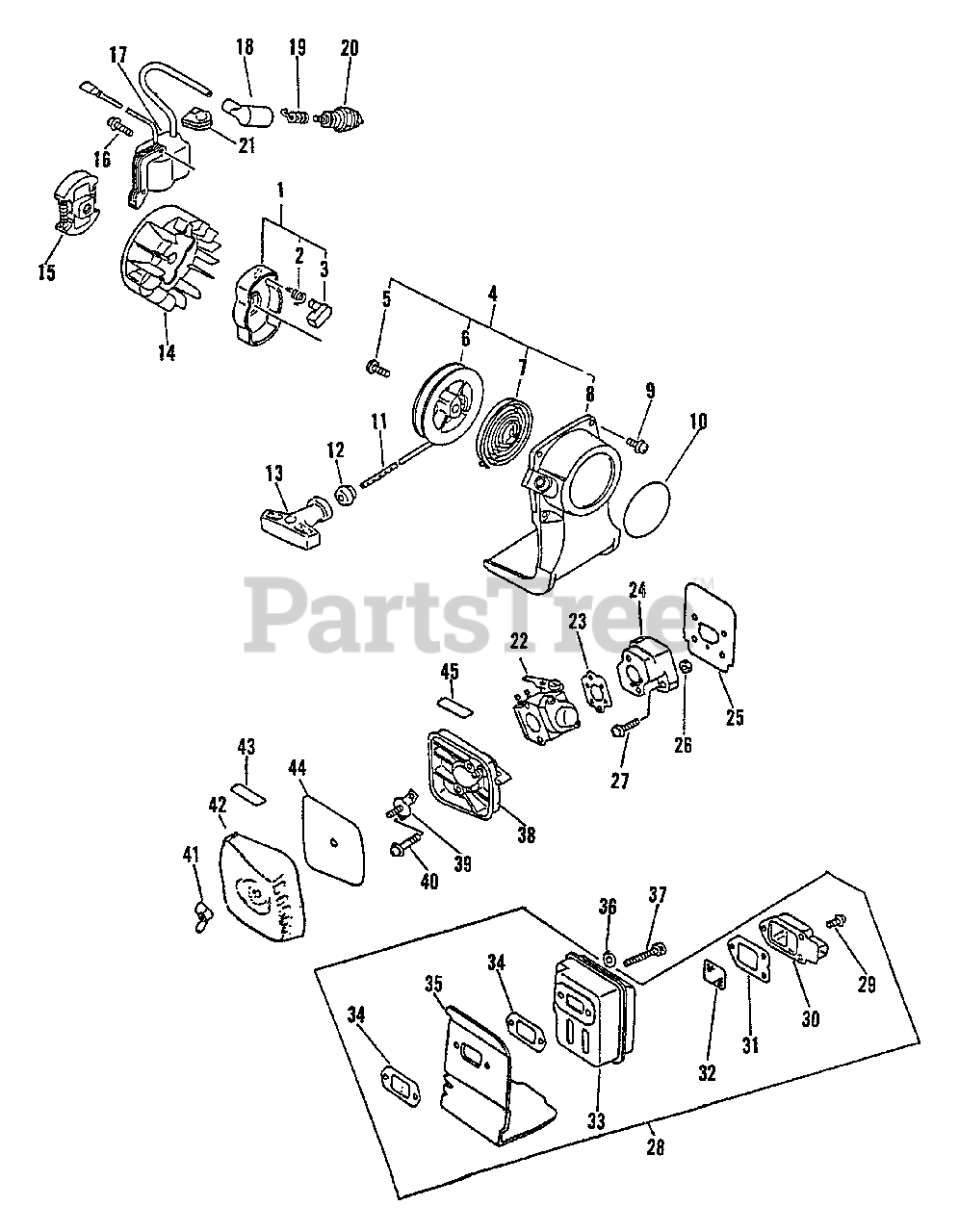

SRM-1501 - Echo String Trimmer (SN: 0135001 - 9999999) Clutch, Ignition, Starter, Intake, Exhaust Parts Diagram

String Trimmer

Clutch, Ignition, Starter, Intake, Exhaust Parts Diagram

  • Title

1

Echo 17720244330

Pawl Asy, Starter
(Superseded to 17720244331)

Note: Includes Items 2-3

$16.99

$

In Stock, Qty 18

0

2

Echo 17723442030

Spring, Return
(Superseded to 17723412220)

$3.99

$

In Stock, Qty 10

0

3

Echo 17721844330

Pawl, Starter

$3.49

$

In Stock, Qty 20+

0

4

Echo 17720044332

Starter Asy
(Superseded to 17720044333)

Note: Includes Items 5-8, 11-13

$45.99

$

In Stock, Qty 20+

0

5

Echo 17723644330

Screw

$3.49

$

In Stock, only 1 left!

0

6

Echo 17721542030

Drum, Starter
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 16

0

7

Echo 17722042030

Spring, Rewind
(Superseded to P022019680)

$9.99

$

In Stock, Qty 6

0

8

Echo 17723244332

Case, Starter
(Superseded to 17723244333)

$40.99

$

In Stock, only 1 left!

0

9

Echo 90023804016

Screw 4X16
(Superseded to Discontinued)

$

$

Not available

10

Echo 89011849130

Label, Echo
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

11

Echo 17722605530

Rope, Starter

$4.99

$

In Stock, Qty 5

0

12

Echo 17722742030

Guide, Rope

$2.49

$

In Stock, Qty 14

0

13

Echo 17722806530

Grip, Starter

$4.99

$

In Stock, Qty 20+

0

14

Echo 15680144730

Flywheel
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

15

Echo 17500042031

Clutch Asy
(Superseded to 17500056830)

$27.99

$

In Stock, Qty 6

0

16

Echo 90023804022

Screw 4X22

$0.99

$

In Stock, Qty 5

0

17

Echo 15660144730

Coil Ignition
(Superseded to 15660144731)

$

$

Not available

18

Echo 15901201620

Cap, Spark Plug

$1.49

$

In Stock, Qty 20+

0

19

Echo 15901103432

Coil, Spark Plug Cap

$1.49

$

In Stock, Qty 20+

0

20

Echo 15901010630

Plug, Spark BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

21

Echo 15611240630

Grommet

$1.49

$

In Stock, only 3 left!

0

22

Echo 12520050630

Carburetor C1U-K16
(Superseded to 12520050631)

$

$

Not available

23

Echo 13001642031

Gasket, Intake

$1.49

$

In Stock, Qty 20+

0

24

Echo 13001742031

Insulator

$9.49

$

In Stock, only 1 left!

0

25

Echo 13001042031

Gasket, Intake
(Superseded to 13001042032)

$2.49

$

In Stock, only 2 left!

0

26

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

27

Echo 90023805020

Screw 5X20

$0.99

$

In Stock, only 3 left!

0

28

Echo 14580042031

Muffler Asy
(Superseded to 14580642030)

Note: Includes Items 29-35

$46.99

$

In Stock, only 1 left!

0

29

Echo 90023804010

Screw 4X10

$0.99

$

In Stock, Qty 15

0

30

Echo 14580942030

Holder, Screen

$7.49

$

In Stock, only 1 left!

0

31

Echo 14586642031

Gasket, Muffler Lid

$2.49

$

In Stock, Qty 5

0

32

Echo 14586240630

Screen, Muffler

$1.99

$

In Stock, Qty 20+

0

33

Muffler

$

$

Not available

34

Echo 14551042031

Gasket, Muffler
(Superseded to V104000160)

$0.99

$

In Stock, Qty 16

0

35

Echo 14587144331

Cover, Muffler
(Superseded to 14587152130)

$4.99

$

In Stock, Qty 14

0

36

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

37

Echo 90010505055

Bolt, H.S. 5X55

$1.49

$

In Stock, Qty 12

0

38

Echo 13030705360

Case, Air Cleaner
(Superseded to 13030705361)

$

$

Not available

39

Echo 12901105060

Plate, Prevent

$5.99

$

In Stock, Qty 9

0

40

Echo 90024205064

Screw 5X64

$1.49

$

In Stock, Qty 9

0

41

Echo 90052800005

Nut, Wing 5

$1.49

$

In Stock, Qty 15

0

42

Echo 13080605960

Cover, Air Cleaner
(Superseded to 13031344331)

$4.49

$

Usually ships in 2-4 days

0

43

Echo 89018706960

Label. Caution

$3.49

$

Usually ships in 2-4 days

0

44

Echo 13031004560

Filter, Air

$4.99

$

In Stock, Qty 20+

0

45

Echo 89012105360

Label, Choke

$1.99

$

In Stock, Qty 16

0

Echo 88900042031

Gasket Kit
(Superseded to 88900042032)

$16.99

$

In Stock, only 1 left!

0
