SRM-1501 - Echo String Trimmer (SN: 0083387 - 0135000) Engine, Engine Cover, Fan Case Parts Diagram

String Trimmer

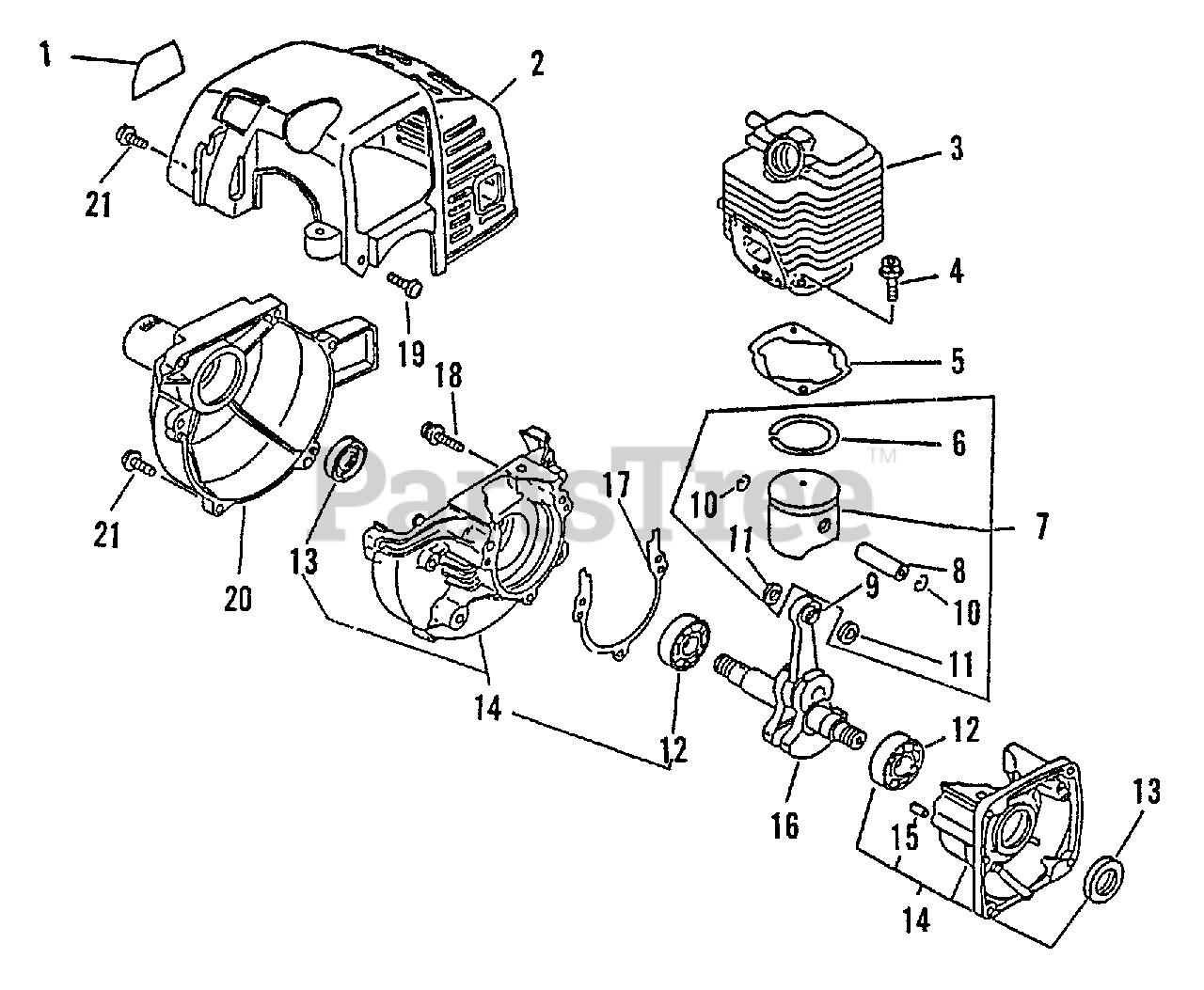

Engine, Engine Cover, Fan Case Parts Diagram

  • Title
1

Echo 89011248930

Label, Model

$4.99

$

Usually ships in 2-4 days

0

2

Echo 10151448730

Cover, Cylinder
(Superseded to 10151448731)

$19.99

$

Usually ships in 2-4 days

0

3

Echo 10101145230

Cylinder

$127.99

$

Usually ships in 2-4 days

0

4

Echo 90016205022

Bolt, H.S. 5x22

$0.99

$

In Stock, Qty 20+

0

5

Echo 10101042031

Gasket, Cylinder Base
(Superseded to 10101044330)

$3.99

$

In Stock, only 4 left!

0

6

Echo 10001105330

Ring, Piston

$8.49

$

In Stock, only 2 left!

0

7

Echo 10000044330

Piston kit
(Superseded to 10000044331)

Note: Includes Items 6, 8, 10, 11

$65.99

$

Usually ships in 2-4 days

0

8

Echo 10001311520

Pin, Piston

$7.49

$

In Stock, only 1 left!

0

9

Echo 10001211520

Bearing, Needle
(Superseded to 10001251230)

$9.99

$

In Stock, only 2 left!

0

10

Echo 10001504630

Circlip, piston pin

$0.99

$

In Stock, Qty 7

0

11

Echo 10001411520

Spacer, Piston pin

$3.49

$

In Stock, only 3 left!

0

12

Echo 90081036201

Bearing, ball 6201
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

13

Echo 10021242030

Oil seal
(Superseded to 10021242031)

$6.49

$

In Stock, Qty 6

0

14

Echo 10020442030

Crankcase kit
(Superseded to 10020451030)

Note: Includes Items 12, 13, 15

$131.99

$

Usually ships in 2-4 days

0

15

Echo 10021503930

Pin, Dowel
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

16

Echo 10010044730

Crankshaft
(Superseded to 10010044731)

Note: Includes Item 9

$155.99

$

In Stock, only 1 left!

0

17

Gasket, Crankcase

$

$

Not available

18

Echo 90023805028

Screw 5x28

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90023804012

Screw 4x12

$0.99

$

In Stock, Qty 6

0

20

Echo 10153548930

Cover, Pin

$41.99

$

Usually ships in 2-4 days

0

21

Echo 90023804016

Screw 4x16
(Superseded to Discontinued)

$

$

Not available

Echo 88900042031

Gasket Kit
(Superseded to 88900042032)

$16.99

$

In Stock, only 1 left!

0
