SRM-1501 - Echo String Trimmer (SN: 0039001 - 0083386) Engine, Engine Cover, Fan Case Parts Diagram

String Trimmer

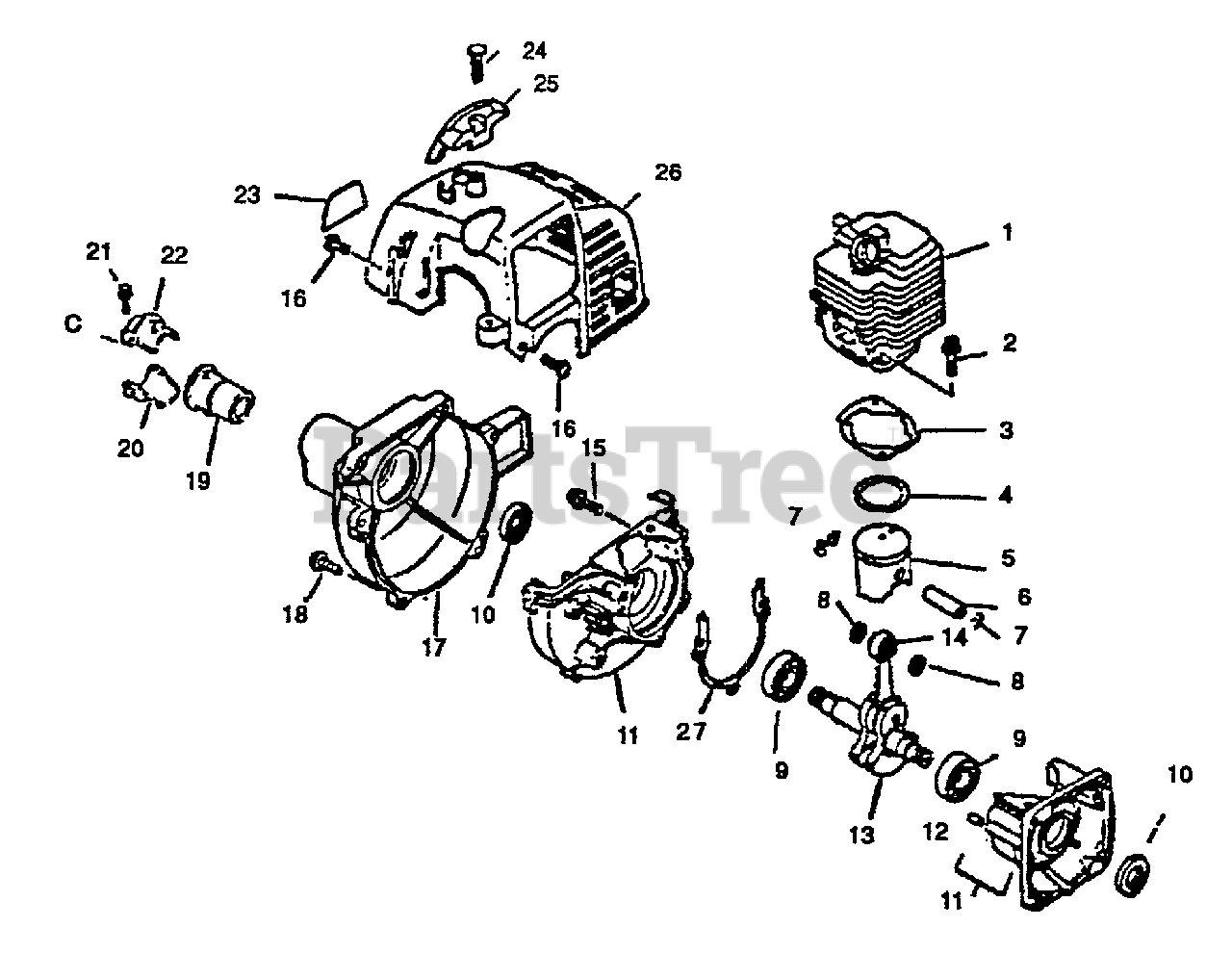

Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

Echo 10101145230

Cylinder

$127.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

Bolt, H. S.

$0.99

$

In Stock, Qty 20+

0

3

Gasket, Cylinder Base

$

$

Not available

4

Echo 10001105330

Ring, Piston

$8.49

$

In Stock, only 3 left!

0

5

Echo 10000044330

Piston
(Superseded to 10000044331)

Note: Includes Item 6

$65.99

$

Usually ships in 2-4 days

0

6

Echo 10001311520

Pin, Piston

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

Circlip, Piston Pin

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411530

Spacer, Piston Pin

$

$

Currently unavailable

9

Echo 90081036201

Bearing, Ball 6201
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

10

Echo 10021242030

Oil Seal
(Superseded to 10021242031)

$6.49

$

In Stock, Qty 11

0

11

Echo 10020442030

Crankcase Set
(Superseded to 10020451030)

Note: Includes Item 12

$131.99

$

Usually ships in 2-4 days

0

12

Echo 10021503930

Pin, Dowel
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

13

Echo 10010044730

Crankshaft Asy
(Superseded to 10010044731)

Note: Includes Item 14

$155.99

$

In Stock, only 1 left!

0

14

Echo 10001211520

Bearing, Needle
(Superseded to 10001251230)

$9.99

$

In Stock, only 2 left!

0

15

Echo 90023805028

Screw 5X28

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90023804012

Screw 4X12

$0.99

$

In Stock, Qty 10

0

17

Echo 10153548930

Cover, Fan

$41.99

$

Usually ships in 2-4 days

0

18

Echo 90023804016

Screw 4X16
(Superseded to Discontinued)

$

$

Not available

19

Echo 61091027832

Cushion

$7.99

$

In Stock, only 1 left!

0

20

Echo 61092327432

Holder

$6.49

$

Usually ships in 2-4 days

0

21

Echo 90014205025

Bolt 5X25

$0.99

$

In Stock, only 4 left!

0

22

Echo 61092227432

Holder

$5.99

$

Usually ships in 2-4 days

0

23

Echo 89011248930

Label, Model

$4.99

$

Usually ships in 2-4 days

0

24

Echo 90023805016

Screw 5X16

$0.99

$

In Stock, Qty 20+

0

25

Echo 15991244530

Guard, Top

$6.99

$

In Stock, only 1 left!

0

26

Echo 10151448730

Cover, Cylinder
(Superseded to 10151448731)

$19.99

$

Usually ships in 2-4 days

0

27

Gasket, Crankcase

$

$

Not available

Echo 88900042031

Gasket Kit
(Superseded to 88900042032)

$16.99

$

In Stock, only 1 left!

0
