SRM-1501 - Echo String Trimmer (SN: 0017001 - 0039000) Main Pipe, Support Handle, Throttle Control, Clutch Case Parts Diagram

String Trimmer

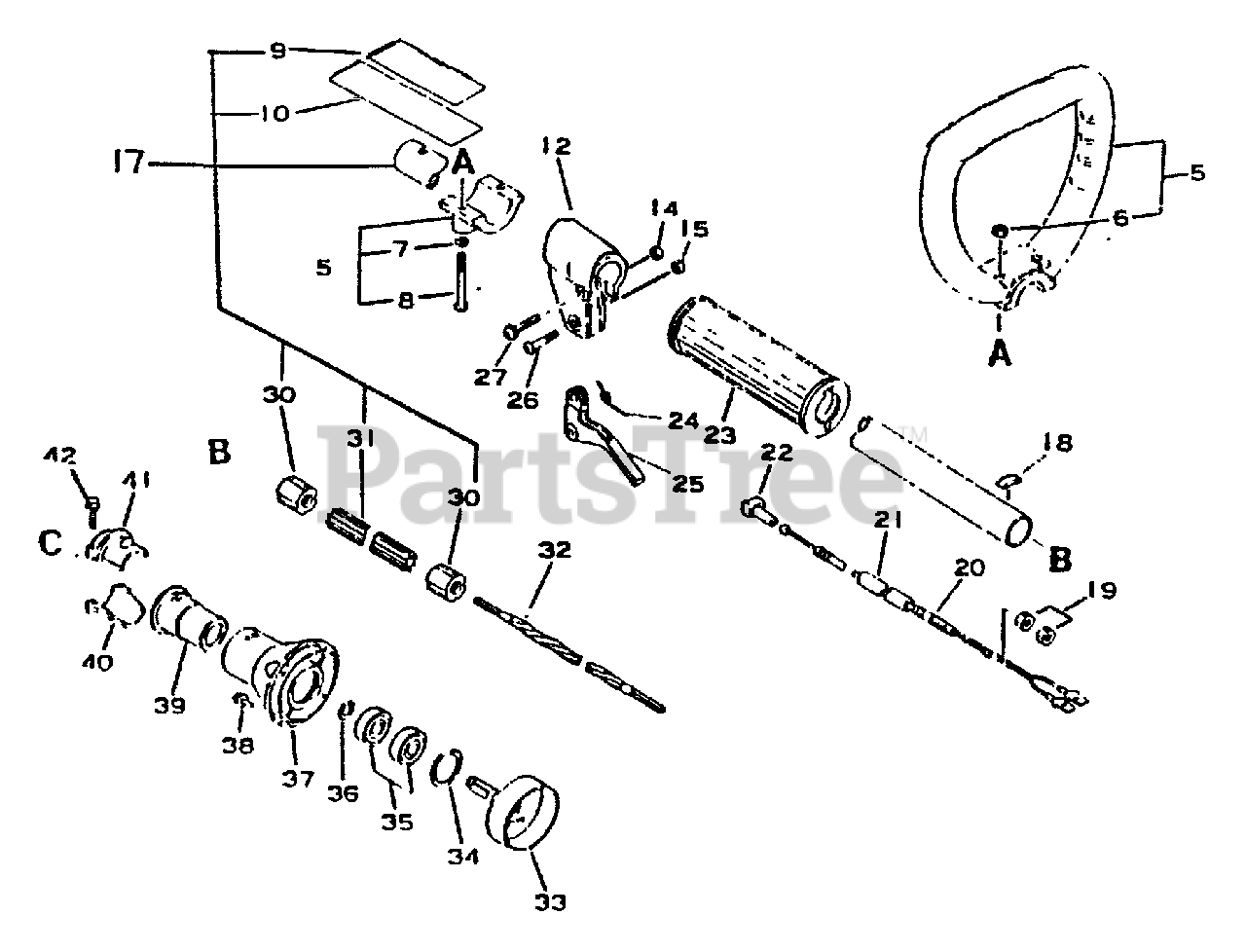

Main Pipe, Support Handle, Throttle Control, Clutch Case Parts Diagram

  • Title

5

Echo 35120108930

Handle Ass'y, Loop

Note: Includes Items 6-8

$37.99

$

Usually ships in 2-4 days

0

6

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90022005040

Screw 5-40

$0.99

$

In Stock, Qty 12

0

9

Echo 89016047630

Label, Caution
(Superseded to 89016049630)

Note: Included in Item 17

$6.49

$

Usually ships in 2-4 days

0

10

Echo 89016044430

Label, Caution
(Superseded to 89016052730)

Note: Included in Item 17

$1.49

$

Usually ships in 2-4 days

0

12

Echo 17802408930

Bracket, Throttle
(Superseded to Discontinued)

$

$

Not available

14

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 43302000830

Locknut 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

17

Echo 61060944630

Housing Ass'y D. Shaft
(Superseded to Discontinued)

Note: Includes Items 9, 10, 30, 31

$

$

Not available

18

Echo 89015204930

Label, Caution

$0.99

$

In Stock, Qty 9

0

19

Echo 90050200006

Nut 6 03

$0.99

$

In Stock, only 3 left!

0

20

Echo 17800144430

Wire, Throttle

$10.99

$

In Stock, only 1 left!

0

21

Echo 17812724030

Tube

$0.99

$

In Stock, Qty 10

0

22

Echo 17804805630

Holder, Thr. Wire

$1.99

$

In Stock, Qty 15

0

23

Echo 35101240930

Grip, Handle
(Superseded to 35101244730)

$

$

Not available

24

Echo 17804306930

Spring. Thr. Return

$0.99

$

In Stock, Qty 20+

0

25

Echo 17801005631

Control, Throttle
(Superseded to C450000060)

$1.49

$

In Stock, Qty 20+

0

26

Echo 17811005330

Screw

$0.99

$

In Stock, Qty 6

0

27

Echo 90024205030

Screw 5=30

$0.99

$

In Stock, only 2 left!

0

30

Echo 61024644730

Stopper

Note: Included in Item 17

$1.49

$

In Stock, Qty 20+

0

31

Echo 61021744630

Liner, Flexible
(Superseded to Discontinued)

Note: Included in Item 17

$

$

Not available

32

Echo 61001342330

Shaft, Flexible
(Superseded to 61001351030)

$60.99

$

Usually ships in 2-4 days

0

33

Echo 17500544730

Drum, Clutch
(Superseded to Discontinued)

$

$

Not available

34

Echo 90070200028

Circlip 28

$1.49

$

In Stock, Qty 15

0

35

Echo 90080806001

Bearing, Ball 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 4 left!

0

36

Echo 90070100012

Circlip 12

$0.99

$

In Stock, Qty 20+

0

37

Echo 61022344730

Case, Clutch

$56.99

$

Usually ships in 2-4 days

0

38

Echo 90023805016

Screw 5=16

$0.99

$

In Stock, Qty 20+

0

39

Echo 61091027832

Cushion

$7.99

$

In Stock, only 1 left!

0

40

Echo 61092327432

Holder

$6.49

$

Usually ships in 2-4 days

0

41

Echo 61092227432

Holder

$5.99

$

Usually ships in 2-4 days

0

42

Echo 90014205025

Bolt 5=25

$0.99

$

In Stock, only 4 left!

0
