SRM-1501 - Echo String Trimmer (SN: 0017001 - 0039000) Clutch, Ignition, Starter Parts Diagram

String Trimmer

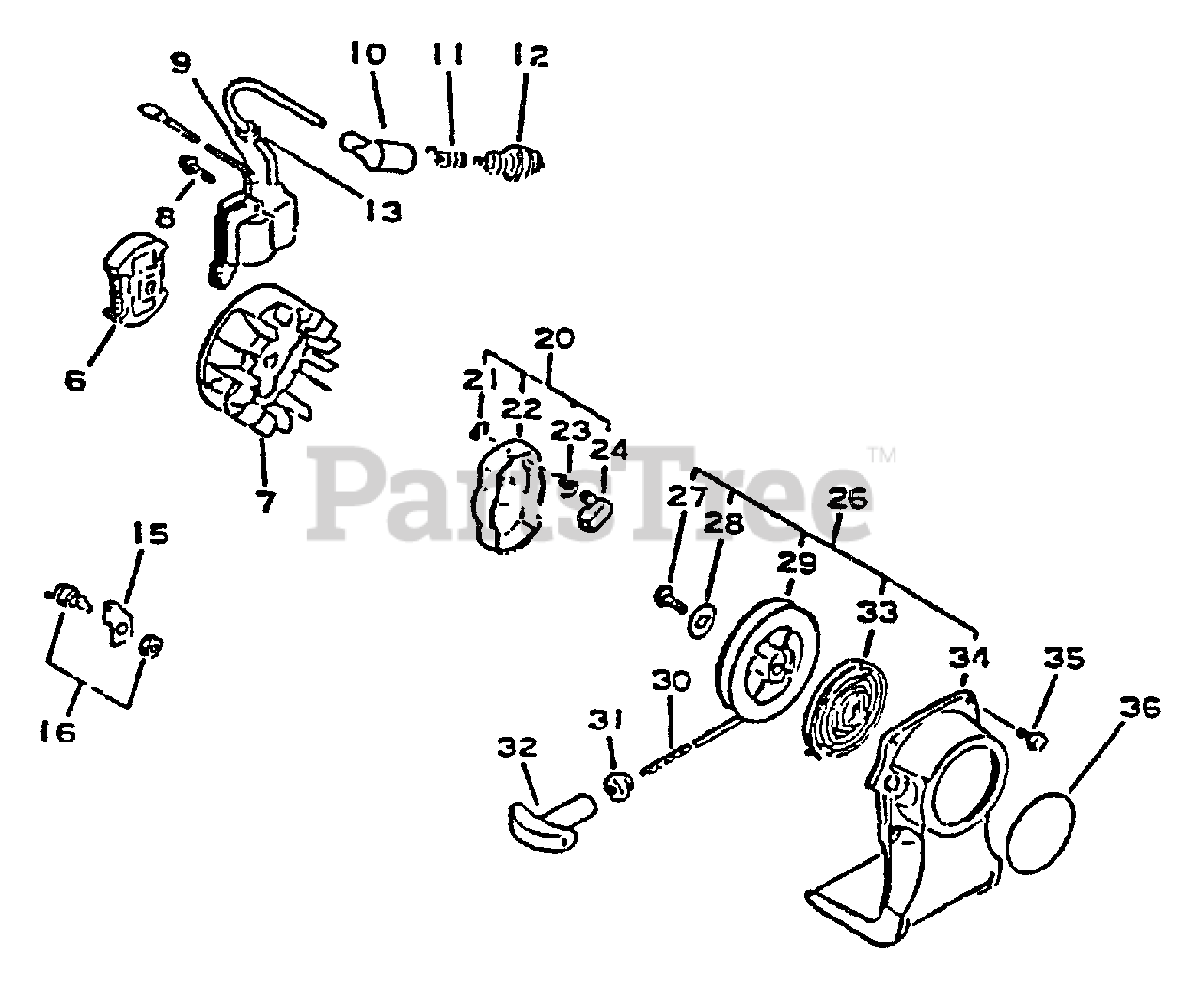

Clutch, Ignition, Starter Parts Diagram

  • Title
6

Echo 17500044330

Clutch Assembly
(Superseded to 17500042031)

$27.99

$

In Stock, Qty 5

0

7

Echo 15680144730

Flywheel
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

8

Echo 90023804022

Screw 4=22

$0.99

$

In Stock, Qty 5

0

9

Echo 15660144730

Coil, Ignition
(Superseded to 15660144731)

$

$

Not available

10

Echo 15901201620

Cap, Spark Plug

$1.49

$

In Stock, Qty 20+

0

11

Echo 15901103432

Coil, Spark Plug Cap

$1.49

$

In Stock, Qty 20+

0

12

Echo 15901010630

Plug, Spark (BPH-7A)
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

13

Echo 15011244330

Bushing
(Superseded to Discontinued)

$

$

Not available

15

Echo 16381044330

Bracket, Switch

$2.99

$

In Stock, only 1 left!

0

16

Echo 16340003460

Switch, Ignition

$8.49

$

In Stock, only 3 left!

0

20

Echo 17720242030

Pawl, Ash., Starter
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 16

0

21

Echo 90070000004

E-Ring 4

Note: Includes Items 21-24

$0.99

$

In Stock, Qty 20+

0

22

Echo 17721042030

Catcher, Pawl
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 16

0

23

Echo 17723442030

Spring, Return
(Superseded to 17723412220)

$3.99

$

In Stock, Qty 8

0

24

Echo 17721842030

Pawl, Starter

$3.49

$

Usually ships in 2-4 days

0

26

Echo 17720044332

Starter Assembly
(Superseded to 17720044333)

Note: Includes Items 27-34

$45.99

$

In Stock, Qty 20+

0

27

Echo 17723640630

Screw 4=22

$3.99

$

In Stock, Qty 14

0

28

Echo 17721442030

Washer
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

29

Echo 17721542030

Drum, Starter
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 14

0

30

Echo 17722605530

Rope, Starter

$4.99

$

In Stock, only 4 left!

0

31

Echo 17722742030

Guide, Rope

$2.49

$

In Stock, Qty 13

0

32

Echo 17722806530

Grip, Starter

$4.99

$

In Stock, Qty 18

0

33

Echo 17722042030

Spring, Rewind
(Superseded to P022019680)

$9.99

$

In Stock, Qty 13

0

34

Echo 17723244330

Case, Starter (BL)
(Superseded to 17723244331)

$40.99

$

In Stock, only 1 left!

0

35

Echo 90023804016

Screw 4=16
(Superseded to Discontinued)

$

$

Not available

36

Echo 89011844330

Label, Echo
(Superseded to 89011848830)

$0.99

$

In Stock, Qty 8

0
