SRM-1500 A - Echo String Trimmer Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

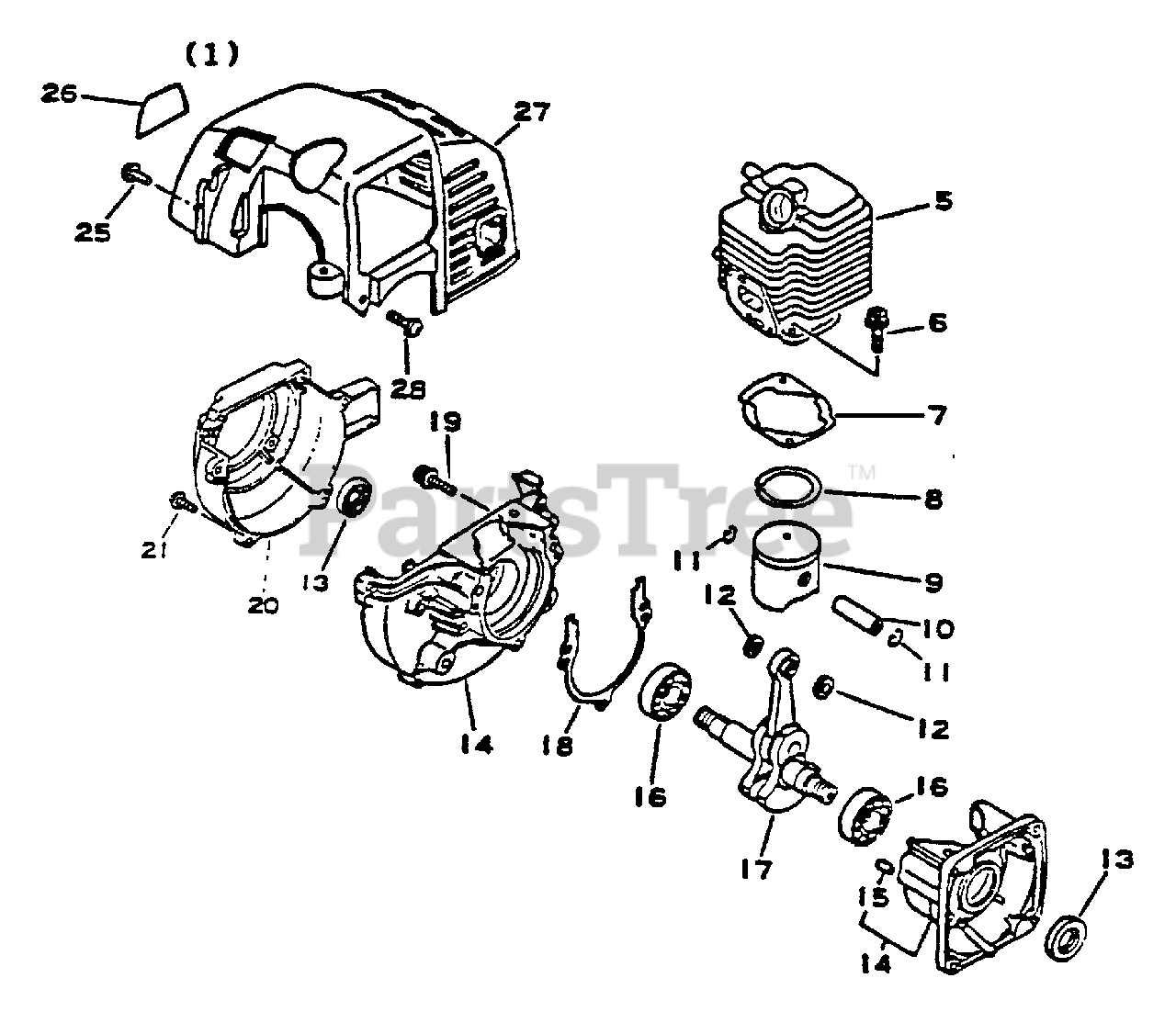

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title
5

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

$127.99

$

Usually ships in 2-4 days

0

6

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

7

------------------

GASKET, CYLINDER

Note: USE Gasket Kit P/N 88900040630

$

$

Not available

8

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 1 left!

0

9

Echo 10001044330

PISTON
(Superseded to 10000044330)

$65.99

$

Usually ships in 2-4 days

0

10

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

11

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

12

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 13

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$131.99

$

Usually ships in 2-4 days

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

16

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 11

0

17

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

$155.99

$

In Stock, only 1 left!

0

18

------------------

GASKET, CRANKCASE

Note: USE Gasket Kit P/N 88900040630

$

$

Not available

19

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

20

Echo 10151144730

CASE, FAN - ORANGE

$48.99

$

Usually ships in 2-4 days

0

21

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

28

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

26

$1.99

$

Usually ships in 2-4 days

0

27

Echo 10151444730

COVER, ENGINE
(Superseded to 10151442030)

$24.99

$

Usually ships in 2-4 days

0

25

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 10

0
