SRE 621 (12AE977C710) - Cub Cadet Walk-Behind Mower (2005) FJ180V - BS05 Crankcase Parts Diagram

Walk-Behind Mower

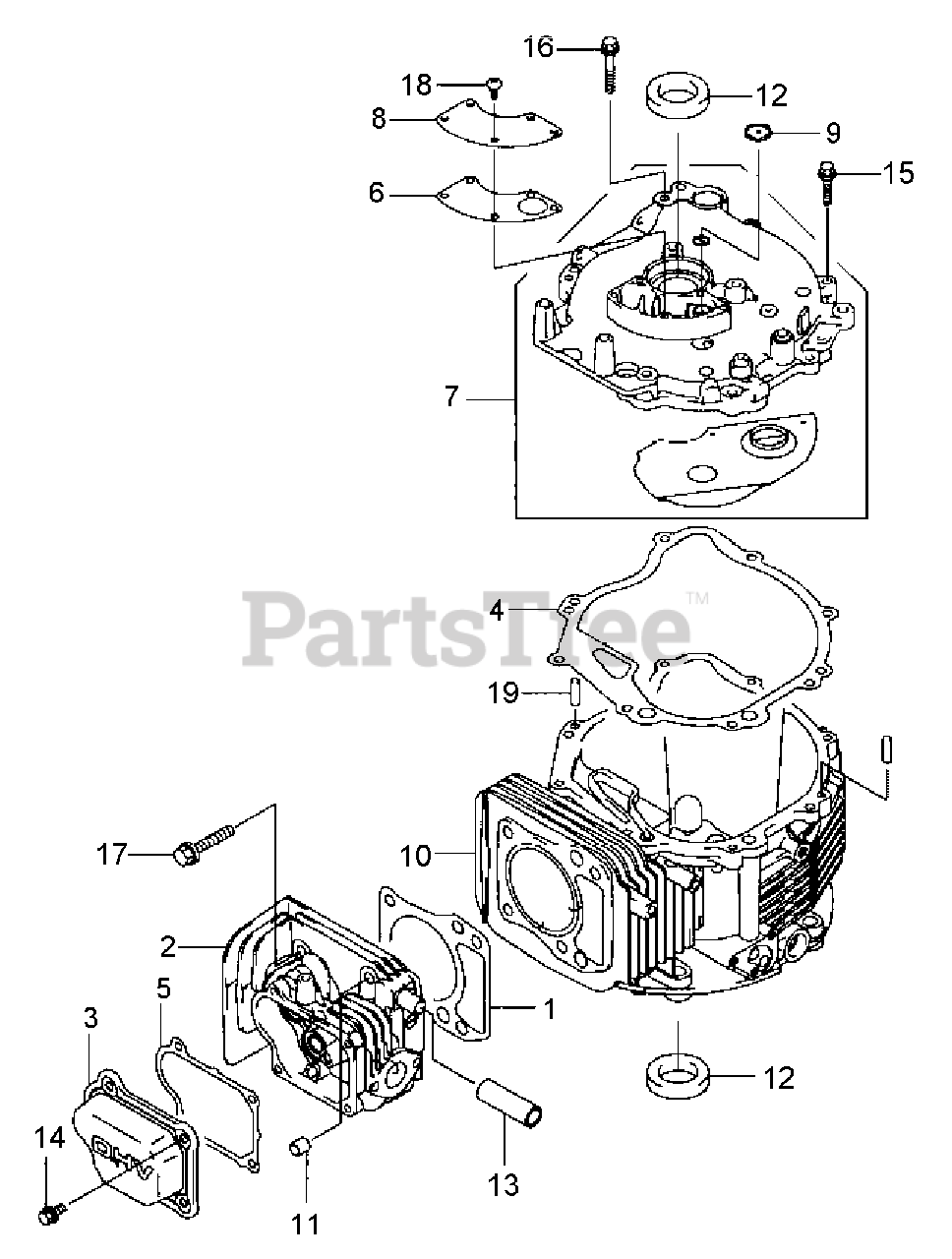

FJ180V - BS05 Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7009

Head Gasket
(Superseded to KM-11004-7020)

$6.99

$

In Stock, Qty 6

0

2

Cub Cadet KM-11008-7015

Cylinder Head
(Superseded to KM-11008-2171)

$

$

Not available

3

Cub Cadet KM-11022-7006

Rocker Case
(Superseded to KM-11022-2083)

$10.99

$

In Stock, Qty 11

0

4

Cub Cadet KM-11061-7020

Cover Gasket
(Superseded to KM-11061-7060)

$7.49

$

In Stock, only 2 left!

0

5

Cub Cadet KM-11061-7023

Rocker Case Gasket
(Superseded to KM-11061-2210)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11061-7031

Breather Gasket
(Superseded to KM-11061-2213)

$1.49

$

In Stock, Qty 5

0

7

Cub Cadet KM-14041-7001

Cover-Complete
(Superseded to KM-14041-7009)

$117.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-14091-7010

Breather Cover

$1.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-16126-7014

Breather Valve

$0.99

$

In Stock, Qty 9

0

10

Cub Cadet KM-49120-7041

Crankcase-Complete

$

$

Not available

11

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 7

0

12

Cub Cadet KM-92049-7008

Oil Seal

$

$

Not available

13

Cub Cadet KM-92191-7025

Tube, 12x16x49
(Superseded to KM-92192-2243)

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet KM-130G0612

Flanged Bolt
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-130G0625

Flanged Bolt
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

16

Cub Cadet KM-130G0635

Flanged Bolt
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

17

Cub Cadet KM-130P0840

Flanged Bolt
(Superseded to KM-130T0840)

$1.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-214B0510

Pan Screw

$

$

Not available

19

Cub Cadet KM-551A0612

Dowel Pin

$0.99

$

Usually ships in 2-5 days

0
