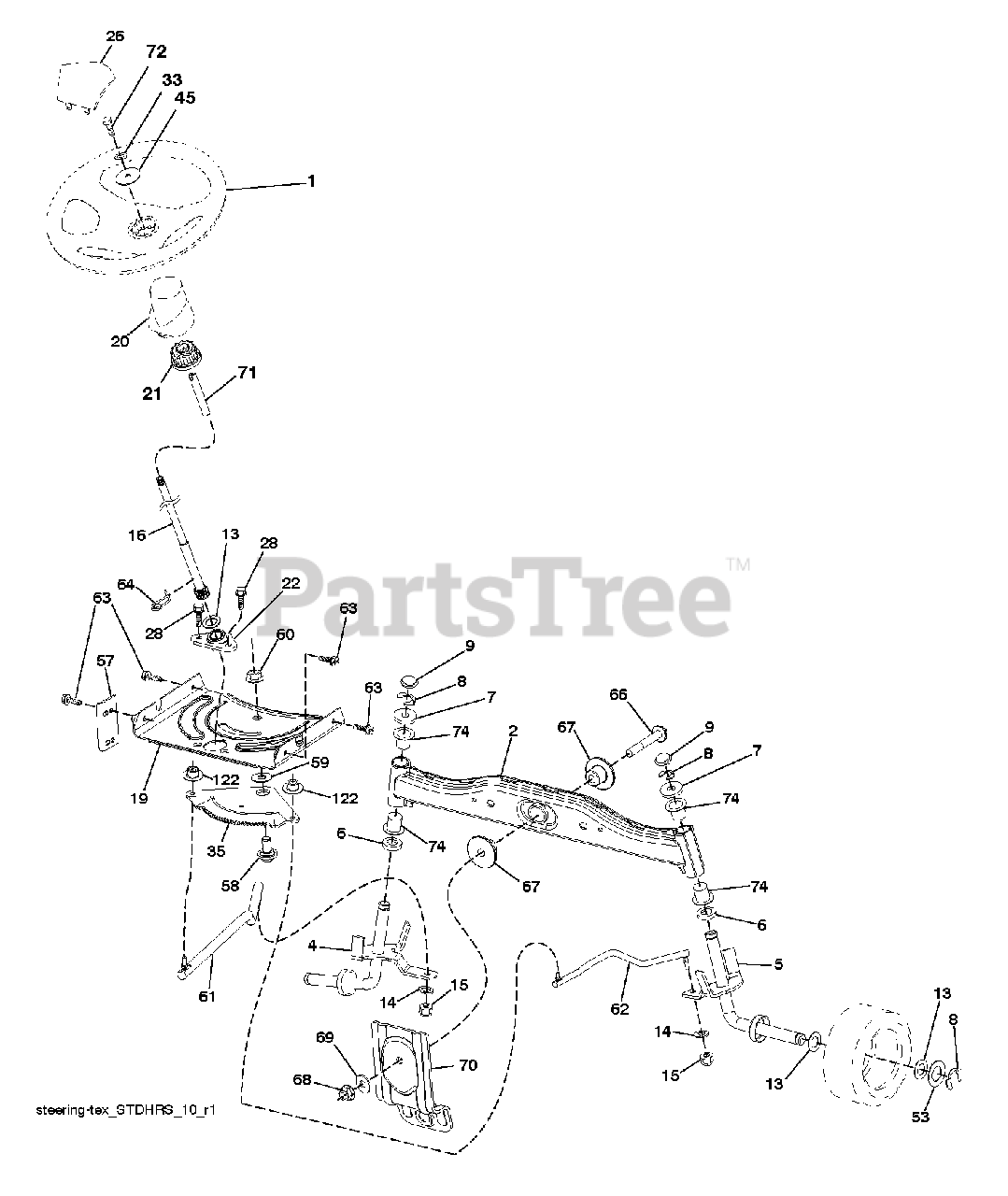

SRD 17530 (960550002-00) - Husqvarna 30" Lawn Tractor (2012-10) STEERING Parts Diagram

30" Lawn Tractor

STEERING Parts Diagram

  • Title

1

Husqvarna 532439997

WHEEL.STEERING.HUSQ.PREM.HRDRM

$56.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532418168

AXLE HALF ASM-WELDED
(Superseded to 531171101)

$68.99

$

In Stock, Qty 20+

0

4

Husqvarna 532416845

SPINDLE.STEERING.ASM.LH.13".TI
(Superseded to 538690801)

$43.99

$

In Stock, only 1 left!

0

5

Husqvarna 532416846

SPINDLE.STEERING.ASM.RH.13".TI
(Superseded to 538690701)

$39.99

$

In Stock, only 1 left!

0

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

13

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040500

LOCKWASHER
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532429374

SHAFT.STEER.3/4.NON-PLATED.TEX
(Superseded to 587738903)

$51.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532441425

STEERING.BOOT.HUSQ.LT

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532186737

ADAPTER, WHEEL STNG..
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

22

Husqvarna 532420537

STEERING.SUPT.LOWER.
(Superseded to 587738901)

$17.99

$

In Stock, only 3 left!

0

26

Husqvarna 532439743

INSERT.CAP.WHL.STRG.HUSQ.PREM

$10.99

$

In Stock, only 1 left!

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 810040500

LOCKWASHER
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

35

Husqvarna 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

45

Husqvarna 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 2 left!

0

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Husqvarna 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

$12.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532194741

DRAGLINK.RH.BALLSTUD.D

$13.99

$

In Stock, Qty 20+

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 13

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 5

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

70

Husqvarna 532417065

BRACKET.SUSP.MWR.FRT.30"SRD

$22.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532190752

SHAFT.EXTEN.STRG.SPLINE

$17.99

$

In Stock, only 1 left!

0

72

Husqvarna 532428982

BOLT 5/16-18 X 4 W/PATCH

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

122

Husqvarna 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$6.49

$

In Stock, only 3 left!
