SRD 17530 (960530002-00) - Husqvarna 30" Lawn Tractor (2012-10) DRIVE Parts Diagram

30" Lawn Tractor

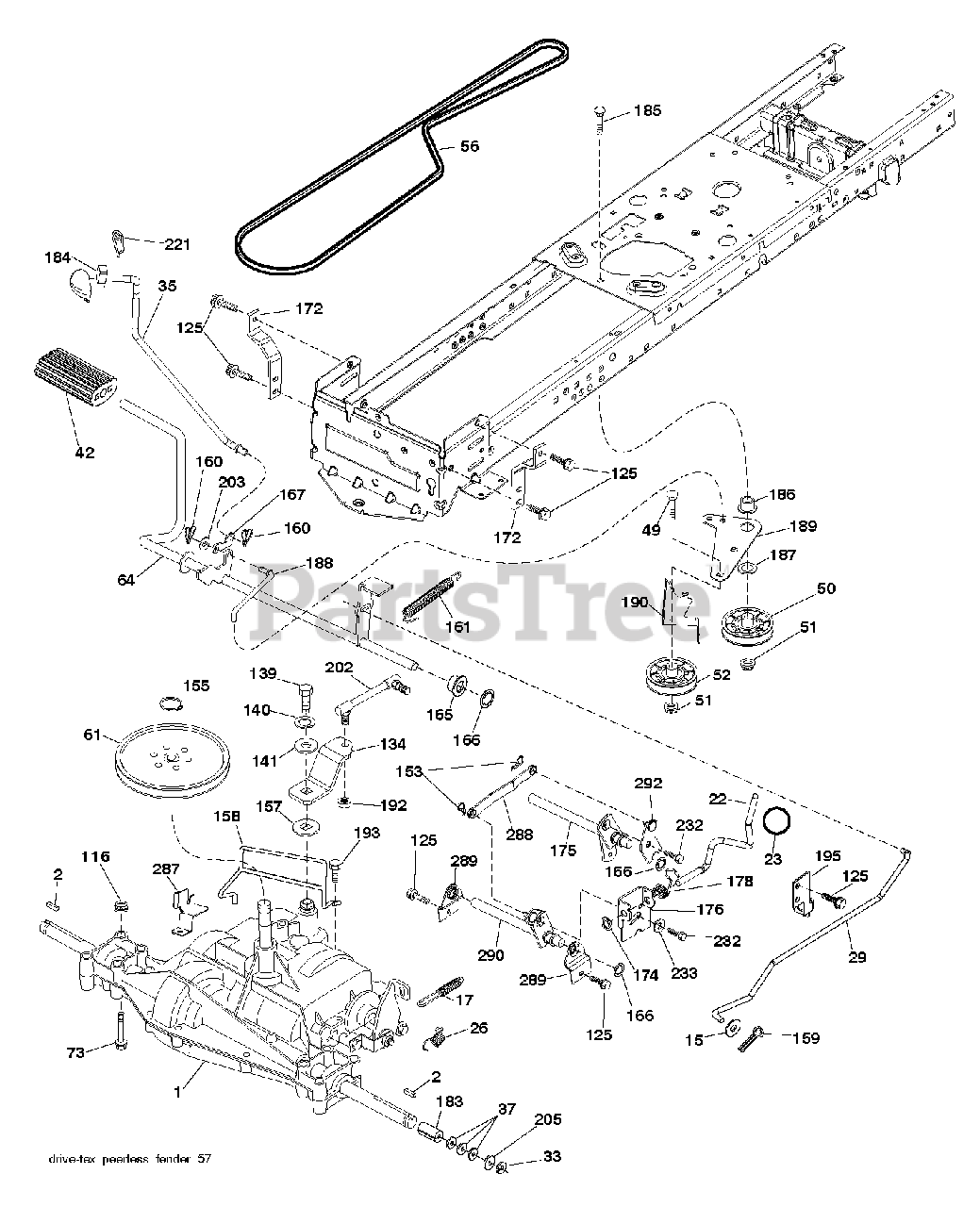

DRIVE Parts Diagram

  • Title
1

000000000

Note: Transaxle Peerless 206-565 (197941)

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532197297

SPRING.BRAKE.PEERLESS.TEX

$9.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532416614

SHIFTER.ASM.HANDLE.SRD
(Superseded to 532416616)

$

$

Not available

23

Husqvarna 532106933

KNOB T (1/2-HOLE)

$7.99

$

In Stock, only 1 left!

0

26

Husqvarna 532197455

SPRING.BRAKE.RTN.GR.DR

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532197267

ROD.BRAKE.PEERLESS

$30.99

$

Usually ships in 3-10 days

0

33

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532401031

ROD.CNTRL.PARK.PREDATOR.LT.TEX

$18.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 15

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532138255

BELT, V GROUND DRIVE 95 25

$39.99

$

In Stock, only 2 left!

0

61

Husqvarna 532165999

PULLEY
(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

134

$7.99

$

Usually ships in 3-10 days

0

139

Husqvarna 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

140

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

141

$6.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

155

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

157

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 532194352

KEEPER.PMS.18/20.D4365

$

$

Not available

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

In Stock, Qty 6

0

165

Husqvarna 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

Usually ships in 3-10 days

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Husqvarna 532197657

STRAP.TRQ.LH.GEAR.DRIV

$6.49

$

Usually ships in 3-10 days

0

174

Husqvarna 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Husqvarna 532197858

SHAFT ASM SHIFT

$39.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Husqvarna 532441407

HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532411484)

$66.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 10

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

192

Husqvarna 532150360

NUT LOCK CENTER 1/4 -28 FNTHD

$

$

Not available

193

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

195

Husqvarna 532197332

BRKT.ROD.BRAKE.PEERLES

$5.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532197859

LINK.SHIFT.PMST.18" (SPG1286)
(Superseded to 597079401)

$9.49

$

Usually ships in 3-10 days

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

205

$4.99

$

In Stock, Qty 10

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

232

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Husqvarna 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

287

Husqvarna 532421648

KEEPER.PULLEY.T/A.7.04

$

$

Not available

288

Husqvarna 532416617

LINK.SHIFT.SLAVE.SRD

$

$

Not available

289

Husqvarna 532417520

BRACKET.SUPPORT.SHIFT.OUTER
(Superseded to 583365301)

$3.99

$

Usually ships in 3-10 days

0

290

Husqvarna 532420014

SHAFT.ASM.SHIFT.REAR.SRD
(Superseded to 583378801)

$

$

Not available

292

Husqvarna 532419307

PLATE.ASM.SHIFT.FWD.SRD
(Superseded to 583374901)

$

$

Not available
