SRC 621 (12B-999I100) - Cub Cadet Walk-Behind Mower (2002) General Assembly Parts Diagram

Walk-Behind Mower

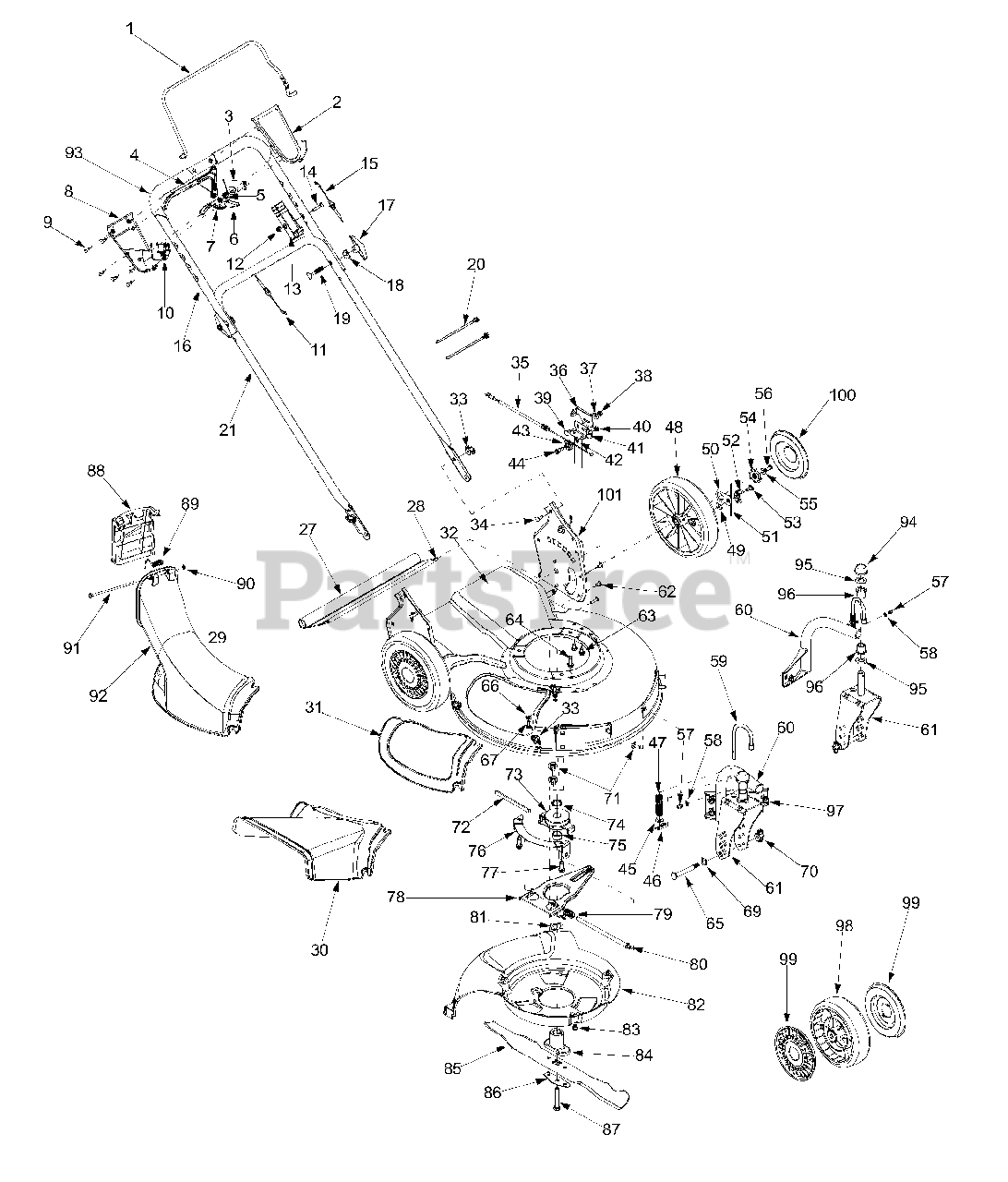

General Assembly Parts Diagram

  • Title

1

Cub Cadet 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

Cub Cadet 731-0904A

Upper Control Handle
(Superseded to 753-0717)

$

$

Not available

3

Cub Cadet 16864

6 Spd. Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

6

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

7

Cub Cadet 731-0924

6 Speed Shift Lever

$

$

Not available

8

Cub Cadet 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

9

Cub Cadet 710-1667A

C Sunk Tap Screw #10 x .75 Lg

$4.49

$

In Stock, Qty 13

0

10

Cub Cadet 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

11

Cub Cadet 746-0711A

Drive Cable 51.0
(Superseded to 946-0711B)

$32.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 17

0

13

Cub Cadet 746-0883

Control Housing

$16.99

$

In Stock, only 4 left!

0

14

Cub Cadet 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 746-1131

Control Cable 46"
(Superseded to 946-1131)

$24.99

$

In Stock, only 1 left!

0

16

Cub Cadet 749-0439D

Upper Handle
(Superseded to 749-0439E-0637)

Variations

Cub Cadet 749-0439D-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

17

Cub Cadet 720-0241

Wing Nut
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0451

Saddle Washer .320 ID x .830 OD

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

20

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet 749-0907B

Lower Handle

Variations

Cub Cadet 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

27

Cub Cadet 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 2 left!

0

28

Cub Cadet 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

29

Cub Cadet 631-0066

Chute Assembly
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-1832

Side Discharge Chute

$

$

Not available

31

Cub Cadet 731-1833

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

32

Cub Cadet 782-0078B-0716

Deck 21"

$

$

Not available

33

Cub Cadet 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0703

Carriage Bolt 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

35

Cub Cadet 746-0939

6 Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

36

Cub Cadet 782-7574A

Cable Adjustment Bracket
(Superseded to 782-7574A-0637)

Variations

Cub Cadet 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0167

Carriage Screw 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 782-7575A

Cable Mounting Bracket
(Superseded to 782-7575B-0637)

Variations

Cub Cadet 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

43

Cub Cadet 756-0625

Roller Cable

$9.49

$

In Stock, Qty 16

0

44

Cub Cadet 738-0924

Shoulder Screw .375 ID x 1/4-14
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

45

Cub Cadet 936-0264

Flat Washer .330 ID x .630 OD

$6.99

$

In Stock, only 3 left!

0

46

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

48

Cub Cadet 734-2010

Wheel 9 x 2
(Superseded to 734-2010B)

$51.99

$

In Stock, Qty 20+

0

49

Cub Cadet 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, only 4 left!

0

50

Cub Cadet 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 6

0

51

Cub Cadet 10622B

Plastic Spring Ratchet

$5.49

$

In Stock, Qty 20+

0

52

Cub Cadet 748-0381

Pawl RH

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 748-0188B

Pawl LH
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 738-0137A

Shld Screw .340 ID x .285 OD

$10.99

$

In Stock, Qty 10

0

54

Cub Cadet 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

55

Cub Cadet 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0931

Flat Washer .203 ID x .403 OD

$4.99

$

In Stock, only 1 left!

0

59

Cub Cadet 747-0924

Wheel Pin Lock

$20.99

$

In Stock, only 1 left!

0

60

Cub Cadet 682-9020A-0716

Caster Assembly RH

$

$

Not available

Cub Cadet 682-9021A-0716

Caster Assembly LH
(Superseded to 682-9021A)

$101.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 682-9024-0716

Caster Bracket Assembly RH
(Superseded to 682-9024A-0716)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-0716

Caster Bracket Assembly RH
(Superseded to 682-9026A-4021)

$85.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-1348

Screw 1/4-14 x .500

$6.99

$

In Stock, only 3 left!

0

63

Cub Cadet 710-0896

Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

65

Cub Cadet 911-1146

Caster Axle

$13.99

$

In Stock, Qty 11

0

66

Cub Cadet 736-0204

Flat Washer .344 ID x .62 OD

$4.49

$

In Stock, Qty 8

0

67

Cub Cadet 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

?68

Cub Cadet 710-1242

Torx Screw

$4.99

$

In Stock, Qty 19

0

69

Cub Cadet 936-0232

Wave Washer .531 ID x .781 OD
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

70

Cub Cadet 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 910-0260A

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 754-0460

Belt 3/8 x 39.24
(Superseded to 954-0460)

$19.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 656-0613

Pulley Assembly
(Superseded to 956-0613A)

$72.99

$

In Stock, only 1 left!

0

74

Cub Cadet 750-1071

Sleeve Spacer .88 ID x 1.13 OD
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

75

Cub Cadet 750-1070

Sleeve Spacer .88 ID x 1.00 OD
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

76

Cub Cadet 782-7597

Pivot Bracket

Variations

Cub Cadet 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

77

Cub Cadet 710-0654A

Screw 3/8-18 x 1.0

$4.49

$

In Stock, only 3 left!

0

78

Cub Cadet 782-7596

Control Arm
(Superseded to 782-7596A)

Variations

Cub Cadet 782-7596-0637

Control Arm, 6-Speed - POWDER BLACK (0637)

$

$

Not available

$

$

79

Cub Cadet 732-0807

Torsion Spring
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 736-0526

Wave Washer 1.38 ID x .88 OD

$6.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 710-0653

Screw 1/4-20 x 3.75

$4.49

$

In Stock, Qty 13

0

84

Cub Cadet 753-0609

Blade Adapter Kit

$40.99

$

In Stock, Qty 12

0

85

Cub Cadet 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

86

Cub Cadet 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

87

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5

$7.99

$

In Stock, only 2 left!

0

88

Cub Cadet 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 726-0111

Push Cap

$

$

Not available

91

Cub Cadet 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

92

Cub Cadet 931-0066

Discharge Chute

$115.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 720-0294

Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

94

Cub Cadet 926-0214

Push Cap
(Superseded to 726-0214)

$10.99

$

In Stock, only 3 left!

0

95

Cub Cadet 936-0366

Flat Washer.640 ID x 1.12 OD
(Superseded to 736-0366)

$4.49

$

In Stock, only 2 left!

0

96

Cub Cadet 741-0685

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

98

Cub Cadet 734-1857

Wheel 7 x 2

$46.99

$

In Stock, Qty 7

0

99

Cub Cadet 731-1888

Hubcap - Spoke w/ Hole

$10.99

$

In Stock, Qty 20+

0

100

Cub Cadet 731-0982A

Hubcap - Radial Spoke
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

101

Cub Cadet 682-3052

Handle Bracket Assembly - RH

Variations

Cub Cadet 682-3052-0498

HANDLE BRACKET (RH) CUB YELO - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 682-3052-0716

HANDLE BRACKET (RH) YELO-99 - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 682-3052-0650

HANDLE BRACKET (RH) RD MTALIC - RED METALLIC (0650)

$

$

Not available

Cub Cadet 682-3052-0662

HANDLE BRACKET (RH) OYST GRAY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

Cub Cadet 682-3053

Handle Bracket Assembly - LH

Variations

Cub Cadet 682-3053-0498

HANDLE BRACKET (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 682-3053-0650

HANDLE BRACKET (LH) (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 682-3053-0716

HANDLE BRACKET (LH) (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 682-3053-0638

HANDLE BRACKET (LH) (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 682-3053-0662

HANDLE BRACKET (LH) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 682-3053-0689

HANDLE BRACKET (LH) (POLO GREEN) - POLO GREEN (0689)

$

$

Not available

Cub Cadet 682-3053-4015

HANDLE BRACKET (LH) (FIRE RED) - FIRE RED (4015)

$

$

Not available

$

$
