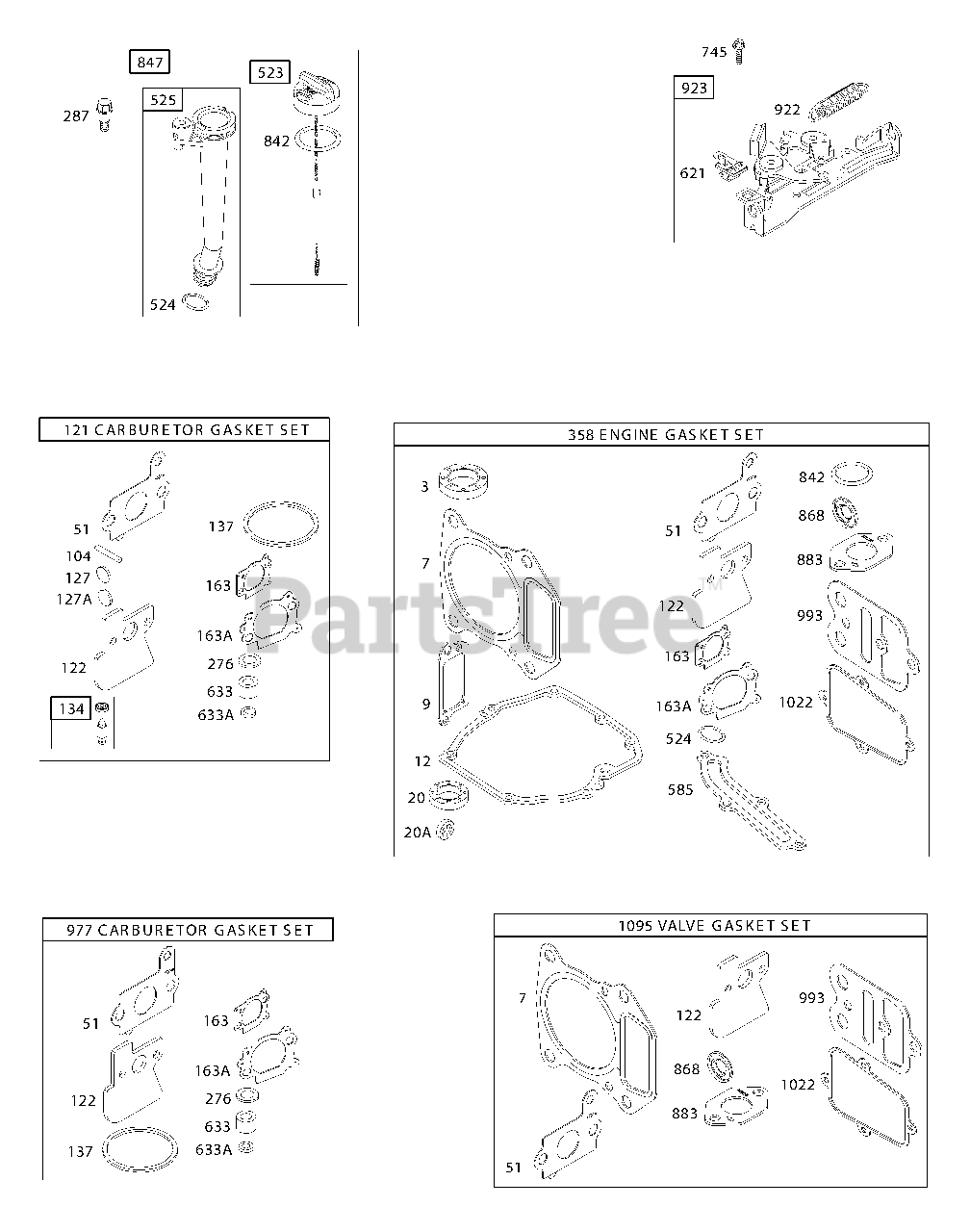

SRC 621 (12A-999I100) - Cub Cadet Walk-Behind Mower Engine (2002) Gaskets, Dipstick Parts Diagram

Walk-Behind Mower Engine

Gaskets, Dipstick Parts Diagram

  • Title

3

Cub Cadet BS-299819

Seal-Oil (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

7

Cub Cadet BS-695166

Gasket-Cylinder Head
(Superseded to BS-697230)

$9.99

$

In Stock, Qty 5

0

9

Cub Cadet BS-272481

Gasket-Breather
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

12

Cub Cadet BS-692232

Gasket-Crankcase

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet BS-399781

Seal-Oil (PTO Side)
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

20A

UNKNOWN

$

$

Not available

51

Cub Cadet BS-692668

Gasket-Intake

$4.49

$

In Stock, only 2 left!

0

104

Cub Cadet BS-691242

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

121

Cub Cadet BS-692703

Kit-Carburetor Overhaul
(Superseded to BS-792383)

$28.99

$

In Stock, only 1 left!

0

122

Cub Cadet BS-692799

Spacer-Carburetor

$14.99

$

In Stock, only 1 left!

0

127

Cub Cadet BS-694468

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

127A

UNKNOWN

$

$

Not available

134

Cub Cadet BS-398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Cub Cadet BS-693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

163

Cub Cadet BS-691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 5

0

163A

UNKNOWN

$

$

Not available

276

Cub Cadet BS-271716

Washer-Sealing

$6.99

$

In Stock, Qty 16

0

287

Cub Cadet BS-690940

Screw (Dipstick Tube)

$3.99

$

In Stock, Qty 5

0

358

Cub Cadet BS-694090

Gasket Set-Engine
(Superseded to BS-795442)

$90.99

$

Usually ships in 2-12 days

0

523

Cub Cadet BS-499621

Dipstick

$17.99

$

In Stock, only 4 left!

0

524

Cub Cadet BS-692296

Seal-Dipstick Tube

$4.99

$

In Stock, only 1 left!

0

525

Cub Cadet BS-495265

Tube-Dipstick

$

$

Not available

585

Cub Cadet BS-691879

Gasket-Breather Passage

$6.99

$

In Stock, only 1 left!

0

621

Cub Cadet BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

633

UNKNOWN

$

$

Not available

633A

Cub Cadet BS-693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

745

Cub Cadet BS-691648

Screw (Brake)

$4.99

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Cub Cadet BS-692047

Dipstick/Tube Assembly

$

$

Not available

868

Cub Cadet BS-692044

Seal-Valve

$

$

Not available

883

Cub Cadet BS-691893

Gasket-Valve

$4.49

$

In Stock, Qty 20+

0

922

Cub Cadet BS-691831

Spring-Brake

$10.99

$

In Stock, only 2 left!

0

923

Cub Cadet BS-691994

Brake
(Superseded to BS-796387)

$

$

Not available

977

Cub Cadet BS-692704

Gasket Set-Carburetor
(Superseded to BS-792383)

$28.99

$

In Stock, only 1 left!

0

993

Cub Cadet BS-694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

1022

Cub Cadet BS-691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 6

0

1095

Cub Cadet BS-694091

Gasket Set-Valve
(Superseded to BS-795441)

$70.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692745

Short Block

Note: N/S

$205.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-121602-0515

Complete Engine

Note: N/S

$

$

Not available
