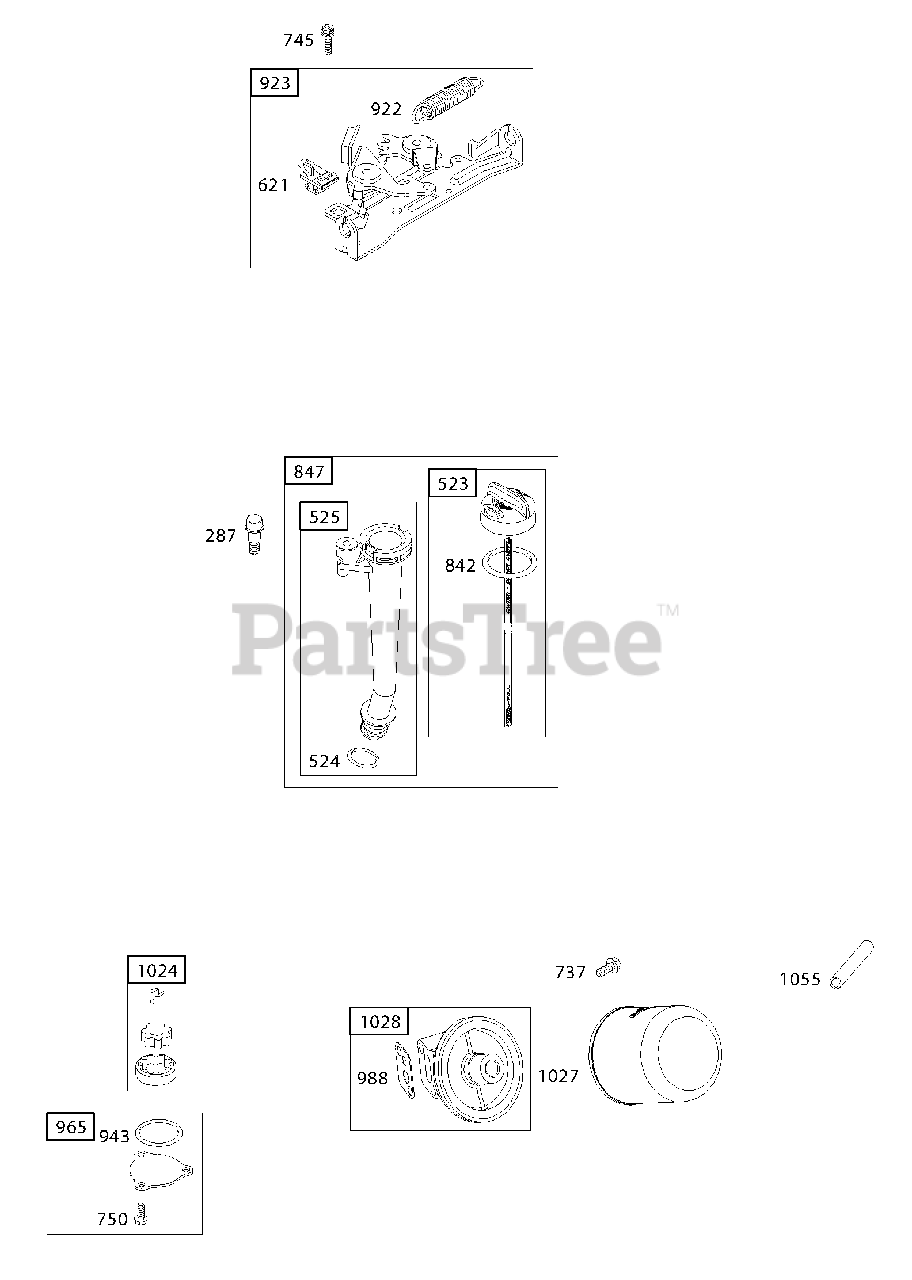

SRA 621 (12A-909Q100) - Cub Cadet Walk-Behind Mower Engine (2002) Oil Filter, Dipstick Parts Diagram

Walk-Behind Mower Engine

Oil Filter, Dipstick Parts Diagram

  • Title

287

Cub Cadet BS-690940

Screw (Dipstick Tube)

$3.99

$

In Stock, Qty 5

0

523

Cub Cadet BS-499621

Dipstick

$17.99

$

In Stock, only 4 left!

0

524

Cub Cadet BS-692296

Seal-Dipstick Tube

$4.99

$

In Stock, only 3 left!

0

525

Cub Cadet BS-495265

Tube-Dipstick

$

$

Not available

621

Cub Cadet BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

737

Cub Cadet BS-692511

Screw (Oil Filter Adapter)

$3.99

$

Usually ships in 2-12 days

0

745

Cub Cadet BS-691648

Screw (Brake)

$4.99

$

Usually ships in 2-12 days

0

750

Cub Cadet BS-691683

Screw (Oil Pump Cover)

$

$

Currently unavailable

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Cub Cadet BS-692047

Dipstick/Tube Assembly

$

$

Not available

922

Cub Cadet BS-691831

Spring-Brake

$10.99

$

In Stock, only 2 left!

0

923

Cub Cadet BS-691994

Brake
(Superseded to BS-796387)

$

$

Not available

943

Cub Cadet BS-692514

Seal-O Ring (Oil Pump Cover)

$5.99

$

Usually ships in 2-12 days

0

965

Cub Cadet BS-692507

Cover-Oil Pump

$8.49

$

Usually ships in 2-12 days

0

988

Cub Cadet BS-692515

Gasket-Oil Adapter

$4.99

$

Usually ships in 2-12 days

0

1024

Cub Cadet BS-692508

Pump-Oil

$39.99

$

Usually ships in 2-12 days

0

1027

Cub Cadet BS-692513

Filter-Oil

$15.99

$

In Stock, only 1 left!

0

1028

Cub Cadet BS-692516

Adapter-Oil Filter

$34.99

$

Usually ships in 2-12 days

0

1055

Cub Cadet BS-692623

Tube-Oil Pump

$7.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692752

Short Block

Note: N/S

$

$

Currently unavailable

Cub Cadet BS-122672-0020

Complete Engine

Note: N/S

$

$

Not available
