Scag SPZ61H-27SR - Scag Patriot 61" Zero-Turn Mower, 27hp Scag SR 803 (SN: W1800000 - W1899999) 61H CUTTER DECK Parts Lookup with Diagrams

1

Scag 425260

Belt Cover

$54.99

$

Usually ships in 2-12 days

2

Scag 04063-01

Key, 1/4 x 1/4 x 1.25" Pulley Mtg.

$1.49

$

In Stock, only 4 left!

3

Scag 04112-06

Nut, 3/4-16 Spriral Lock

$11.99

$

In Stock, Qty 5

4

Scag 484026

Pulley, 6.32" OD - 25mm Bore

$31.99

$

In Stock, only 2 left!

5

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

6

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

7

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, only 2 left!

8

Scag 483422

Pulley, 5" Idler

$20.99

$

In Stock, Qty 11

9

Scag 484031

Belt, Cutter Deck

$113.99

$

In Stock, only 1 left!

10

Scag 424479

Brace, Pulley

$5.49

$

Usually ships in 2-12 days

11

Scag 43711

Spacer, Idler Pulley

$6.49

$

Usually ships in 2-12 days

12

Scag 425264

Support, Idler Pivot

$19.99

$

Usually ships in 2-12 days

13

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

14

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

15

Scag 483453-03

Bearing, Plastic

$7.99

$

In Stock, only 2 left!

16

Scag 462037

Idler Arm (incl. item #15)

$75.99

$

In Stock, only 1 left!

17

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

18

Scag 43708

Pivot, Idler

$31.99

$

In Stock, only 1 left!

19

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

20

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

21

Scag 483375

Spring, Cutter Deck Idler

$85.99

$

In Stock, only 1 left!

22

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

23

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special Lock

$1.49

$

In Stock, Qty 8

24

Scag 463309

Cutter Deck w/Decals, SPZ61

$1193.99

$

Usually ships in 2-12 days

25

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

26

Scag 482879

Cutter Blade, 21" Standard

$25.99

$

In Stock, Qty 20+

27

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

28

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 19

29

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$1.99

$

In Stock, Qty 20+

30

Scag 461950

Spindle Assembly

$137.99

$

In Stock, only 1 left!

31

Scag 483304

Debris Shield

$6.49

$

In Stock, only 1 left!

32

Scag 483303

Bearing

$13.99

$

In Stock, Qty 17

33

Scag 43693

Spacer, Bearing

$22.99

$

Usually ships in 2-12 days

34

Scag 462014

Spindle Housing Assembly

$129.99

$

In Stock, only 1 left!

35

Scag 43694

Protector, Bearing

$28.99

$

In Stock, only 1 left!

36

Scag 43695

Shaft, Spindle

$49.99

$

In Stock, only 1 left!

37

Scag 04001-77

Bolt, Hex Head, 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

38

Scag 04003-26

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.99

$

In Stock, Qty 20+

39

Scag 481632

Bolt, Carriage 3/8-16 x 4"

$21.99

$

In Stock, Qty 20+

40

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

41

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

42

Scag 427865

Bracket, Anti-Scalp, (Black)

$20.99

$

In Stock, only 1 left!

43

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

44

Scag 451926

Shaft Weldment, Guide Roller

$25.99

$

In Stock, only 1 left!

45

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

46

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 3 left!

47

Scag 483361

Bolt, Carriage 7/16-14 x 2-1/4"

$21.99

$

In Stock, only 1 left!

48

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 10

49

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

50

Scag 462213

Discharge Chute Assembly

$99.99

$

Usually ships in 2-12 days

Scag 462476

CA Discharge Chute, SMFZ-61

Note: California Models Only (not shown)

$134.99

$

Usually ships in 2-12 days

51

Scag 482245

Spring, Discharge Chute

$10.99

$

In Stock, Qty 5

52

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

53

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

54

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

55

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

56

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

57

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 9

Scag 425867

Turbo Baffle

Note: California Models Only (not shown)

$36.99

$

Usually ships in 2-12 days

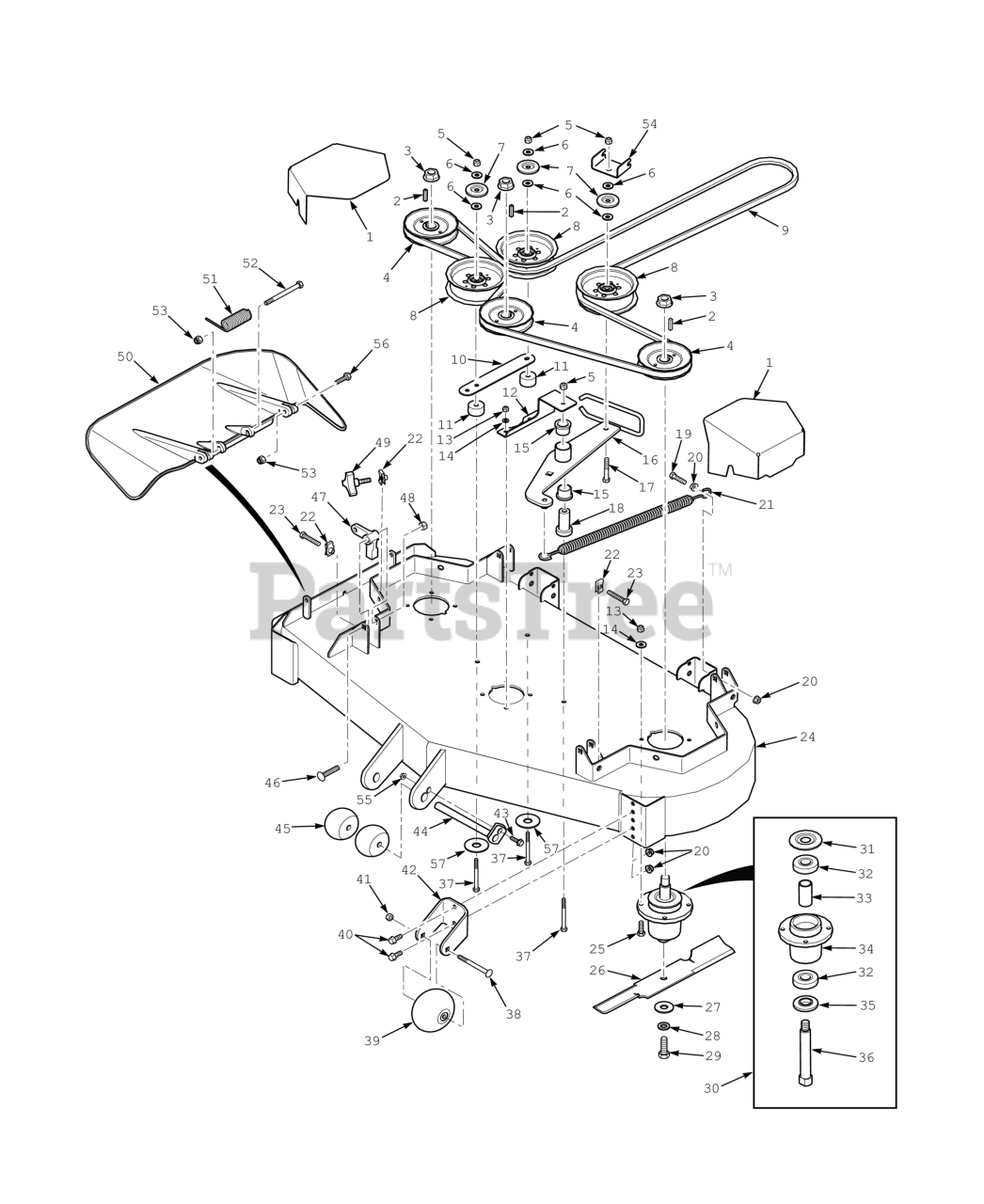

SPZ61H-27SR - Scag Patriot 61" Zero-Turn Mower, 27hp Scag SR 803 (SN: W1800000 - W1899999) 61H CUTTER DECK Parts Diagram

61H CUTTER DECK Parts Diagram
