SPZ61H-23FX - Scag Patriot 61" Zero-Turn Mower, 23hp Kawasaki (SN: V4000000 - V4099999) DRIVE SYSTEM COMPONENTS Parts Diagram

Patriot 61" Zero-Turn Mower, 23hp Kawasaki

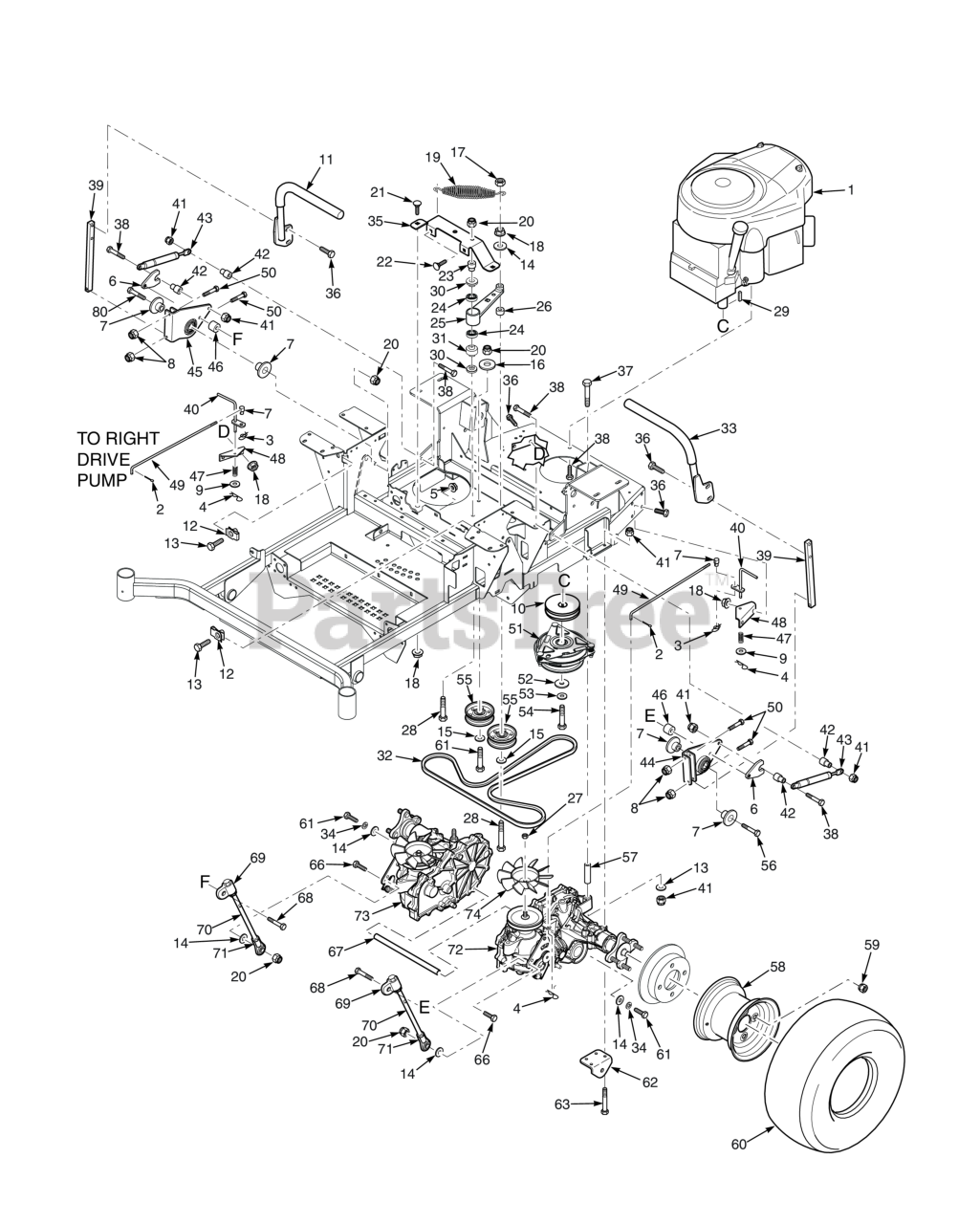

DRIVE SYSTEM COMPONENTS Parts Diagram

  • Title

1

Scag 485706

Engine, Kawasaki - 22FX

Note: Not available through Scag.

$

$

Currently unavailable

Scag 485707

Engine, Kawasaki - 24FX

Note: Not available through Scag.

$

$

Currently unavailable

Scag 486137

Engine, Kohler - 23CV

Note: Not available through Scag.

$

$

Currently unavailable

Scag 487473

Engine, Kohler - 25ZT

$

$

Currently unavailable

Scag 486138

Engine, Kohler - 25CV

Note: Not available through Scag.

$

$

Currently unavailable

Scag 485977

Engine, Briggs & Stratton Vanguard

Note: Not available through Scag.

$

$

Currently unavailable

Scag 487207

Engine, Briggs & Stratton Vanguard - 27CX

$

$

Currently unavailable

Scag 487173

Engine, Scag - 27SR

$

$

Not available

Scag 482510

Extension, Oil Drain 2.3" - Kawasaki

$36.99

$

Usually ships in 2-12 days

0

2

Scag 04061-01

COTTER PIN, 3/32 X 1"

$0.99

$

In Stock, Qty 11

0

3

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, only 4 left!

0

4

Scag 04062-02

HAIR PIN, .08 DIAMETER X 1-3/16"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

6

Scag 424687

Nut, Control Linkage

$5.99

$

Usually ships in 2-12 days

0

7

Scag 43719

Spacer, Linkage

$1.49

$

Usually ships in 2-12 days

0

8

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

9

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

10

Scag 484373

Pulley, 5" OD - 1.125 Bore (SPZ61H)

$58.99

$

Usually ships in 2-12 days

0

11

Scag 462434

Handle Bar Assembly RH, w/Grip

$82.99

$

Usually ships in 2-12 days

0

Scag 484376

Grip, Control Handle

$10.99

$

Usually ships in 2-12 days

0

12

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

13

Scag 04107-01

Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock
(Superseded to 04107-03)

$0.99

$

In Stock, Qty 5

0

14

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

15

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, only 3 left!

0

17

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

19

Scag 483087

Spring, Transmission Idler

$45.99

$

In Stock, only 1 left!

0

20

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

22

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

23

Scag 43715

Shaft Pivot, Idler Arm

$17.99

$

In Stock, only 1 left!

0

24

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

25

Scag 463017

Trans. Idler Arm Assy. (Includes 24, 79)

$

$

Not available

26

Scag 43720

Spacer, Idler Pulley - SFZ61

$4.99

$

In Stock, only 1 left!

0

27

Fan Nut (order through Hydro-Gear)

Note: Not available through Scag.

$

$

Not available

28

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 12

0

29

Scag 04063-24

Key, 1/4" x 1/4" x 2-3/4" Pulley Mtg.

$1.99

$

In Stock, only 3 left!

0

Scag 04063-03

KEY, 1/4 X 1/4 X 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

30

Scag 431049

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

0

31

Scag 431073

Spacer, Bearing

$32.99

$

Usually ships in 2-12 days

0

32

Scag 484372

Belt, Transmission Drive - SFZ61

$51.99

$

In Stock, Qty 5

0

33

Scag 462433

Handle Bar Assembly LH, w/Grip

$71.99

$

Usually ships in 2-12 days

0

Scag 484376

Grip, Control Handle

$10.99

$

Usually ships in 2-12 days

0

34

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 7

0

35

Scag 424476

Support, Idler Arm

$16.99

$

Usually ships in 2-12 days

0

36

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

37

Scag 04001-95

HEX HEAD BOLT, 5/16-18 X 5"

$2.49

$

In Stock, Qty 6

0

38

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

Scag 04011-07

Bolt, Hex Head Self-Tap 3/8-16 x 1-1/4" (Kohler x3 - 25EFI, Kohler x4 - 29EFI)

$3.49

$

In Stock, Qty 11

0

Scag 04017-15

CAP SCREW, 5/16-18 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 7

0

Scag 04011-14

Screw, Self-Tapping 1/4-20 x 3/4

$0.99

$

In Stock, Qty 13

0

39

Scag 424498

Bar, Control Lever

$30.99

$

Usually ships in 2-12 days

0

40

Scag 451912

Dump Valve Lever

$14.99

$

Usually ships in 2-12 days

0

41

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

42

Scag 43602

Spacer, Pump Dampener

$2.99

$

In Stock, only 2 left!

0

43

Scag 484151

Gas Damper

$70.99

$

In Stock, Qty 6

0

44

Scag 462127

Control Link, LH

$75.99

$

Usually ships in 2-12 days

0

45

Scag 462128

Control Link, RH

$88.99

$

Usually ships in 2-12 days

0

46

Scag 43674

Spacer, Idler Pulley - SFZ52

$2.49

$

In Stock, only 2 left!

0

47

Scag 482070

Spring, Dump Valve Link

$6.99

$

Usually ships in 2-12 days

0

48

Scag 424639

Bracket, Dump Mounting

$4.49

$

Usually ships in 2-12 days

0

49

Scag 44162

Rod, Brake Adjustment

$8.99

$

Usually ships in 2-12 days

0

50

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 16

0

51

Scag 462228

Electric Clutch Assembly - SFZ52 & SFZ61

$361.99

$

Usually ships in 2-12 days

0

52

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 12

0

53

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

54

Scag 04102-08

Bolt, Hex Head 7/16-20 x 1-1/2" Patch Kawasaki 22FX & 23FX

$2.49

$

In Stock, Qty 9

0

Scag 04102-01

Bolt, Hex Head 7/16-20 x 1-3/4"- Kohler / B&S

$1.99

$

Usually ships in 2-12 days

0

55

Scag 486045

Pulley, 3-1/2" Dia.

$20.99

$

In Stock, Qty 20+

0

56

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

0

57

Scag 43857

Spacer, Axle - SFZ61

$17.99

$

Usually ships in 2-12 days

0

58

Scag 482414

Rim w/Valve Stem, (Scag Gold) - SPZ61H

$137.99

$

In Stock, only 1 left!

0

Scag 486292

Rim w/Valve Stem, (Black) - SPZ61H

$154.99

$

Usually ships in 2-12 days

0

59

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0

60

Scag 485952

Wheel Assembly, 24 x 12-12 (SPZ61)

$361.99

$

Usually ships in 2-12 days

0

Scag 486291

Tire/Rim Assy, (Black) 24 x 12-12 (SPZ61)

$390.99

$

Usually ships in 2-12 days

0

Scag 485953

Tire, 24 x 12-12 (SPZ61)

$262.99

$

Usually ships in 2-12 days

0

61

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

62

Scag 424489

Bracket, Push Arm Link

$11.99

$

Usually ships in 2-12 days

0

63

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3.00"

$0.99

$

In Stock, Qty 9

0

64

Clip, Brake Lever (order through Hydro-Gear)

Note: Not available through Scag.

$

$

Not available

65

Lever, Brake (order through Hydro-Gear)

Note: Not available through Scag.

$

$

Not available

66

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

67

Scag 43701

Spacer, Axles

$26.99

$

In Stock, only 1 left!

0

68

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

0

69

Scag 483563

Rod End, Adjustable 3/8-24

$35.99

$

Usually ships in 2-12 days

0

Scag 04020-25

Nut, 3/8-24 UNF R.H. Thread

$0.99

$

In Stock, only 2 left!

0

70

Scag 484405

Linkage, Pump - SFZ61

$65.99

$

Usually ships in 2-12 days

0

71

Scag 483575

Stake, Rod End Assembly
(Superseded to 483574)

$67.99

$

Usually ships in 2-12 days

0

72

Scag 486724

Transaxle Assy., LH (ZY-GCEE-SL7F-11TX) SPZ61H

$2168.99

$

Usually ships in 2-12 days

0

73

Scag 486725

Transaxle Assy., RH (ZY-KCEE-SL7G-11TX) SPZ61H

$2168.99

$

Usually ships in 2-12 days

0

74

Fan (order through Hydro-Gear)

Note: Not available through Scag.

$

$

Not available
