SPZ61H-23FX - Scag Patriot 61" Zero-Turn Mower, 23hp Kawasaki (SN: S7100000 - S7199999) SPZ - ELECTRICAL SCHEMATIC Parts Diagram

Patriot 61" Zero-Turn Mower, 23hp Kawasaki

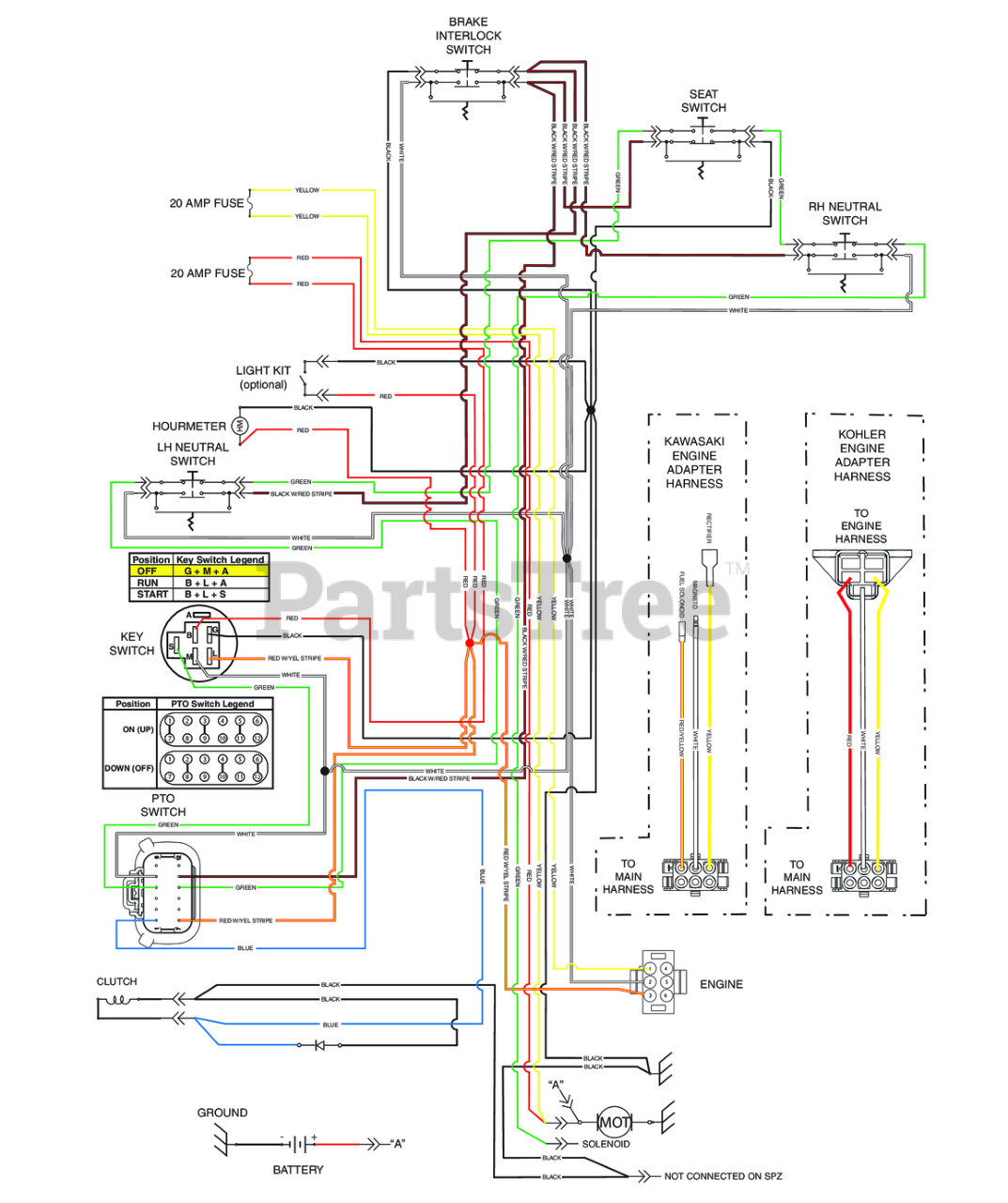

SPZ - ELECTRICAL SCHEMATIC Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
