SPZ61-25CV - Scag Patriot 61" Zero-Turn Mower, 25hp Kohler (SN: N8300000 - N8399999) ZT-3400 HYDRAULIC AXLE ASSEMBLY - SPZ61 Parts Diagram

Patriot 61" Zero-Turn Mower, 25hp Kohler

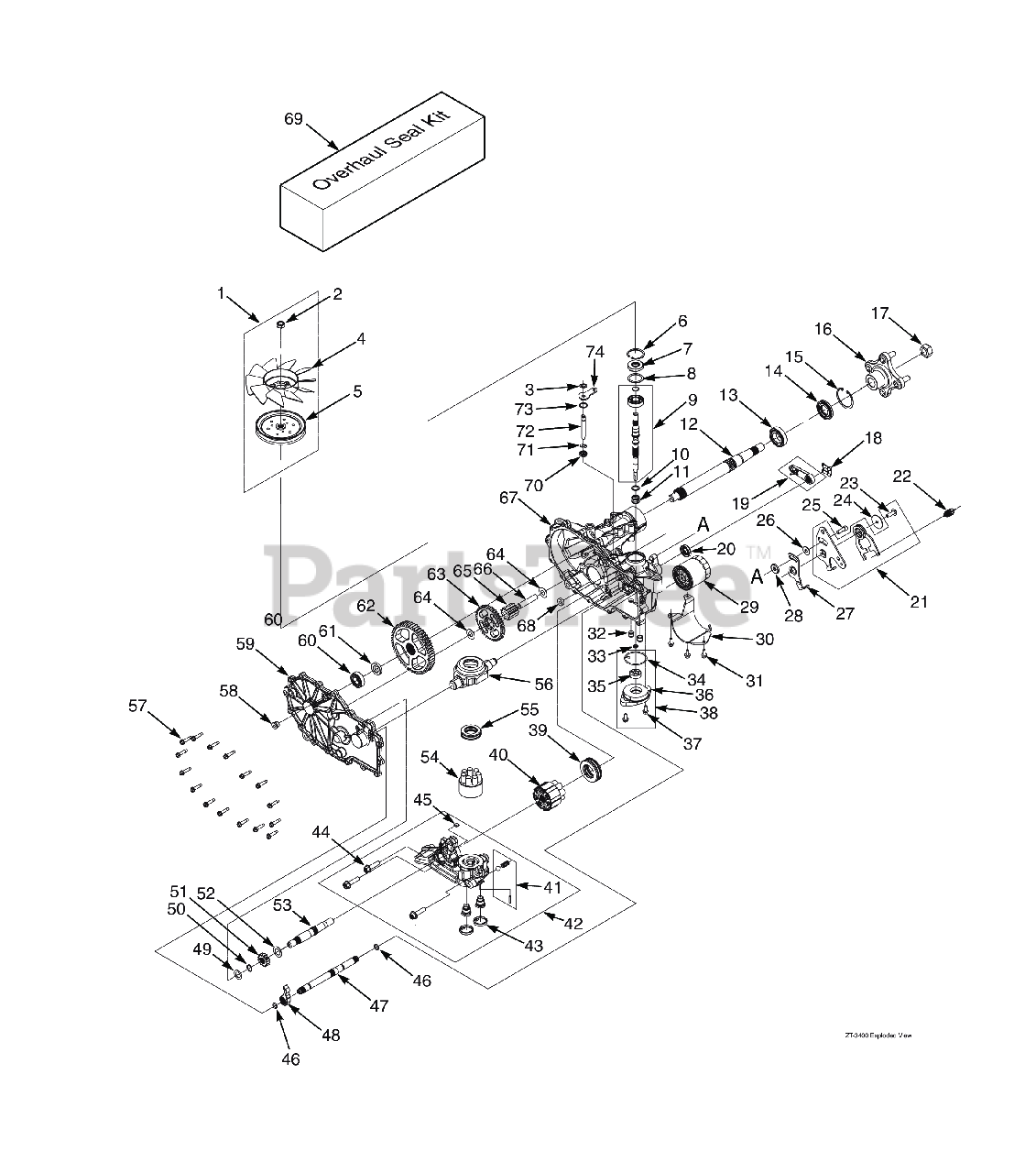

ZT-3400 HYDRAULIC AXLE ASSEMBLY - SPZ61 Parts Diagram

  • Title

1

Scag HG71907

Kit, Fan & Pulley

$

$

Currently unavailable

2

Scag HG44133

Fan Nut (order through Hydro-Gear)

$

$

Currently unavailable

3

Scag HG51523

Washer, OD Slotted .53 x 1.63 x .06

$

$

Currently unavailable

4

Scag HG52747

Fan, 7" (10 Blade)

$

$

Currently unavailable

5

Scag HG53435

Pulley"

$

$

Currently unavailable

6

Scag HG53029

Shaft, 2-Speed, Bevel

$

$

Currently unavailable

7

Scag HG 51161

Seal, Lip 17 x 40 x 7

$9.99

$

Usually ships in 2-12 days

0

8

Scag HG 50951

Washer, 1.23 x 1.56 x .04

$3.99

$

Usually ships in 2-12 days

0

9

Scag HG71978

Kit, Input Shaft

$

$

Currently unavailable

10

Scag HG 2003017

Washer, Flat .59 x .79 x .04

$

$

Not available

11

Scag HG 2003014

Spring, Block

$

$

Not available

12

Scag HG53528

Shaft, Axle

$

$

Currently unavailable

13

Scag HG50771

Bearing, Ball 1.0 x 52 x 15 Open

$

$

Currently unavailable

14

Scag HG50772

Seal, Lip 25 x 52 x 10 TC Gray

$

$

Currently unavailable

15

Scag HG50859

R i n g , Retaining 2.06 Internal

$

$

Currently unavailable

16

Scag HG71405

Hub, 4-Bolt

$88.99

$

Usually ships in 2-12 days

0

17

Scag HG50863

Nut, Hex Locking 3/4-16

$

$

Currently unavailable

18

Scag HG52027

Clip, Retaining

$

$

Currently unavailable

19

Scag HG52639

Lever, Brake (order through Hydro-Gear)

$

$

Currently unavailable

20

Scag HG51140

Seal, Lip 18 x 32 x 7

$

$

Currently unavailable

21

Scag HG71595

Kit, RTN Bi-Directional (Left Side)

$

$

Currently unavailable

Scag HG71598

Kit, RTN Bi-Directional (Right Side)

$

$

Currently unavailable

22

Scag HG51605

Spring, Extension, RTN - 44lbs

$

$

Currently unavailable

23

Scag HG51812

Bolt, Hex Head Cap Screw 5/16-24 x 1" Patch

$

$

Currently unavailable

24

Scag HG51950

Washer, .343 x 1.5 x .062

$

$

Currently unavailable

25

Scag HG51616

Bolt, Hex Head Cap Screw 5/16-24 x 1" Patch

$

$

Currently unavailable

26

Scag HG44130

Washer, 7/16 x 7/8 OD x .06 HT

$

$

Not available

27

Scag HG51945

Arm, Neutral (Right Side)

$

$

Currently unavailable

Scag HG51946

Arm, Neutral (Left Side)

$

$

Currently unavailable

28

Scag HG52527

Spacer, .320 x 1.005 x .179

$

$

Currently unavailable

29

Scag HG52114

Filter, Oil

$24.99

$

Usually ships in 2-12 days

0

30

Scag HG52257

Guard, Filter (Right Side)
(Superseded to HG53655)

$33.99

$

Usually ships in 2-12 days

0

Scag HG52247

Guard, Filter (Left Side)

$

$

Currently unavailable

31

Scag HG53464

Screw, Hex Flange 1/4-20 x .625

$

$

Currently unavailable

32

Scag HG52157

Tibe, Connecting

$

$

Currently unavailable

33

Scag HG53456

Seal, Lip 8 x 12 x 3-VC

$

$

Currently unavailable

34

Scag HG52250

O-Ring, -137 x .103 x 2.050

$

$

Currently unavailable

35

Scag HG 50273

Gerotor Assembly (1.9 cc)

$

$

Not available

36

Scag HG53468

Cover, Charge Pump

$

$

Currently unavailable

37

Scag HG53464

Screw, Hex Flange 1/4-20 x .625

$

$

Currently unavailable

38

Scag HG71977

Kit, Charge Pump

$

$

Currently unavailable

39

Scag HG51462

Thrust Ball Bearing Assembly

$40.99

$

Usually ships in 2-12 days

0

40

Scag HG71579

Kit, Motor Cylinder Block

$

$

Currently unavailable

41

Scag HG71436

Kit, Charge Relief

$

$

Currently unavailable

42

Scag HG71972

Kit, Center Section (Right Side)

$

$

Currently unavailable

Scag HG71973

Kit, Center Section (Left Side)

$

$

Currently unavailable

43

Scag HG52162

Seal, Plug 1.250 x .250

$

$

Currently unavailable

44

Scag HG52137

Screw, Hex Flange Head 3/8-16 x 1-1/2"

$

$

Currently unavailable

45

Scag HG51448

Plate, By-Pass

$

$

Currently unavailable

46

Scag HG51804

O-Ring, -111 x .103 x 424

$

$

Currently unavailable

47

Scag HG42640

Shaft, Brake

$

$

Currently unavailable

48

Scag HG52776

Pawl, Brake

$

$

Currently unavailable

49

Scag HG44371

Washer, HT .62 ID x 1.0 OD x .05 Thick

$1.99

$

Usually ships in 2-12 days

0

50

Scag HG44145

Ring, Retaining .625

$

$

Currently unavailable

51

Scag HG52342

Gear, 13T Steel

$

$

Currently unavailable

52

Scag HG51069

Washer, .72 x 1.16 x .04

$

$

Currently unavailable

53

Scag HG52150

Shaft, Motor

$

$

Currently unavailable

54

Scag HG 71971

Assembly, Block 7 Piston

$

$

Currently unavailable

55

Scag HG 53502

Bearing, Thrust

$

$

Currently unavailable

56

Scag HG51048

Trunnion, Swashplate

$

$

Currently unavailable

57

Scag HG53246

Bolt, Hex Head 1/4-20 x 1-1/8"

$

$

Currently unavailable

58

Scag HG9005110-5600

Straight Thread Plug

$

$

Currently unavailable

59

Scag HG71990

Kit, Cover (Right Side)

$

$

Currently unavailable

Scag HG71992

Kit, Cover (Left Side)

$

$

Currently unavailable

60

Scag HG44121

Bearing, Ball .75 x 40 x 12

$

$

Currently unavailable

61

Scag HG53336

Spacer, .750 x 1.320 x .257

$

$

Currently unavailable

62

Scag HG43327

Gear, 54T

$

$

Currently unavailable

63

Scag HG52110

Gear, 45T

$

$

Currently unavailable

64

Scag HG50132

Washer, .5 x 1.0 x .03

$

$

Currently unavailable

65

Scag HG52341

Gear, 14T Steel

$

$

Currently unavailable

66

Scag HG51083

Jackshaft Pin

$

$

Currently unavailable

67

Scag HG72025

Kit, Housing Main (Right Side)

$

$

Currently unavailable

Scag HG72026

Kit, Housing Main (Left Side)

$

$

Currently unavailable

68

Scag HG51100

Magnet, Ring

$

$

Currently unavailable

69

Scag HG71976

Seal Kit
(Superseded to HG73239)

$117.99

$

Usually ships in 0 days

0

70

Scag HG51626

Seal, Lip .375 x .75 x .25

$

$

Currently unavailable

71

Scag HG51628

Ring, .Retaining .375 External

$

$

Currently unavailable

72

Scag HG52136

Rod, By-Pass

$

$

Currently unavailable

73

Scag HG51677

Ring, Retaining .750 Internal

$

$

Currently unavailable

74

Scag HG51629

Arm, By-Pass

$

$

Currently unavailable

75

Scag HG51630

Ring, Retainging .375 External

$

$

Currently unavailable
