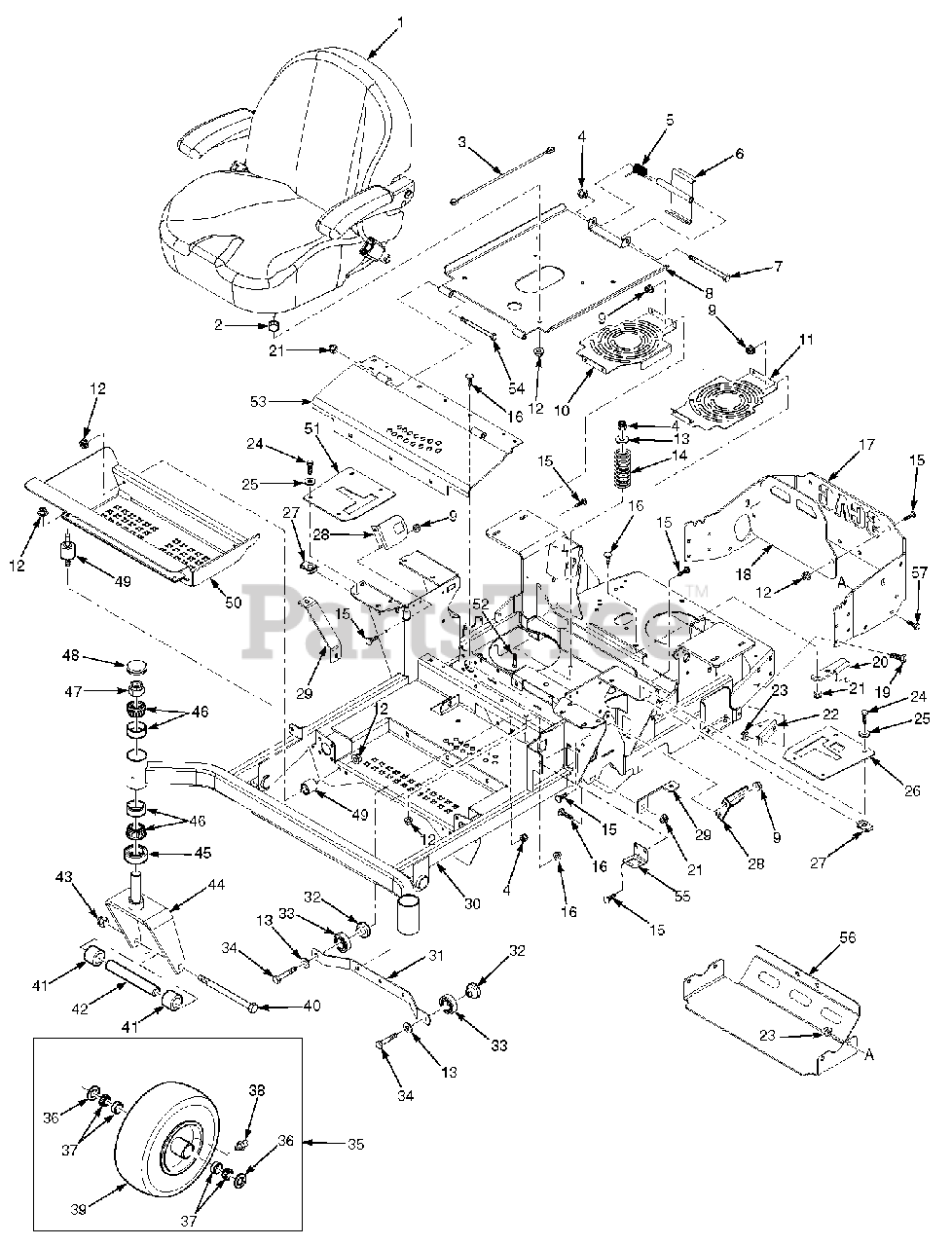

SPZ61-23FX - Scag Patriot 61" Zero-Turn Mower, 23hp Kawasaki (SN: M2500000 - M2599999) Sheet Metal Components - SPZ Parts Diagram

Patriot 61" Zero-Turn Mower, 23hp Kawasaki

Sheet Metal Components - SPZ Parts Diagram

  • Title

1

Scag 484375

Seat Assembly

$

$

Not available

2

Scag 43336

Spacer

$9.99

$

Usually ships in 2-12 days

0

3

Scag 483559

Cable, Seat Stop

$8.99

$

Usually ships in 2-12 days

0

4

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 483371

Spring, Seat Latch

$7.99

$

Usually ships in 2-12 days

0

6

Scag 451883

Weldment, Seat Latch

$33.99

$

Usually ships in 2-12 days

0

7

Scag 04001-100

Bolt, Hex Head 3/8-16 x 6"

$5.99

$

Usually ships in 2-12 days

0

8

Scag 452264

Seat Plate Weldment
(Superseded to 462446)

$126.99

$

Usually ships in 2-12 days

0

9

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

10

Scag 425698

Fan Cover, RH

$41.99

$

Usually ships in 2-12 days

0

11

Scag 425697

Fan Cover, LH

$41.99

$

In Stock, only 1 left!

0

12

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

14

Scag 483372

Spring, Seat

$12.99

$

Usually ships in 2-12 days

0

15

Scag 04003-07

Bolt, Carriage 1/4-20 x 1"

$0.99

$

In Stock, Qty 9

0

16

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 427122

Bumper - SPZ

$95.99

$

Usually ships in 2-12 days

0

18

Scag 426053

Guard, Engine

$29.99

$

Usually ships in 2-12 days

0

19

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

20

Scag 425696

Anti-Rotation Bracket

$13.99

$

Usually ships in 2-12 days

0

21

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

22

Scag 424639

Bracket, Dump Valve

$4.49

$

Usually ships in 2-12 days

0

23

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

25

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

26

Scag 462483

Control Plate w/Decal, LH

$29.99

$

Usually ships in 2-12 days

0

27

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

28

Scag 424511

Bracket, Switch Mount

$6.99

$

Usually ships in 2-12 days

0

29

Scag 425890

Bracket, Tank Mount, SPZ52

$10.99

$

Usually ships in 2-12 days

0

29

Scag 425700

Bracket, Tank Mount, SPZ61

$15.99

$

Usually ships in 2-12 days

0

30

Scag 462520

Mainframe Assy., w/Decals - SPZ52
(Superseded to 462981)

$1640.99

$

Usually ships in 2-12 days

0

30

Scag 462443

Mainframe Assy., w/Decals - SPZ61
(Superseded to 463003)

$1793.99

$

Usually ships in 2-12 days

0

31

Scag 424480

Support, Deck Guide

$7.99

$

Usually ships in 2-12 days

0

32

Scag 43703

Spacer, Bearing

$11.99

$

Usually ships in 2-12 days

0

33

Scag 483379

Bearing

$5.49

$

In Stock, Qty 7

0

34

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

35

Scag 482503

Wheel Assembly - SPZ52

$206.99

$

In Stock, only 1 left!

0

35

Scag 482504

Wheel Assembly - SPZ61

$237.99

$

In Stock, only 3 left!

0

36

Scag 482622

Seal

$9.99

$

In Stock, Qty 20+

0

37

Scag 482621

Bearing

$20.99

$

In Stock, Qty 20+

0

38

Scag 48114-04

Fitting, Grease

$0.99

$

In Stock, Qty 20+

0

39

Scag 481613

Tire, 13 x 5-6 - SPZ52

$120.99

$

In Stock, only 2 left!

0

39

Scag 482625

Rim - SPZ52

$229.99

$

Usually ships in 2-12 days

0

39

Scag 482619

Tire, 13 x 6.5-6 - SPZ61

$171.99

$

Usually ships in 2-12 days

0

39

Scag 482620

Rim - SPZ61

$238.99

$

Usually ships in 2-12 days

0

40

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2"

$5.49

$

In Stock, Qty 20+

0

40

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2"

$5.99

$

In Stock, Qty 20+

0

41

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

42

Scag 43581

Sleeve, Caster Wheel - SPZ52

$9.49

$

In Stock, Qty 20+

0

42

Scag 43583

Sleeve, Caster Wheel - SPZ61

$13.99

$

In Stock, Qty 20+

0

43

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

44

Scag 451471

Yoke Weldment - SPZ52

$143.99

$

Usually ships in 2-12 days

0

44

Scag 451658

Yoke Weldment - SPZ61

$111.99

$

In Stock, only 1 left!

0

45

Scag 481025

Seal, 2" OD x 1.625 ID

$4.99

$

In Stock, Qty 20+

0

46

Scag 48668

Bearing Set

$23.99

$

In Stock, Qty 20+

0

47

Scag 04021-20

Nut, Elastic Stop 1"-14

$4.99

$

In Stock, Qty 20+

0

48

Scag 484195

Grease Cap

$2.49

$

In Stock, Qty 20+

0

49

Scag 483493

Rubber Isolator

$23.99

$

In Stock, only 2 left!

0

50

Scag 451889

Footplate Weldment, SPZ52

$114.99

$

Usually ships in 2-12 days

0

50

Scag 452263

Footplate Weldment, SPZ61

$151.99

$

Usually ships in 2-12 days

0

51

Scag 462484

Control PLate w/Decal, RH

$20.99

$

Usually ships in 2-12 days

0

52

Scag 04003-11

Bolt, Carriage 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

53

Scag 462886

Deck Lift Cover w/Decal, SPZ52

$117.99

$

Usually ships in 2-12 days

0

53

Scag 462885

Deck Lift Cover w/Decal, SPZ61

$134.99

$

Usually ships in 2-12 days

0

54

Scag 04001-73

Bolt, Hex Head 5/16-18 x 3-3/4"

$0.99

$

In Stock, Qty 9

0

55

Scag 425889

Switch Bracket

$11.99

$

Usually ships in 2-12 days

0

56

Scag 427123

Heat Shield

$58.99

$

Usually ships in 2-12 days

0

57

Scag 04001-18

Bolt, Hex Head 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0
