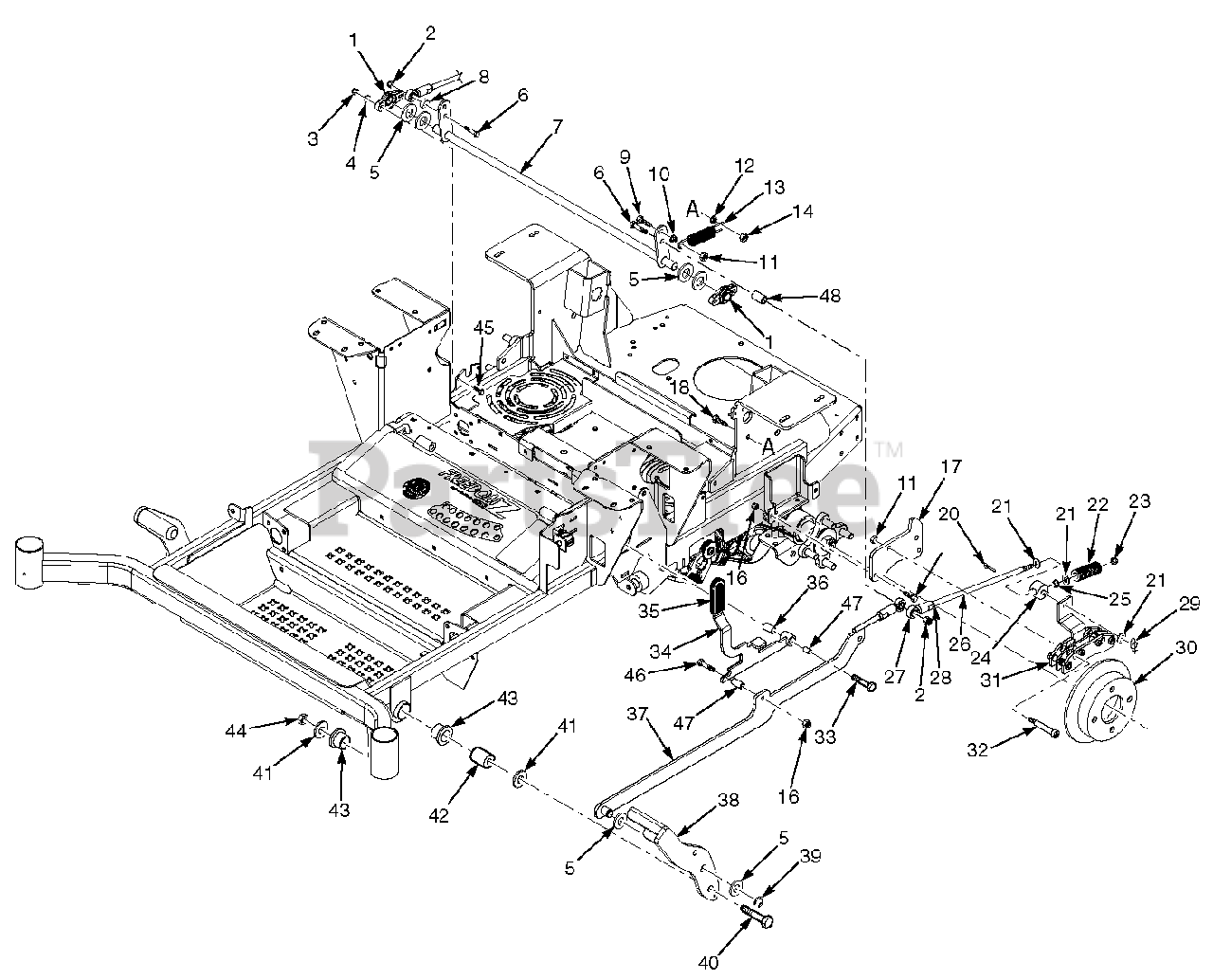

SPZ61-23FX - Scag Patriot 61" Zero-Turn Mower, 23hp Kawasaki (SN: M2500000 - M2599999) Brake Components - SPZ Parts Diagram

Patriot 61" Zero-Turn Mower, 23hp Kawasaki

Brake Components - SPZ Parts Diagram

  • Title

1

Scag 483504

Bearing

$16.99

$

Usually ships in 2-12 days

0

2

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

4

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

5

Scag 04040-09

Flatwasher, 5/8-.656 x 1.312 x .095

$0.99

$

In Stock, Qty 12

0

6

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

7

Scag 452269

Weldment, Brake Lever

$44.99

$

Usually ships in 2-12 days

0

8

Scag 43674

Spacer

$2.49

$

In Stock, only 2 left!

0

9

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

10

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

11

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 484038

Spring

$25.99

$

Usually ships in 2-12 days

0

14

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

16

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 425680

Mounting Bracket, Brake

$15.99

$

Usually ships in 2-12 days

0

18

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04061-02

Cotter Pin, 3/32 x 3/4"

$0.99

$

In Stock, Qty 11

0

21

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, only 4 left!

0

22

Scag 484535

Spring, Brake

$10.99

$

Usually ships in 2-12 days

0

23

Scag 04021-18

Nut, Elastic Stop 3/8-24

$1.49

$

In Stock, Qty 9

0

24

Scag 462452

Swivel Assembly, Brake

$20.99

$

Usually ships in 2-12 days

0

25

Scag 483453-23

Bearing

$4.99

$

Usually ships in 2-12 days

0

26

Scag 04004-54

Link, Brake
(Superseded to 491881)

$75.99

$

Usually ships in 2-12 days

0

27

Scag 482330

Rod End

$24.99

$

In Stock, only 1 left!

0

28

Scag 04020-25

Nut, 3/8-24 UNF Jam

$0.99

$

In Stock, only 2 left!

0

29

Scag 04069-01

Pin, Rue Cotter - 3/8" Dia.

$1.49

$

In Stock, Qty 20+

0

30

Scag 43853

Brake Hub

$125.99

$

Usually ships in 2-12 days

0

31

Scag 483701

Brake Caliper

$112.99

$

In Stock, only 4 left!

0

32

Scag 04009-17

Bolt, Shoulder 1/2 x 2-1/2"

$6.99

$

Usually ships in 2-12 days

0

33

Scag 04009-16

Bolt, Shoulder 1/2 x 2"

$5.49

$

Usually ships in 2-12 days

0

34

Scag 462485

Latch Assembly, Brake

Note: (incl. # 35, #36)

$64.99

$

Usually ships in 2-12 days

0

35

Scag 482102

Grip, Brake Lever

$3.99

$

In Stock, Qty 13

0

36

Scag 483453-22

Bearing

$2.99

$

Usually ships in 2-12 days

0

37

Scag 462419

Linkage Weldment Assembly, Brake

$106.99

$

Usually ships in 2-12 days

0

38

Scag 452278

Brake Pedal Weldment
(Superseded to 452922)

$67.99

$

Usually ships in 2-12 days

0

39

Scag 04050-01

Retaining Ring, .625 Ext. "E"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0

41

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

42

Scag 43710

Sleeve

$17.99

$

In Stock, only 2 left!

0

43

Scag 483453-03

Bearing

$7.99

$

In Stock, Qty 20+

0

44

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0

45

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

46

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

47

Scag 43866

Sleeve, Handle Pivot

$11.99

$

In Stock, only 3 left!

0

48

Scag 43720

Spacer

$4.99

$

In Stock, only 1 left!
