SPZ52H-23CV - Scag Patriot 52" Zero-Turn Mower, 23hp Kohler (SN: R7900000 - R7999999) CUTTER DECK CONTROLS Parts Diagram

Patriot 52" Zero-Turn Mower, 23hp Kohler

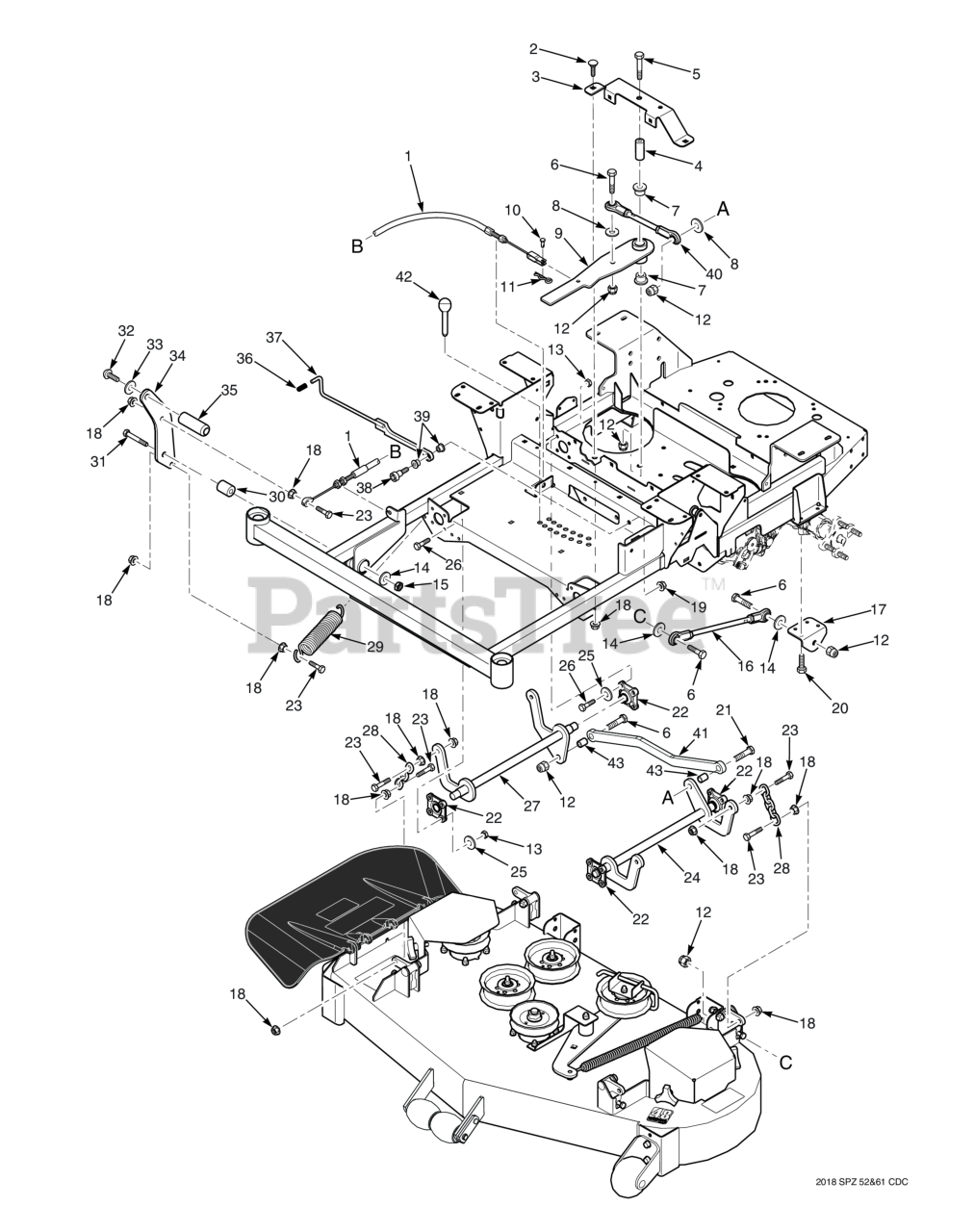

CUTTER DECK CONTROLS Parts Diagram

  • Title

1

Scag 483341

Cable, Deck Lift

$73.99

$

In Stock, Qty 8

0

2

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

3

Scag 424476

Support, Idler Arm

$16.99

$

Usually ships in 2-12 days

0

4

Scag 43710

Spacer, Deck Lift Pivot

$17.99

$

In Stock, only 2 left!

0

5

Scag 04001-90

Bolt, Hex Head, 1/2-13 x 3-1/4"

$2.99

$

Usually ships in 2-12 days

0

6

Scag 04001-72

Hex Head Bolt, 1/2-13 x 2"

$1.99

$

Usually ships in 2-12 days

0

7

Scag 483453-03

Bearing, Plastic

$7.99

$

In Stock, Qty 20+

0

8

Scag 04040-07

Flatwasher, 1/2 - .531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

9

Scag 462215

DECKLIFT BELLCRANK ASSY, SFZ

$66.99

$

Usually ships in 2-12 days

0

10

Scag 04064-17

Clevis Pin, 5/16 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

11

Scag 04062-01

COTTER PIN, HAIR - 0.94 X 1.62

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

15

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

16

Scag 483332

Linkage, Push Arm

$71.99

$

Usually ships in 2-12 days

0

17

Scag 424489

Bracket, Push Arm Link

$11.99

$

Usually ships in 2-12 days

0

18

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

19

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3.00"

$0.99

$

In Stock, Qty 9

0

21

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0

22

Scag 483334

Bearing, Deck Lift - 48V & 52V

$15.99

$

In Stock, Qty 6

0

23

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

24

Scag 451868

Weldment, Deck Lift LH

$116.99

$

Usually ships in 2-12 days

0

25

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

26

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

27

Scag 451867

Weldment, Deck Lift RH

$116.99

$

Usually ships in 2-12 days

0

28

Scag 482628

Chain, Deck Lift

$11.99

$

In Stock, Qty 15

0

29

Scag 483374

Spring, Deck Lift

$49.99

$

Usually ships in 2-12 days

0

30

Scag 43710

Spacer, Deck Lift Pivot

$17.99

$

In Stock, only 2 left!

0

31

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0

32

Scag 04105-01

Bolt, Head Socket 5/8-11 x 1-1/2"
(Superseded to 04108-04)

$2.99

$

Usually ships in 2-12 days

0

33

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 20+

0

34

Scag 424535

Pedal, Foot Bracket

$17.99

$

Usually ships in 2-12 days

0

35

Scag 424504

Foot Pedal, Height Adjustment

$14.99

$

In Stock, only 1 left!

0

36

Scag 483492

Grip, Deck Latch

$1.49

$

Usually ships in 2-12 days

0

37

Scag 491254

Weldment, Deck Latch

$54.99

$

In Stock, only 1 left!

0

38

Scag 04009-06

Bolt, Shoulder 1/2 x 1/2"

$3.99

$

Usually ships in 2-12 days

0

39

Scag 483453-10

Bearing

$1.49

$

In Stock, only 1 left!

0

40

Scag 483328

Linkage Assembly, Deck Lift

$69.99

$

Usually ships in 2-12 days

0

41

Scag 426579

Mounting Bracket, Fuel Tank Front

$45.99

$

Usually ships in 2-12 days

0

42

Scag 483498

Pin, Height Adjuster

$15.99

$

Usually ships in 2-12 days

0

43

Scag 43957

Sleeve

$3.49

$

Usually ships in 2-12 days

0
